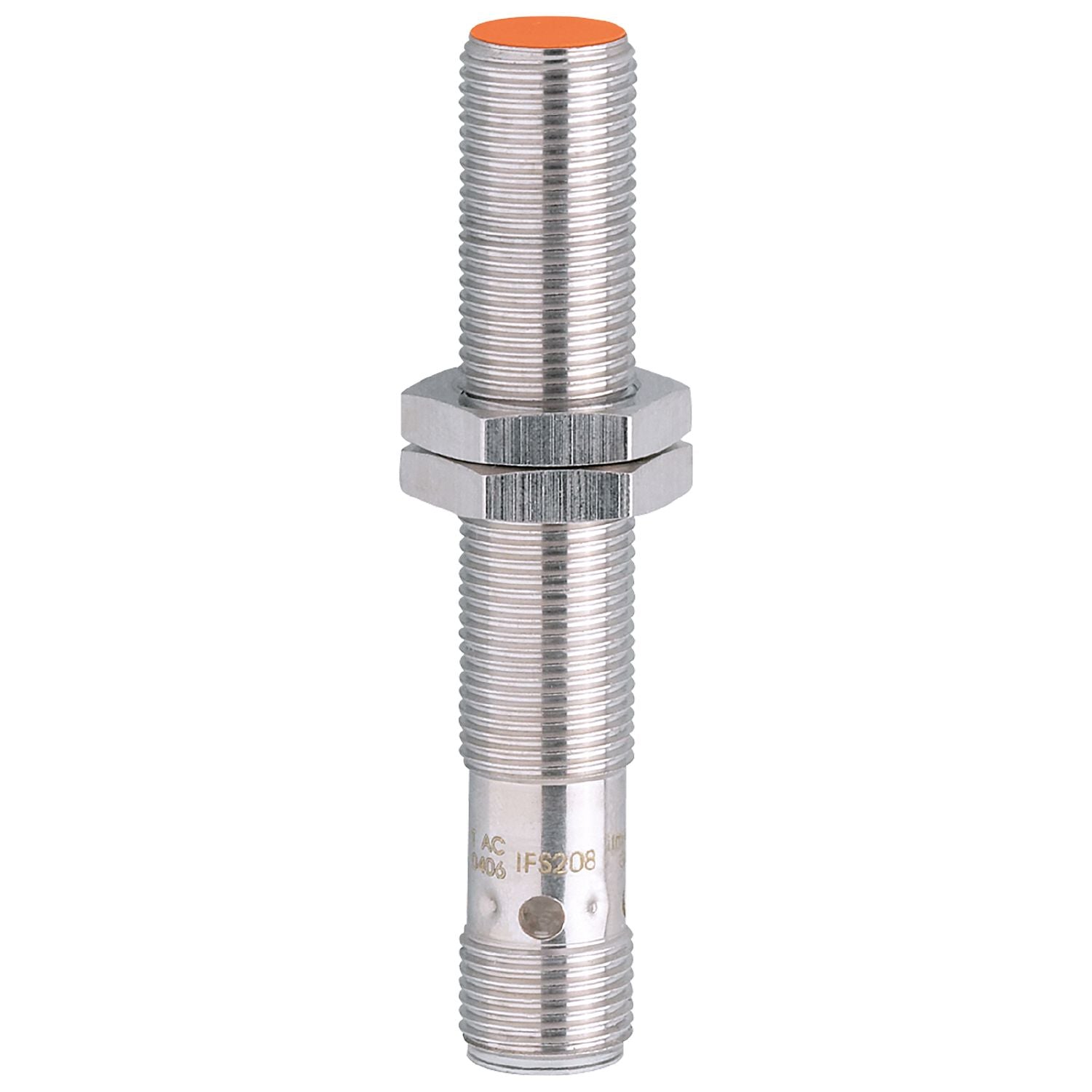

IF6029 - ifm threaded type Proximity Sensor

Name: IF6029 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IF6029
Price: 519.00 AED
Availability: InStock

SKUIF6029Brandifm

AED 519.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IF6029 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 15...30 DC supply voltage, and a PNP/NPN; (parameterisable) output with normally open / normally closed; (parameterisable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Output Type: PNP/NPN (Parameterisable)
Output Function: normally open / normally closed; (parameterisable)
Connection Type: 1 x M12; coding: A
Supply Voltage: 15...30 DC
IP Rating: IP65; IP66; IP67; IP68; IP69K
Mounting Type: Flush

Housing Material: housing: brass white bronze coated; sensing face: PBT orange; LED window: PEI; lock nuts: brass white bronze coated
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 200 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IF6029
Short Circuit Overload Protection: yes
