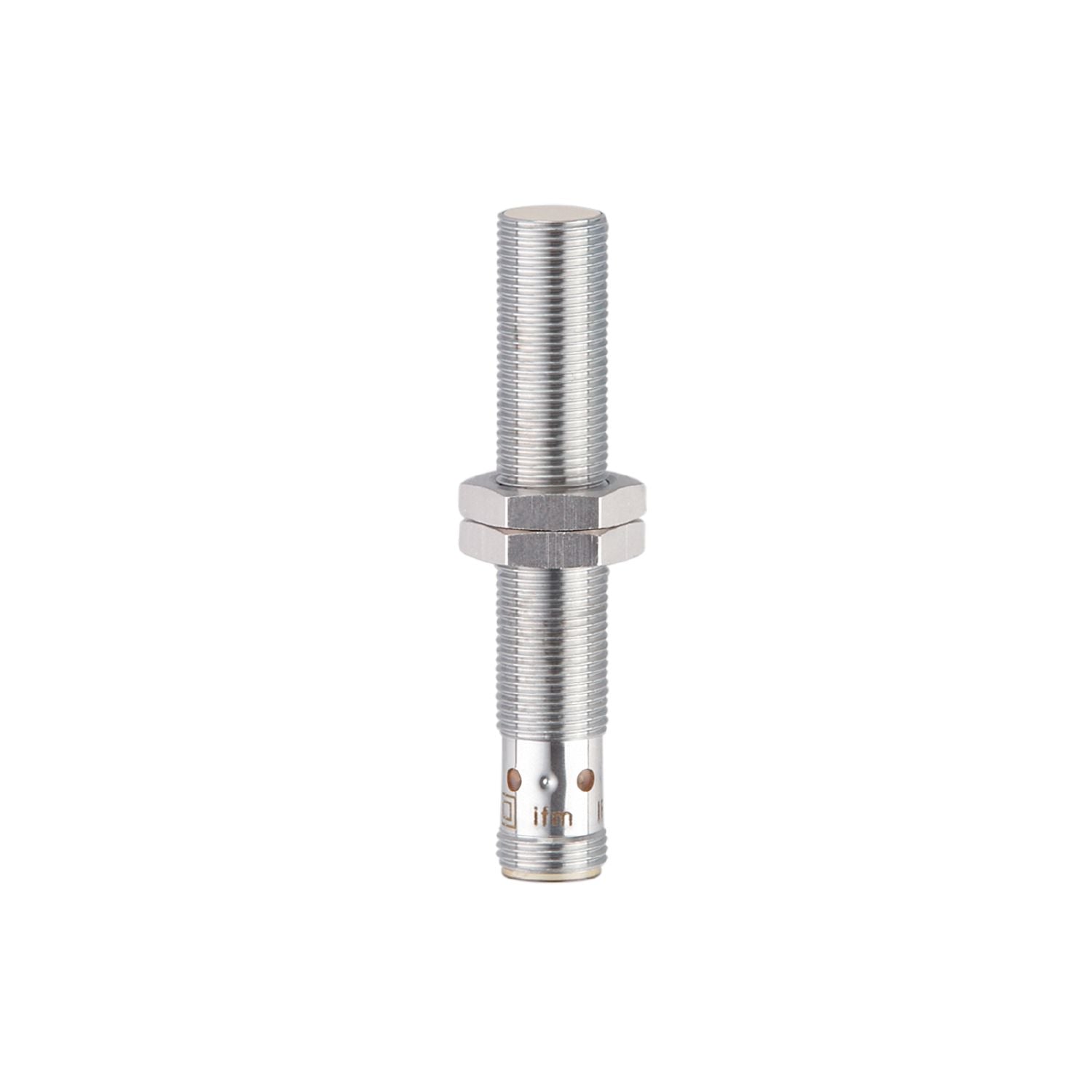

IF5948 - ifm threaded type Proximity Sensor

Name: IF5948 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IF5948
Price: 343.00 AED
Availability: InStock

SKUIF5948Brandifm

AED 343.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IF5948 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 4mm sensing range and a rugged threaded sleeve: brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with complementary switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 4
Output Function: complementary
Connection Type: 1 x M12; coding: A
Supply Voltage: 10...30 DC
IP Rating: IP67
Mounting Type: Flush

Housing Material: threaded sleeve: brass white bronze coated; sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -20°C
Switching Current: 200
Switching Frequency: 700 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 emission | class B
Series: IF5948
Short Circuit Overload Protection: yes
