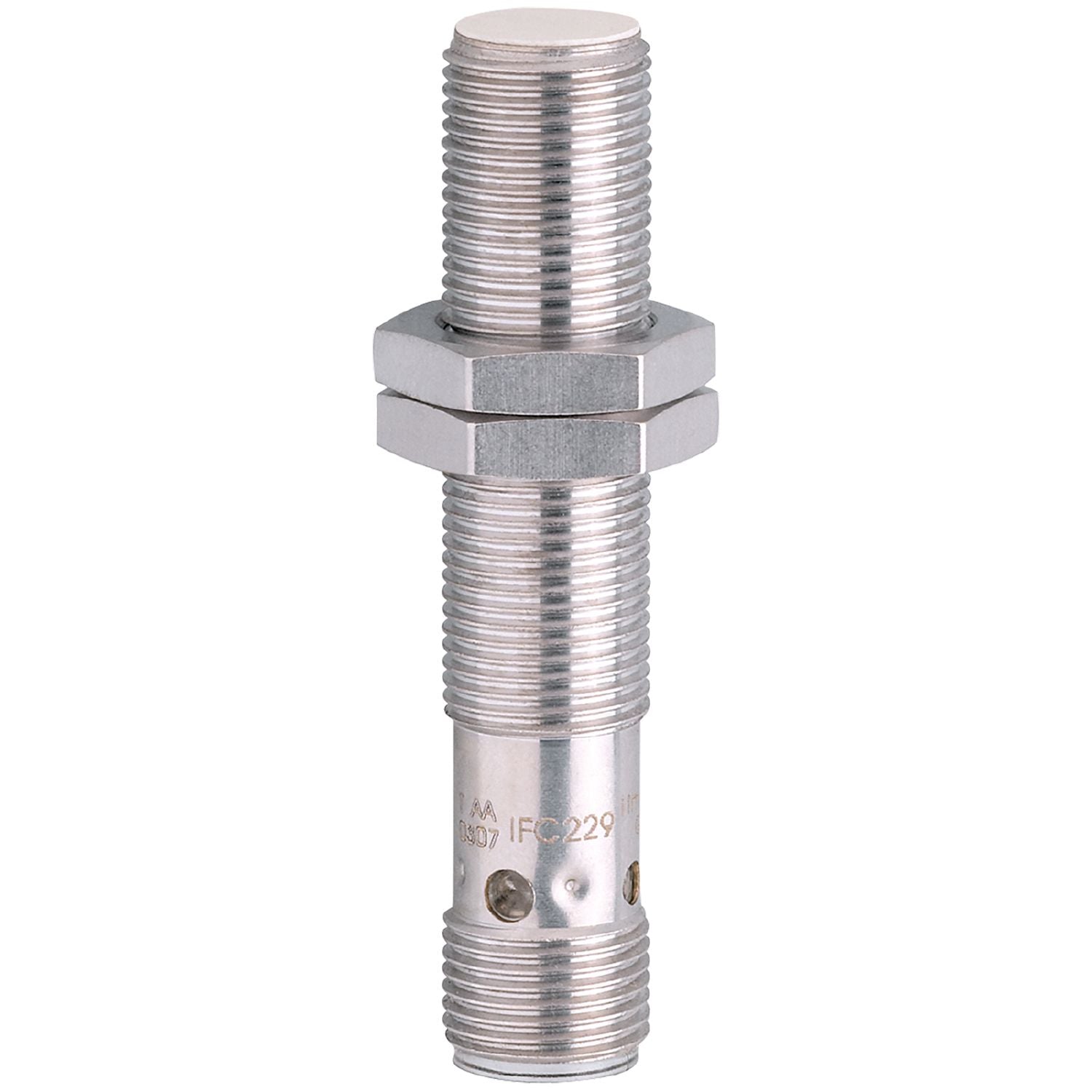

IF5775 - ifm threaded type Proximity Sensor

Name: IF5775 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IF5775
Price: 352.00 AED
Availability: InStock

SKUIF5775Brandifm

AED 352.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IF5775 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 4mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP68 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 4
Output Function: normally open
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 10...30 DC
IP Rating: IP68; ("Coolant")
Mounting Type: Flush

Housing Material: housing: brass white bronze coated; sensing face: LCP white; LED window: PEI; lock nuts: brass white bronze coated
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 700 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 60947-5-2 | ; EN 55011 | class B
Series: IF5775
Short Circuit Overload Protection: yes
