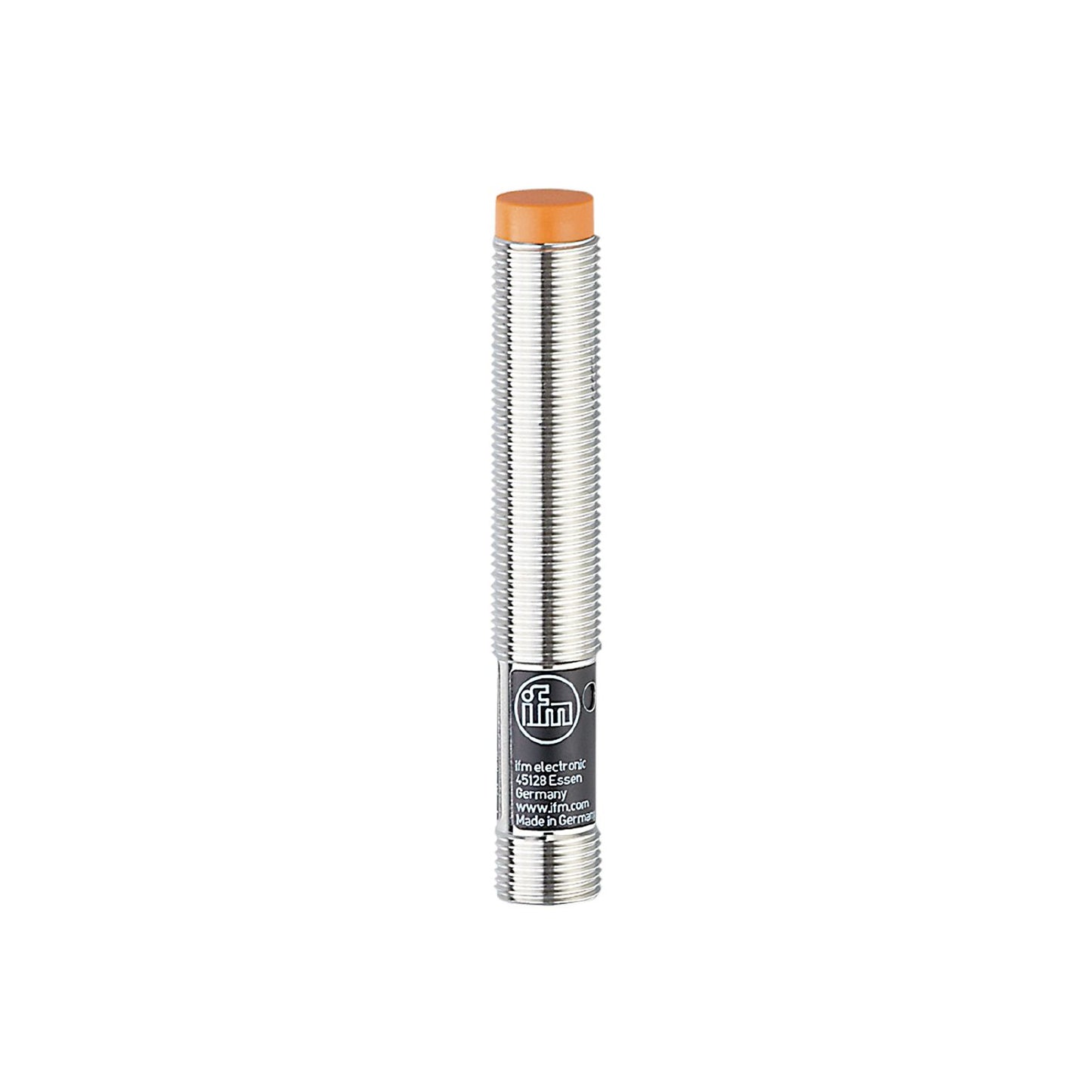

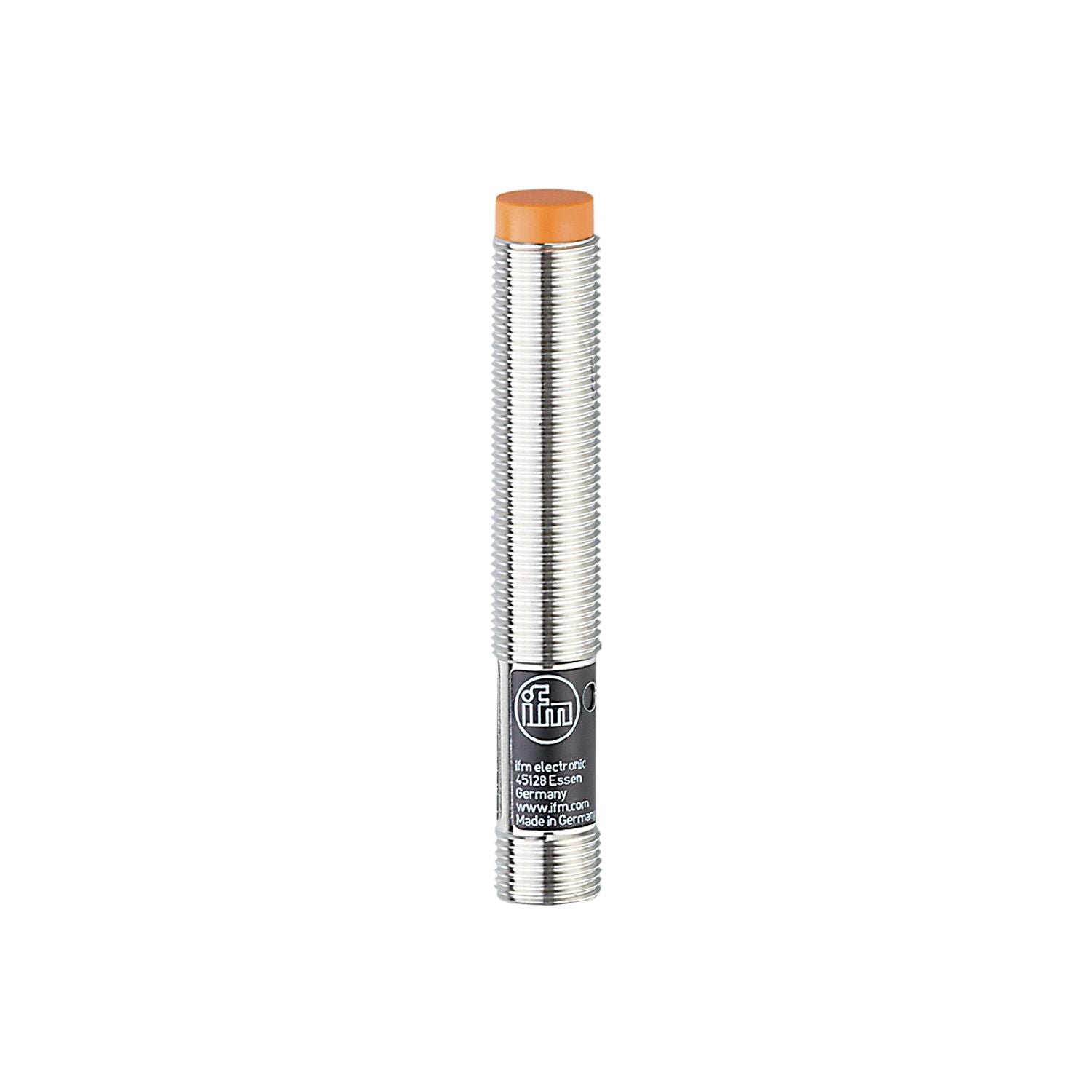

IF0300 - ifm threaded type Proximity Sensor

Name: IF0300 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IF0300
Price: 558.00 AED
Availability: InStock

SKUIF0300Brandifm

AED 558.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IF0300 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 4mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 20...250 AC supply voltage, and normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: threaded type
Detection Range: 4
Output Function: normally open
Connection Type: 1 x M12; coding: B
Supply Voltage: 20...250 AC
IP Rating: IP67

Mounting Type: Non-Flush
Housing Material: brass white bronze coated; sensing face: PBT natural; LED window: PBT natural; Nuts: brass white bronze coated
Minimum Operating Temperature: -25°C
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: IF0300
Short Circuit Overload Protection: no
