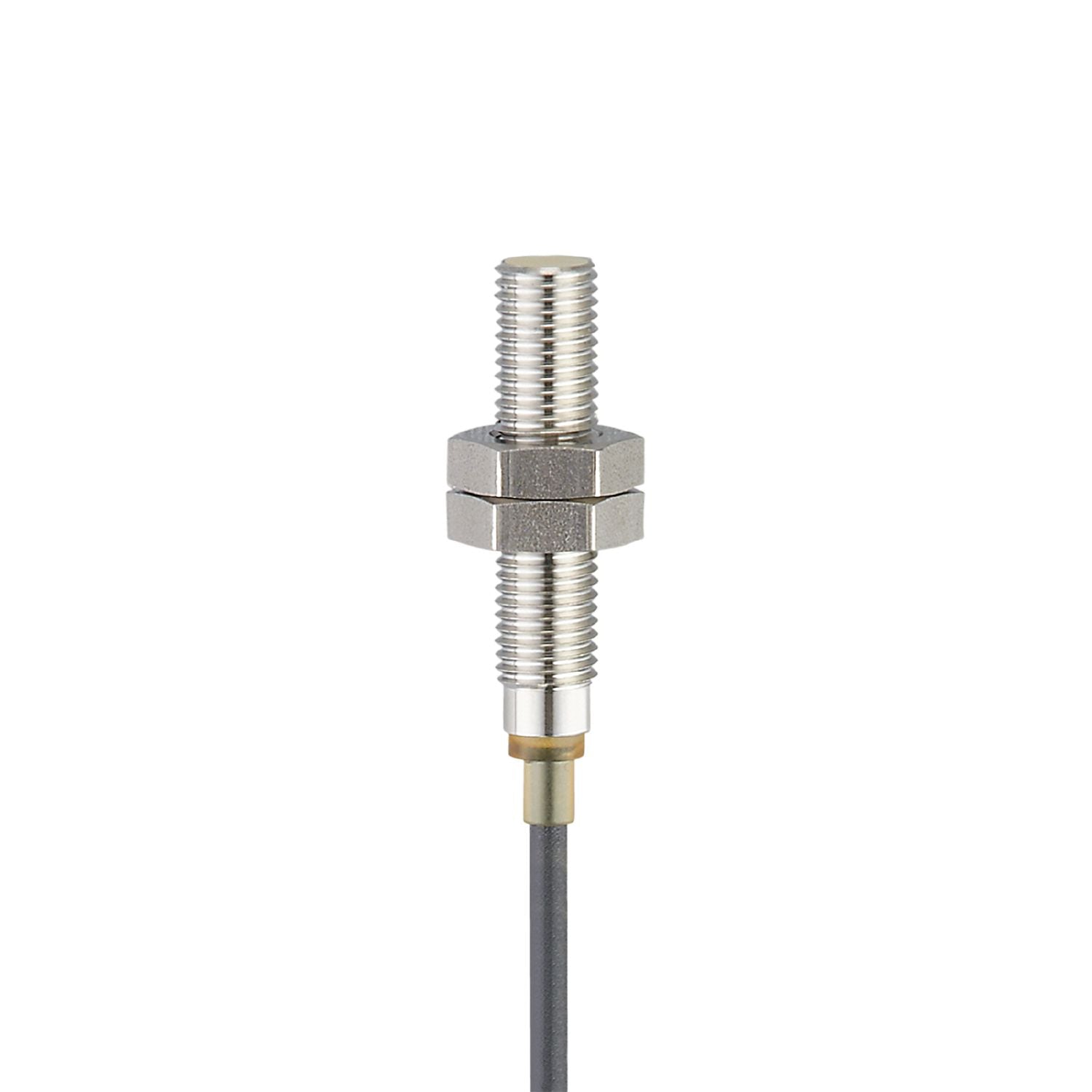

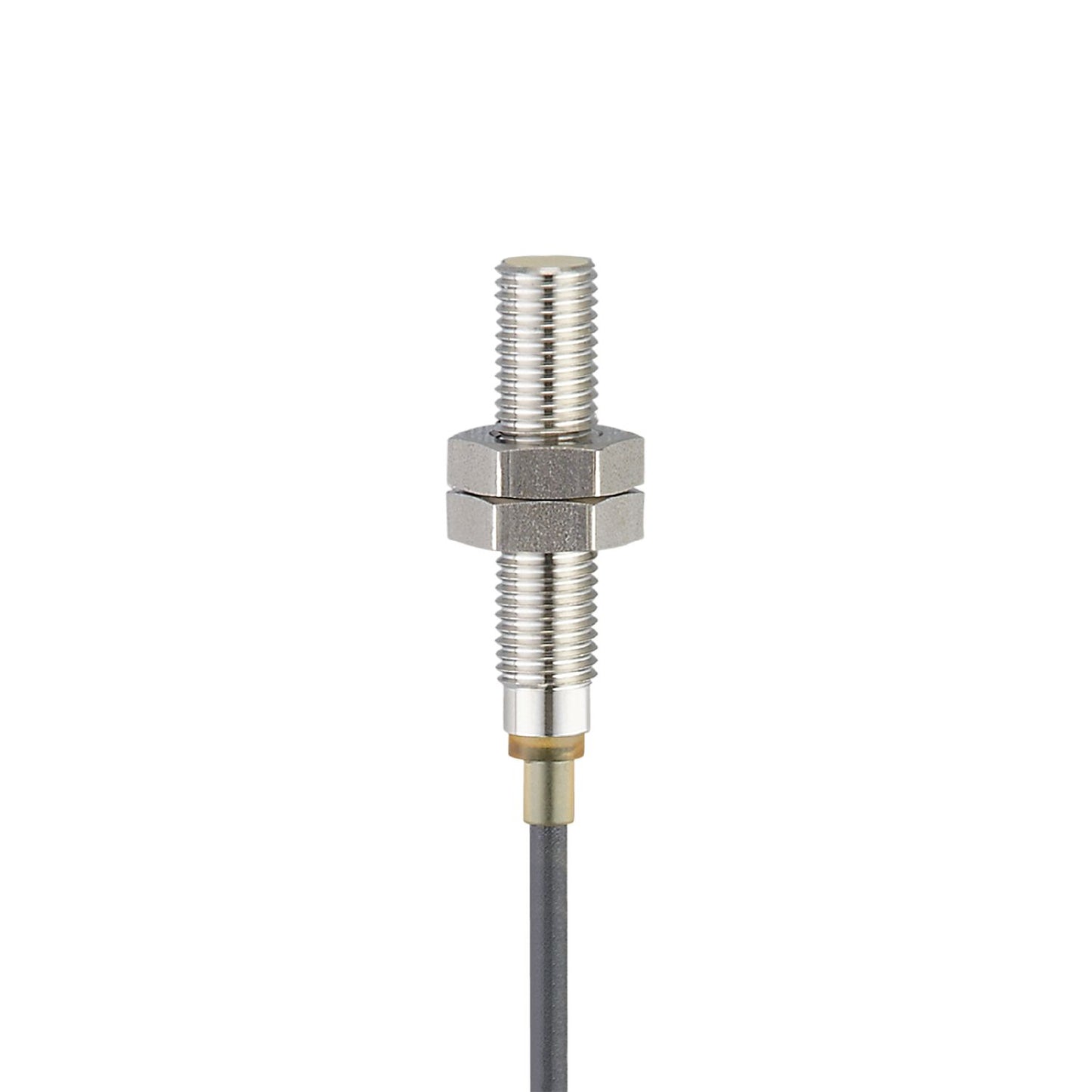

IES214 - ifm threaded type Proximity Sensor

Name: IES214 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IES214
Price: 327.00 AED
Availability: InStock

SKUIES214Brandifm

AED 327.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IES214 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 3mm sensing range and a rugged stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 3
Output Function: normally open
Connection Type: 1 x M12; coding: A
Cable Length: 0.3 m
Supply Voltage: 10...30 DC
IP Rating: IP65; IP66; IP67; IP68; IP69K

Mounting Type: Flush
Housing Material: stainless steel (316L/1.4404); sensing face: LCP white; LED window: PEI; lock nuts: stainless steel (316L/1.4404)
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -40°C
Switching Current: 100
Switching Frequency: 2000 Hz
Maximum Operating Temperature: 85°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IES214
Short Circuit Overload Protection: yes
