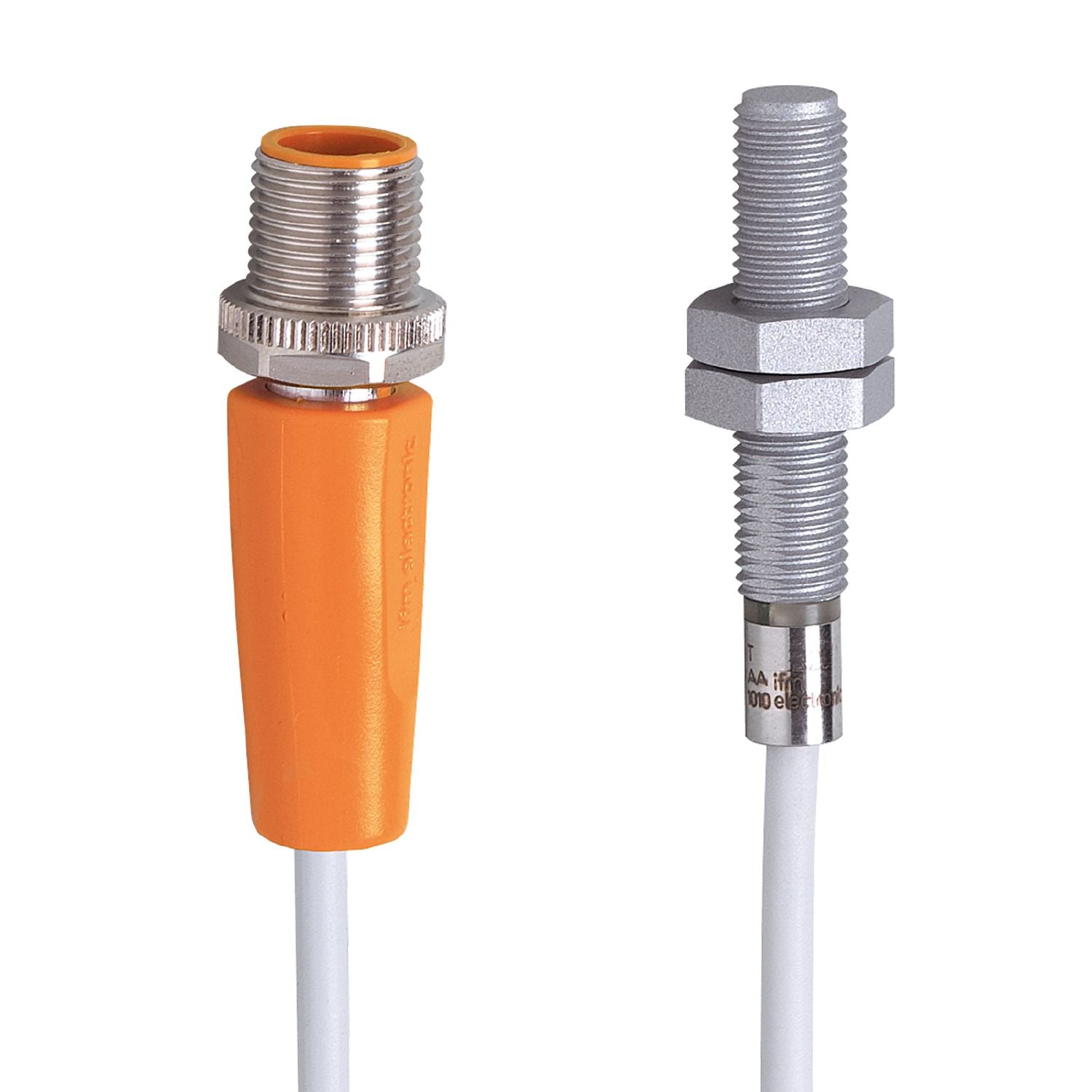

IER203 - ifm threaded type Proximity Sensor

Name: IER203 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IER203
Price: 474.00 AED
Availability: InStock

SKUIER203Brandifm

AED 474.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IER203 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 2mm sensing range and a rugged stainless steel (316L/1.4404) anti-spatter housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP/NPN output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: threaded type
Output Type: PNP/NPN
Detection Range: 2
Output Function: normally open
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Cable Length: 0.3 m
Supply Voltage: 10...36 DC
IP Rating: IP67

Mounting Type: Flush
Housing Material: housing: stainless steel (316L/1.4404) anti-spatter; sensing face: stainless steel (316L/1.4404) anti-spatter; lock nuts: stainless steel (316L/1.4404) anti-spatter
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 150 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IER203
Short Circuit Overload Protection: yes
