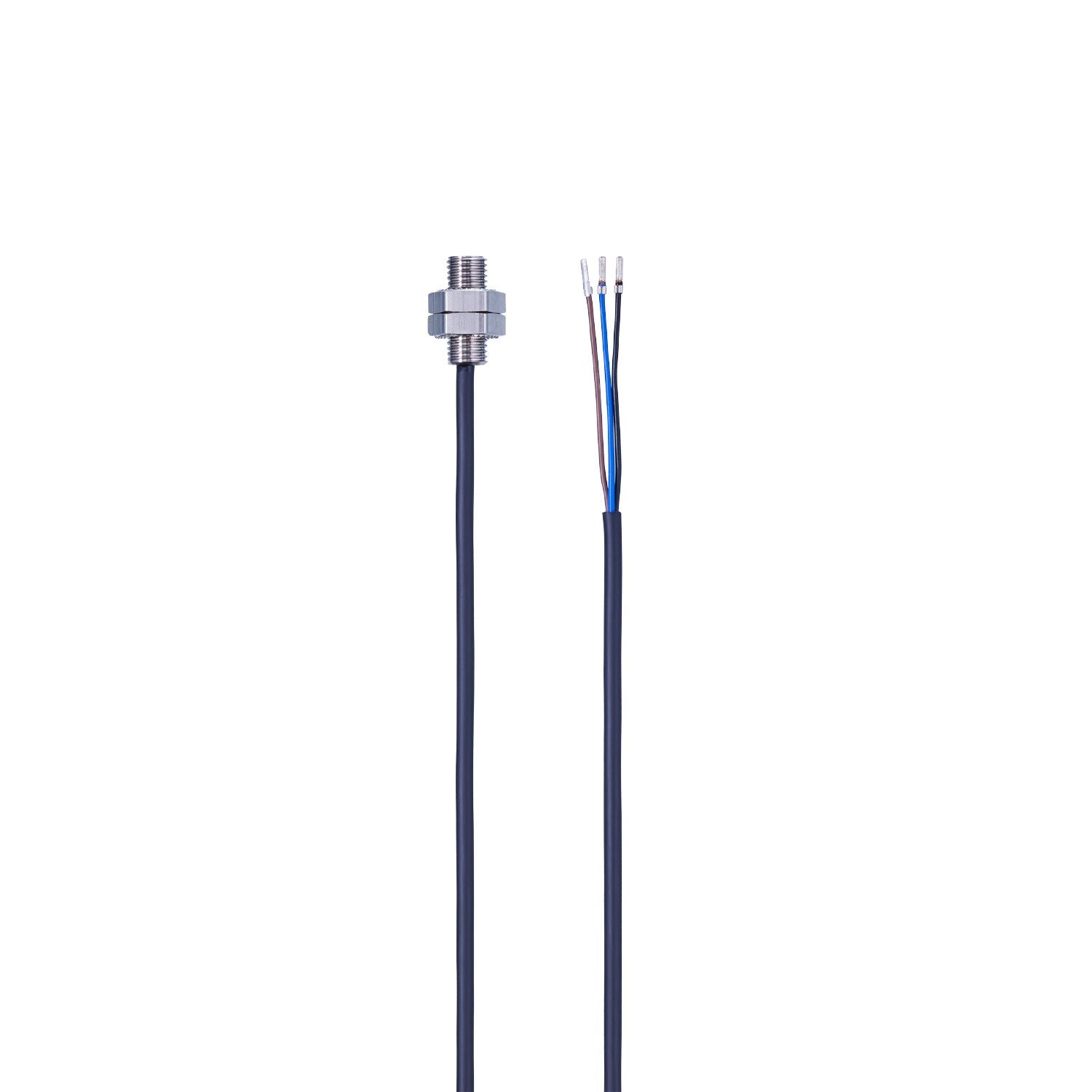

IE5460 - ifm threaded type Proximity Sensor

Name: IE5460 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IE5460
Price: 510.00 AED
Availability: InStock

SKUIE5460Brandifm

AED 510.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IE5460 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 0...1.2mm sensing range and a rugged brass nickel-plated housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC; ("supply class 2" to cULus) supply voltage, and a PNP output with normally closed switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 0...1.2
Output Function: normally closed
Cable Length: 2 m
Supply Voltage: 10...30 DC; ("supply class 2" to cULus)
IP Rating: IP67
Mounting Type: Flush

Housing Material: housing: brass nickel-plated; sensing face: LCP
Maximum DC Voltage: 1.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 4000 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: IE5460
Short Circuit Overload Protection: yes
