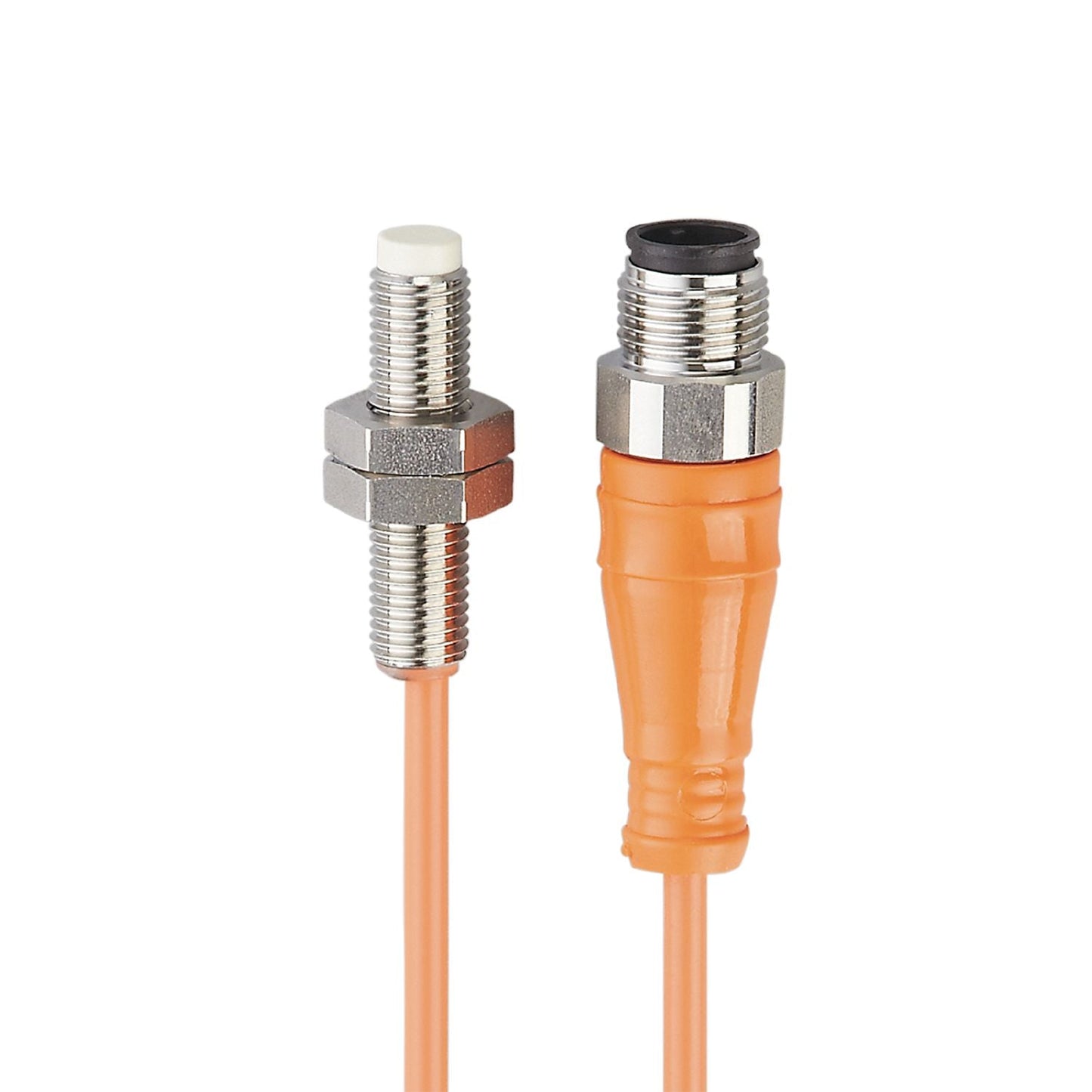

IE5406 - ifm threaded type Proximity Sensor

Name: IE5406 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IE5406
Price: 410.00 AED
Availability: InStock

SKUIE5406Brandifm

AED 410.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IE5406 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 3mm sensing range and a rugged stainless steel (316Ti/1.4571) housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 3
Output Function: normally open
Connection Type: 1 x M12; coding: A
Cable Length: 5 m
Supply Voltage: 10...36 DC
IP Rating: IP67

Mounting Type: Non-Flush
Housing Material: stainless steel (316Ti/1.4571); sensing face: PBT
Maximum DC Voltage: 2.5
Minimum Operating Temperature: 0°C
Switching Current: 200
Switching Frequency: 300 Hz
Maximum Operating Temperature: 70°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 3 V; EN 55011 emission | class B
Series: IE5406
Short Circuit Overload Protection: yes
