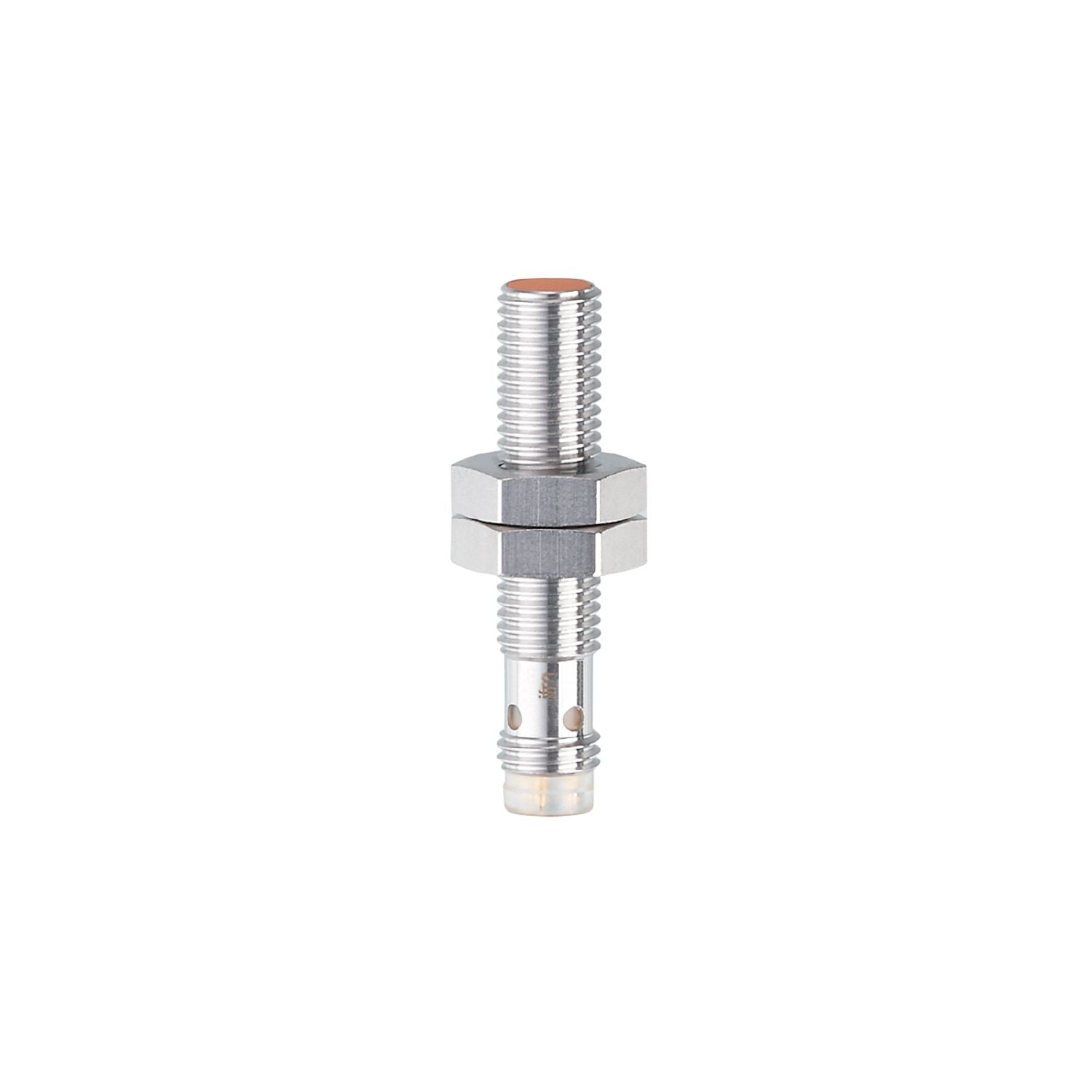

IE5338 - ifm threaded type Proximity Sensor

Name: IE5338 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IE5338
Price: 299.00 AED
Availability: InStock

SKUIE5338Brandifm

AED 299.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IE5338 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 3mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC supply voltage, and a PNP/NPN output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: threaded type
Output Type: PNP/NPN
Detection Range: 3
Output Function: normally open
Connection Type: 1 x M8; coding: A
Supply Voltage: 10...30 DC
IP Rating: IP65; IP67; (with ifm socket duly screwed on)
Mounting Type: Flush

Housing Material: housing: brass white bronze coated; sensing face: LCP orange; LED window: PPSU; lock nuts: brass white bronze coated
Maximum DC Voltage: 3.5
Minimum Operating Temperature: 0°C
Switching Current: 100
Switching Frequency: 800 Hz
Maximum Operating Temperature: 60°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 55011 | class B
Series: IE5338
Short Circuit Overload Protection: yes
