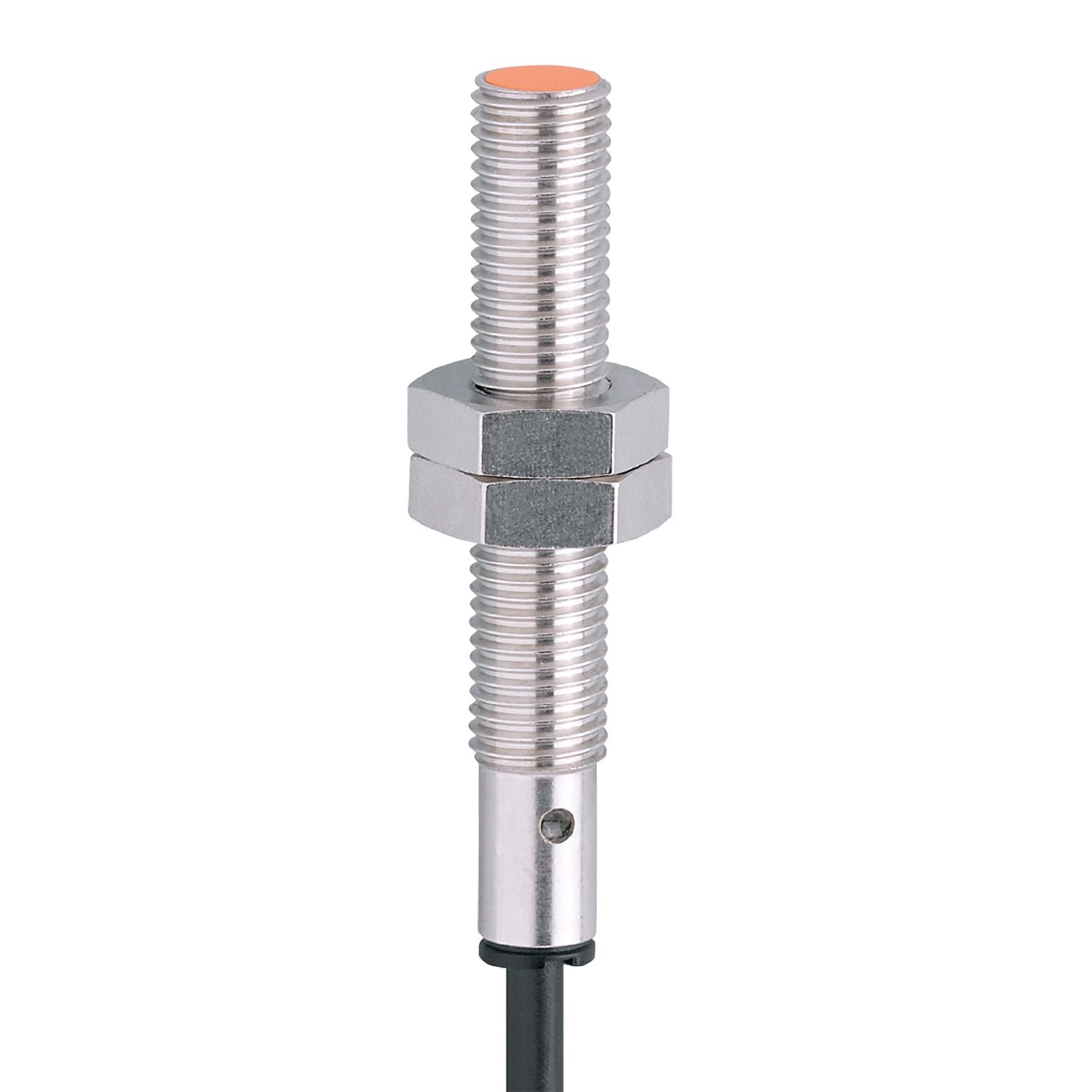

IE5320 - ifm threaded type Proximity Sensor

Name: IE5320 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IE5320
Price: 377.00 AED
Availability: InStock

SKUIE5320Brandifm

AED 377.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IE5320 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 1mm sensing range and a rugged brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 5...36 DC supply voltage, and a PNP/NPN output with normally open / normally closed; (selectable) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: threaded type
Output Type: PNP/NPN
Detection Range: 1
Output Function: normally open / normally closed; (selectable)
Cable Length: 0.14 m
Supply Voltage: 5...36 DC
IP Rating: IP67
Mounting Type: Flush

Housing Material: brass white bronze coated; sensing face: PBT; lock nuts: brass
Maximum DC Voltage: 4.6
Minimum Operating Temperature: -25°C
Switching Current: 200
Switching Frequency: 2000 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: IE5320
Short Circuit Overload Protection: yes
