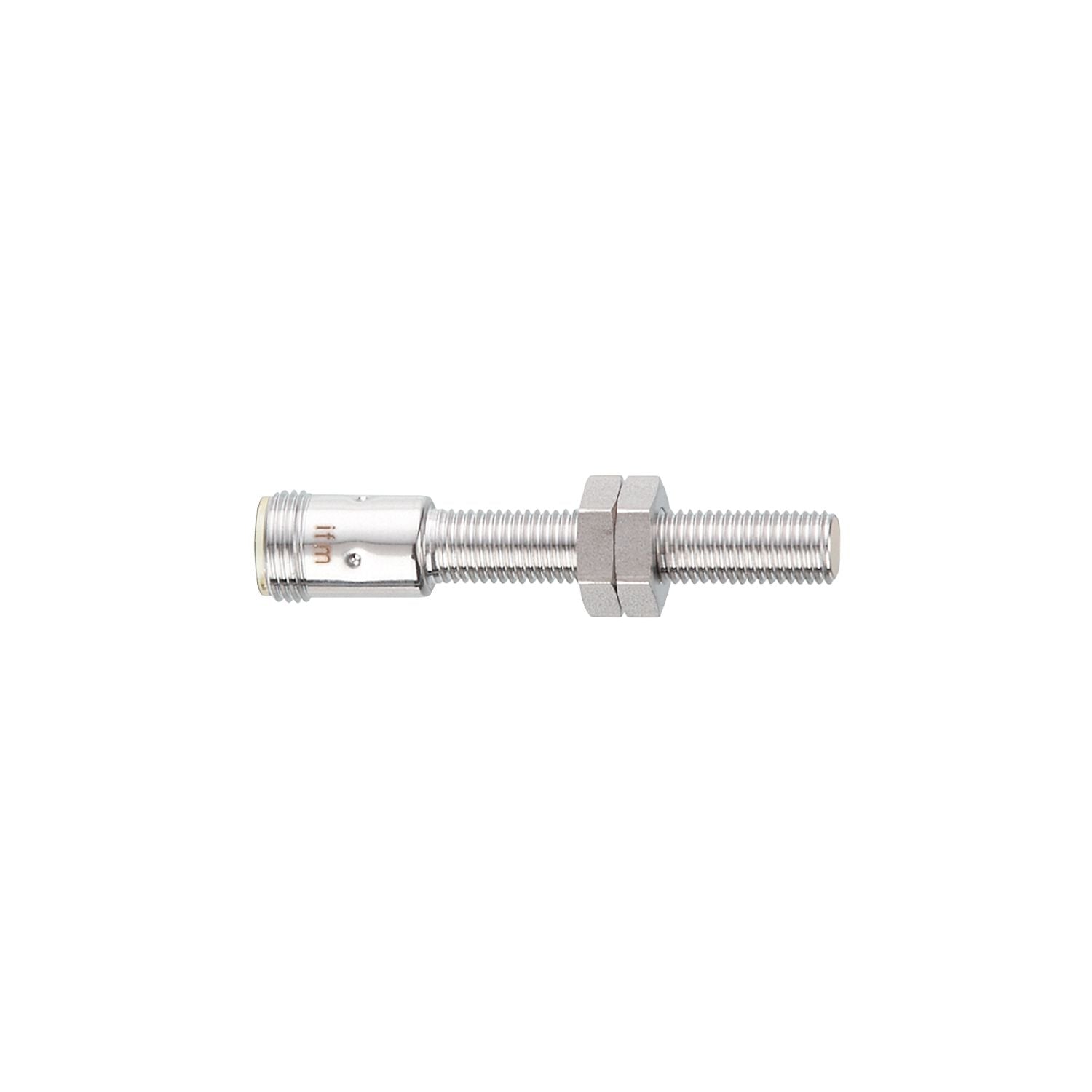

IE5215 - ifm threaded type Proximity Sensor

Name: IE5215 - ifm threaded type Proximity Sensor
Brand: ifm
SKU: IE5215
Price: 361.00 AED
Availability: InStock

SKUIE5215Brandifm

AED 361.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IE5215 is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 1mm sensing range and a rugged stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M8 x 1
Body Style: threaded type
Output Type: PNP
Detection Range: 1
Output Function: normally open
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 10...30 DC
IP Rating: IP67
Mounting Type: Flush

Housing Material: housing: stainless steel (316L/1.4404); sensing face: LCP white; lock nuts: stainless steel (316L/1.4404)
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 100
Switching Frequency: 2000 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | 4 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: IE5215
Short Circuit Overload Protection: yes
