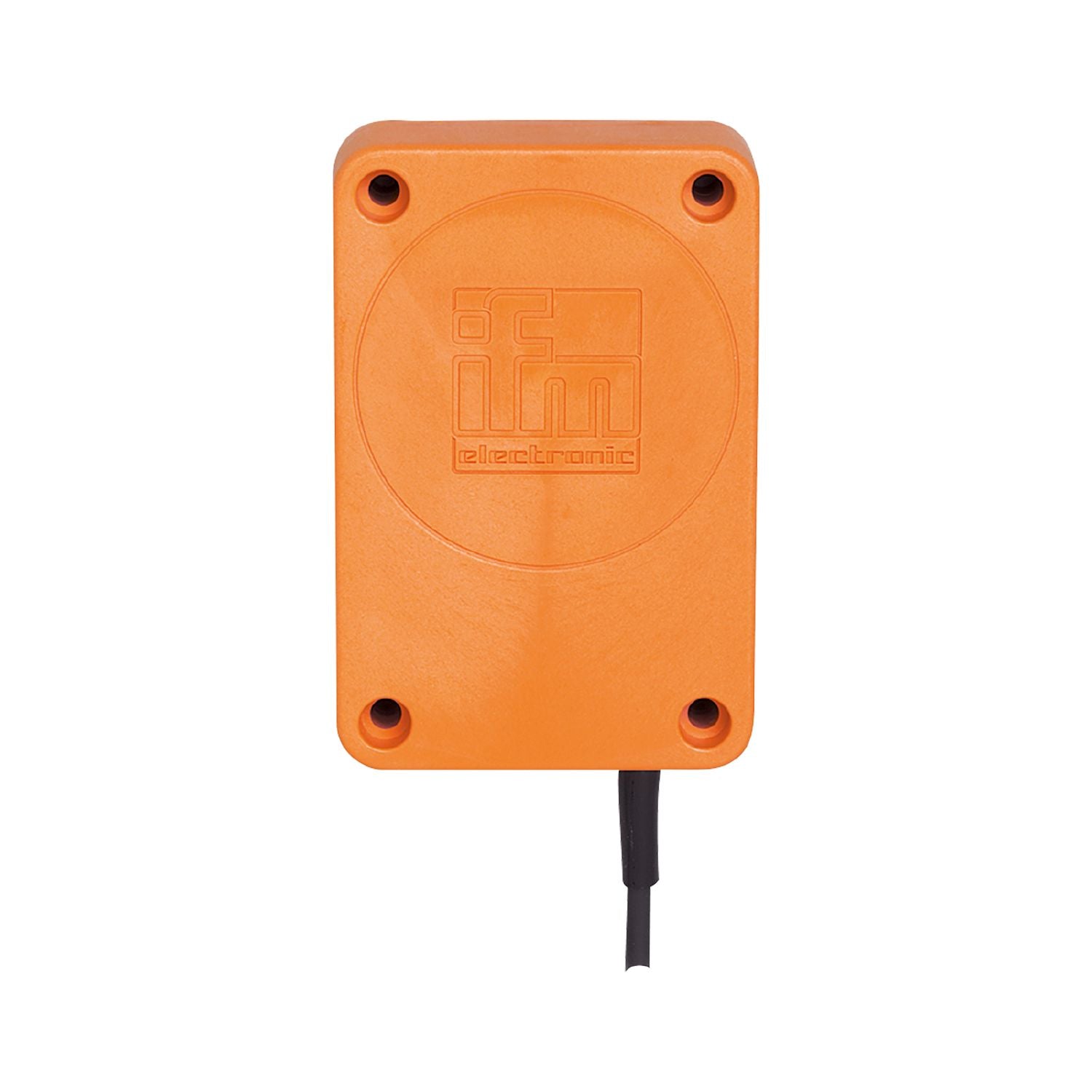

ID5033 - ifm rectangular Proximity Sensor

Name: ID5033 - ifm rectangular Proximity Sensor
Brand: ifm
SKU: ID5033
Price: 1182.00 AED
Availability: InStock

SKUID5033Brandifm

AED 1,182.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The ID5033 is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 50mm sensing range and a rugged PPE housing, this sensor is built to withstand harsh environments with an IP67 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally open switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Body Style: rectangular
Output Type: PNP
Detection Range: 50
Output Function: normally open
Cable Length: 6 m
Supply Voltage: 10...36 DC
IP Rating: IP67
Mounting Type: Non-Flush

Housing Material: PPE
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 250
Switching Frequency: 100 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | - CD / 8 kV AD; EN 61000-4-3 HF radiated | 10 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: ID5033
Short Circuit Overload Protection: yes
