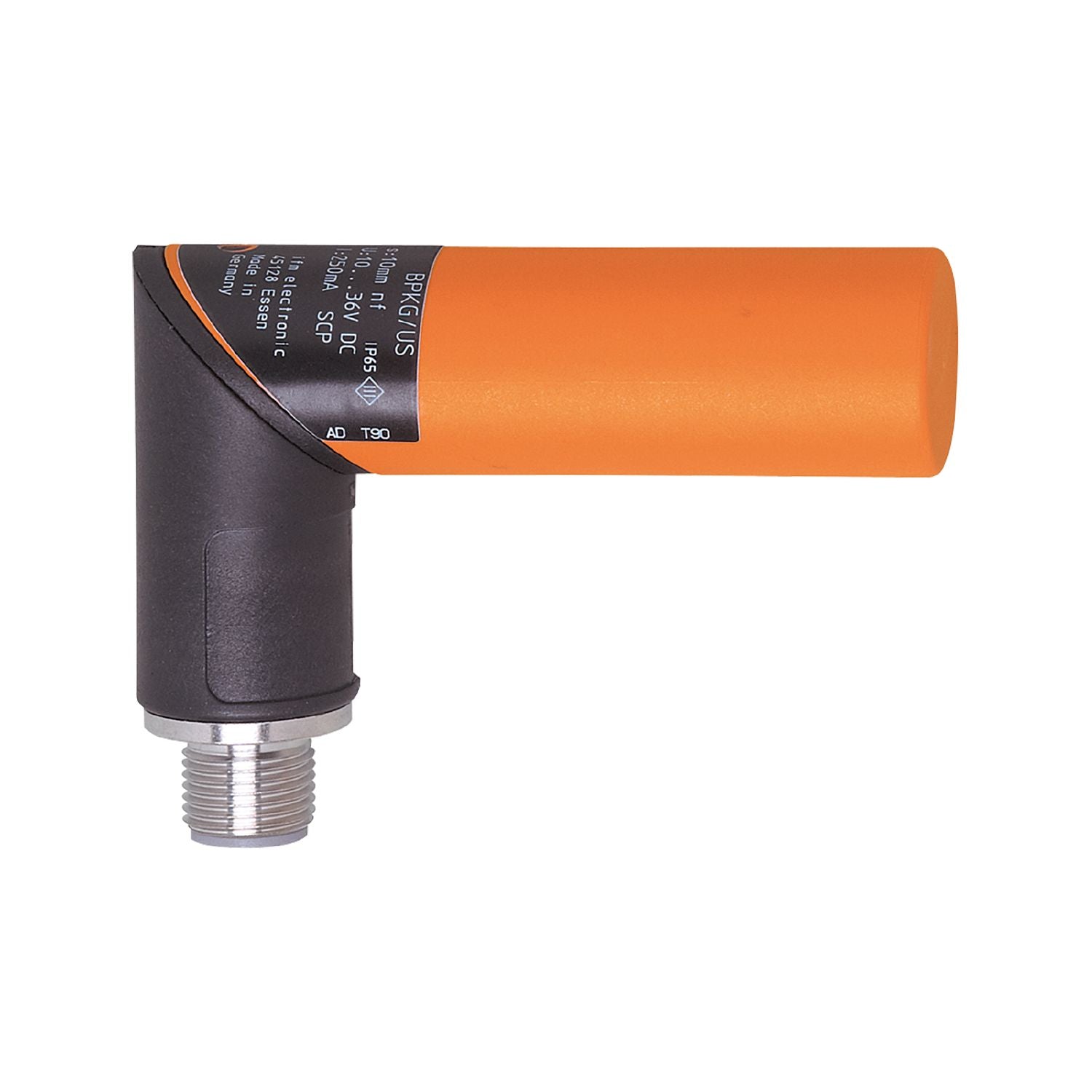

IA5136 - ifm cylindrical Proximity Sensor

Name: IA5136 - ifm cylindrical Proximity Sensor
Brand: ifm
SKU: IA5136
Price: 403.00 AED
Availability: InStock

SKUIA5136Brandifm

AED 403.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The IA5136 is a highly reliable cylindrical proximity sensor engineered by ifm for precision industrial automation. Featuring a 10mm sensing range and a rugged PBT housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...36 DC supply voltage, and a PNP output with normally closed switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M12 x 1
Body Style: cylindrical
Output Type: PNP
Detection Range: 10
Output Function: normally closed
Connection Type: 1 x M12; coding: A
Supply Voltage: 10...36 DC
IP Rating: IP65
Mounting Type: Non-Flush

Housing Material: PBT; LED window: PC
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Switching Current: 250
Switching Frequency: 300 Hz
Maximum Operating Temperature: 80°C
Standards Met: EN 61000-4-2 ESD | - CD / 8 kV AD; EN 61000-4-3 HF radiated | 3 V; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 0,5 kV line to line, Ri: 2 Ohm; EN 61000-4-6 HF conducted | 3 V; EN 55011 | class B
Series: IA5136
Short Circuit Overload Protection: yes
