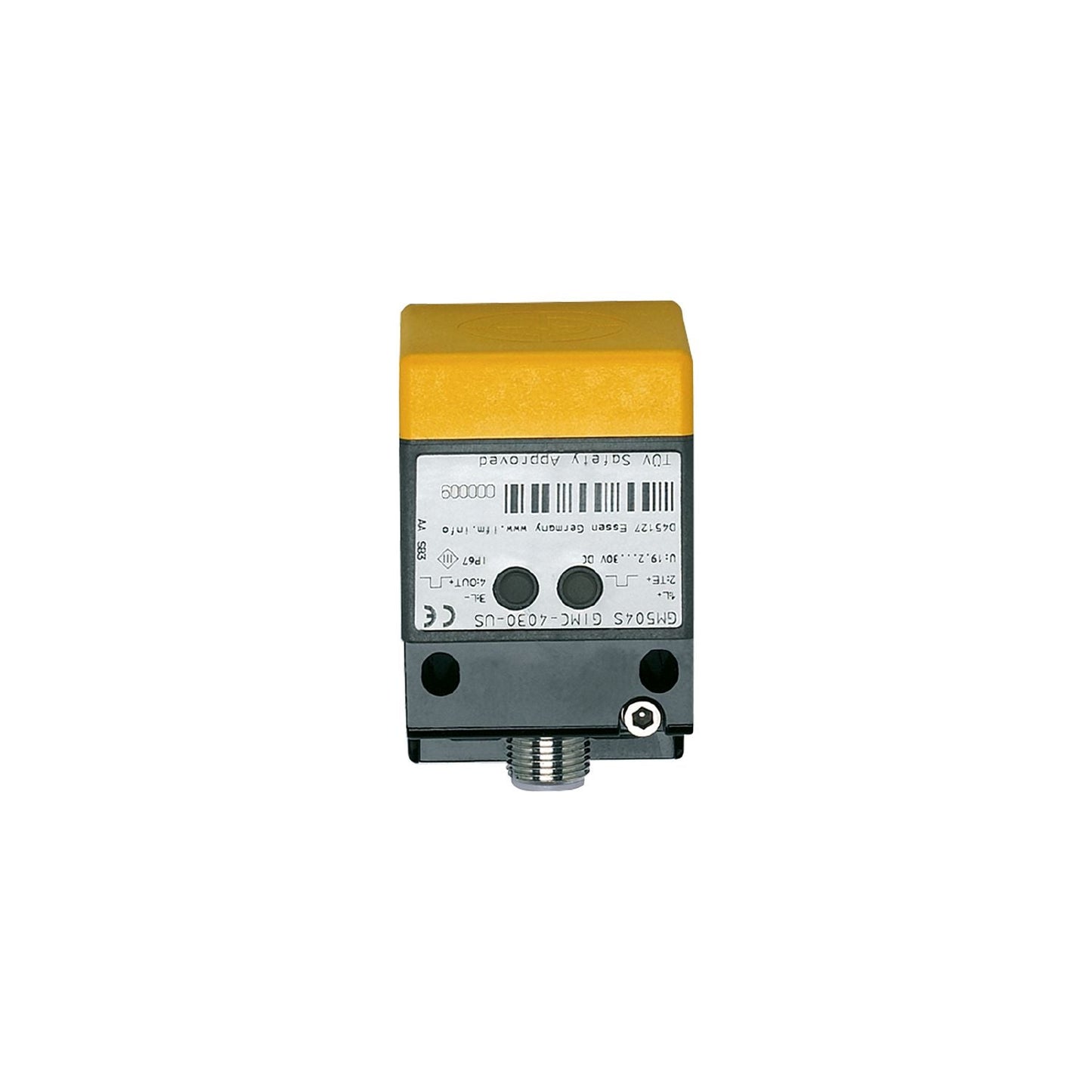

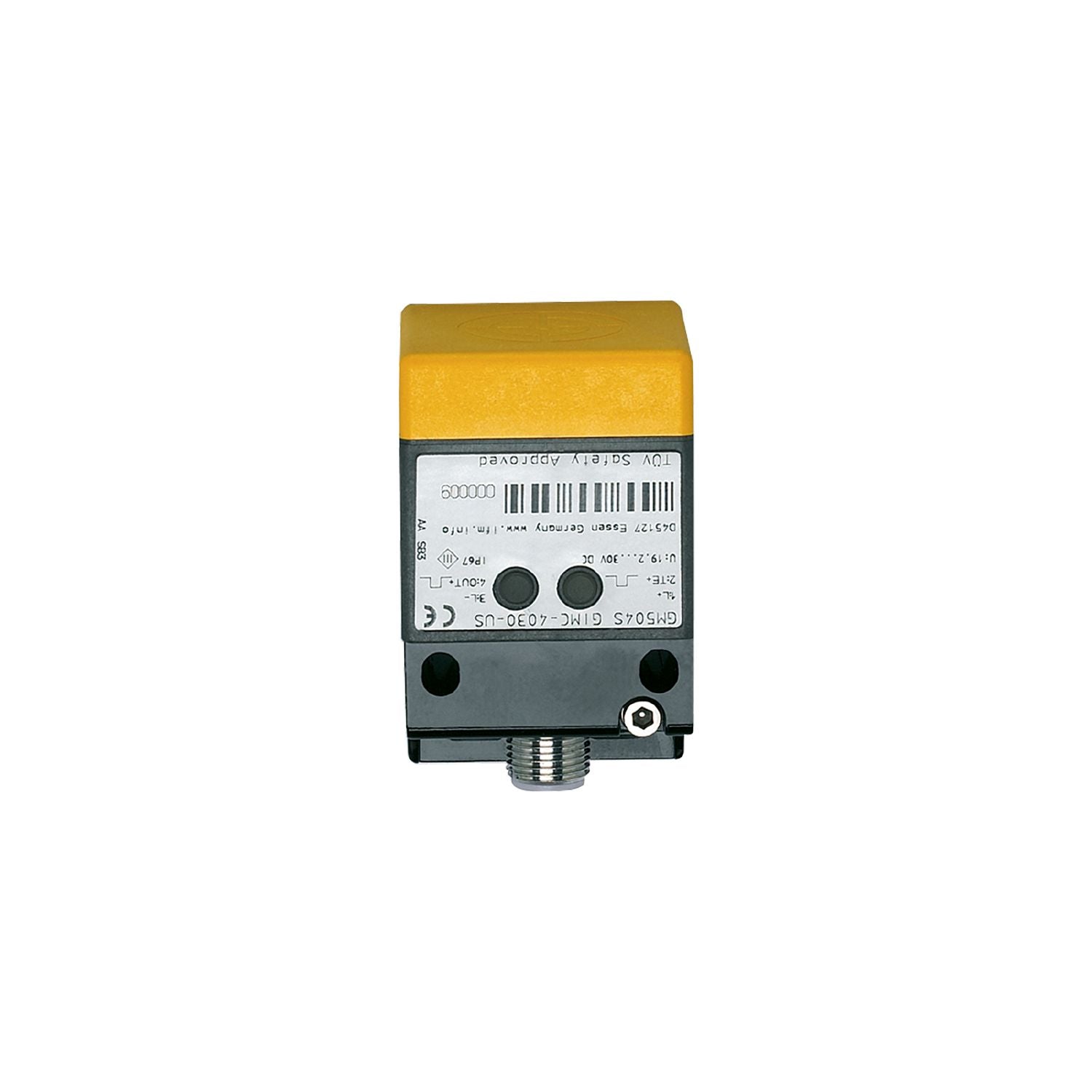

GM705S - ifm rectangular Proximity Sensor

Name: GM705S - ifm rectangular Proximity Sensor
Brand: ifm
SKU: GM705S
Price: 1402.00 AED
Availability: InStock

SKUGM705SBrandifm

AED 1,402.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The GM705S is a highly reliable rectangular proximity sensor engineered by ifm for precision industrial automation. Featuring a 4...20mm sensing range and a rugged PPE housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 19.2...30 DC supply voltage, and a PNP output with 2 x OSSD (A1 and A2) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Brand: ifm
Thread Size: M12 x 1
Body Style: rectangular
Output Type: PNP
Detection Range: 4...20
Output Function: 2 x OSSD (A1 and A2)
Digital Switching Output Type: Interface type C class 0
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 19.2...30 DC

IP Rating: IP65; IP67
Mounting Type: Non-Flush
Housing Material: PPE; diecast zinc
Maximum DC Voltage: 2.5; (100 mA)
Minimum Operating Temperature: 10°C
Maximum Operating Temperature: 40°C
Standards Met: IEC 60947-5-2 | ; IEC 60947-5-3 | ; EN 60947-5-3 | ; EN 61000-4-2 ESD | 6 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 20 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 61000-4-8 | 30 A/m; EN 55011 | class B
Series: GM705S
Short Circuit Overload Protection: yes
