• ifm - GI854S
1 1

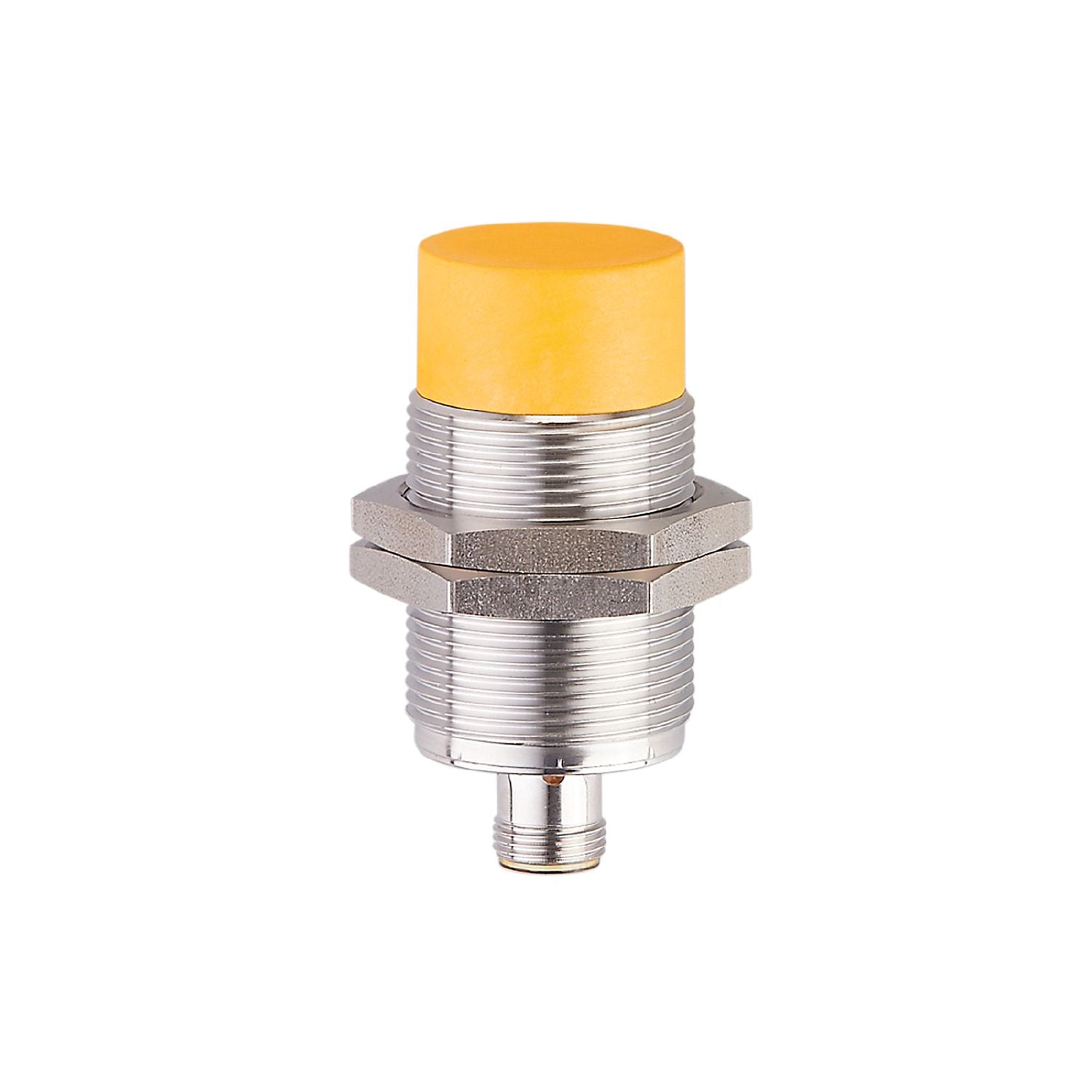

GI854S - ifm threaded type Proximity Sensor

GI854S - ifm threaded type Proximity Sensor

SKUGI854SBrandifm
AED 558.00
AED 558.00
Sale Sold out
Shipping calculated at checkout.

The GI854S is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a > 21.5mm sensing range and a rugged threaded sleeve: brass white bronze coated housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 8...32 DC supply voltage, and a PNP output with 2 x OSSD (A1 and A2) switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details
ParameterValue
Brand
ifm
Thread Size
M30 x 1.5
Body Style
threaded type
Output Type
PNP
Detection Range
> 21.5
Output Function
2 x OSSD (A1 and A2)
Digital Switching Output Type
Interface type C class 1
Connection Type
1 x M12; coding: A; Contacts: gold-plated
Supply Voltage
8...32 DC
IP Rating
IP65; IP67; IP68; IP69K; (with ifm socket duly screwed on)
ParameterValue
Mounting Type
Non-Flush
Housing Material
threaded sleeve: brass white bronze coated; sensing face: LCP; LED window: PEI; lock nuts: brass white bronze coated
Maximum DC Voltage
2.5; (30 mA)
Minimum Operating Temperature
-40°C
Switching Current
50
Switching Frequency
10 Hz
Maximum Operating Temperature
85°C
Standards Met
industrial environments | ; EN 60947-5-3 | ; EN 61000-4-2 ESD | 6 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 20 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 61000-4-8 | 30 A/m 50/60 Hz / 1000 A/m 0 Hz; EN 55011 | class B; mobile applications | only for operation with central load-dump suppression (58 V) / not for active operation during motor start phase in 12 V systems; ISO 10605 ESD | 8 kV CD / 15 kV AD; ISO 11452-2, ISO 11452-5 radiated immunity | 100 V/m; ISO 7637-2, ISO 16750-2 conducted immunity | 12 V / 24 V; pulse | 1 2a 3a 3b 4 5b; severity level | III III III III III III 58V; failure criterion | B B B A A C/B A; EN 55025 |
Series
GI854S
Short Circuit Overload Protection
yes
