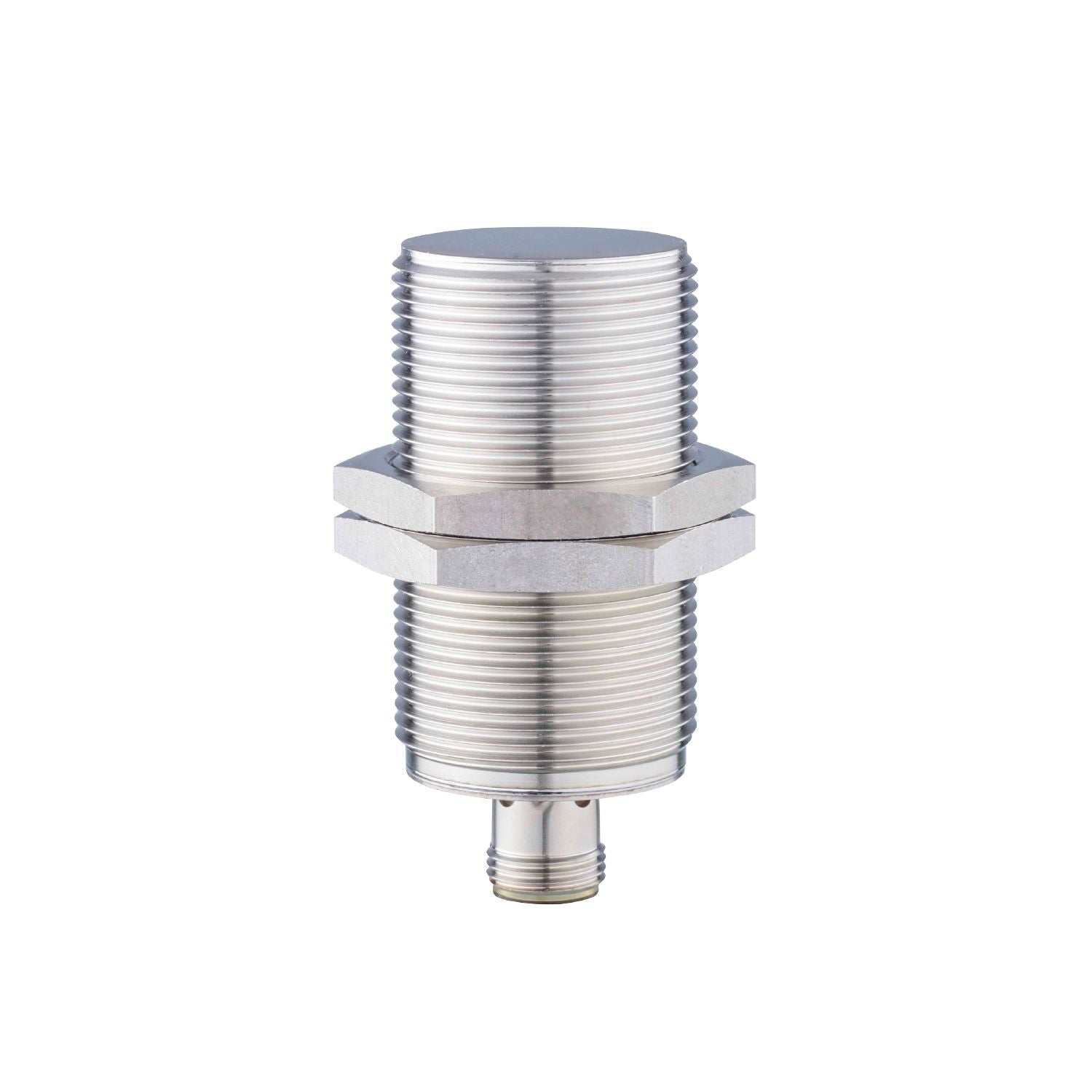

GI762S - ifm threaded type Proximity Sensor

Name: GI762S - ifm threaded type Proximity Sensor
Brand: ifm
SKU: GI762S
Price: 724.00 AED
Availability: InStock

SKUGI762SBrandifm

AED 724.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The GI762S is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 0...6mm sensing range and a rugged threaded sleeve: stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 10...30 DC supply voltage, and a PNP output, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: PNP
Detection Range: 0...6
Digital Switching Output Type: Interface type C class 1
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 10...30 DC
IP Rating: IP65; IP66; IP67; IP68; IP69K

Mounting Type: Flush
Housing Material: threaded sleeve: stainless steel (316L/1.4404); sensing face: stainless steel (316L/1.4404); LED window: PEI; LED Sealing: PU; lock nuts: stainless steel (316L/1.4404)
Maximum DC Voltage: 2.5
Minimum Operating Temperature: -25°C
Maximum Operating Temperature: 100°C
Standards Met: industrial environments | ; EN 60947-5-3 | ; EN 61000-4-2 ESD | 6 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 20 V/m 80...1000 MHz; EN 61000-4-3 HF radiated | 10 V/m 1,4...2,0 GHz / 3 V/m 2,0...6,0 GHz; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 61000-4-8 | 30 A/m 50/60 Hz / 1000 A/m 0 Hz; EN 55011 | class B
Series: GI762S
Short Circuit Overload Protection: yes
