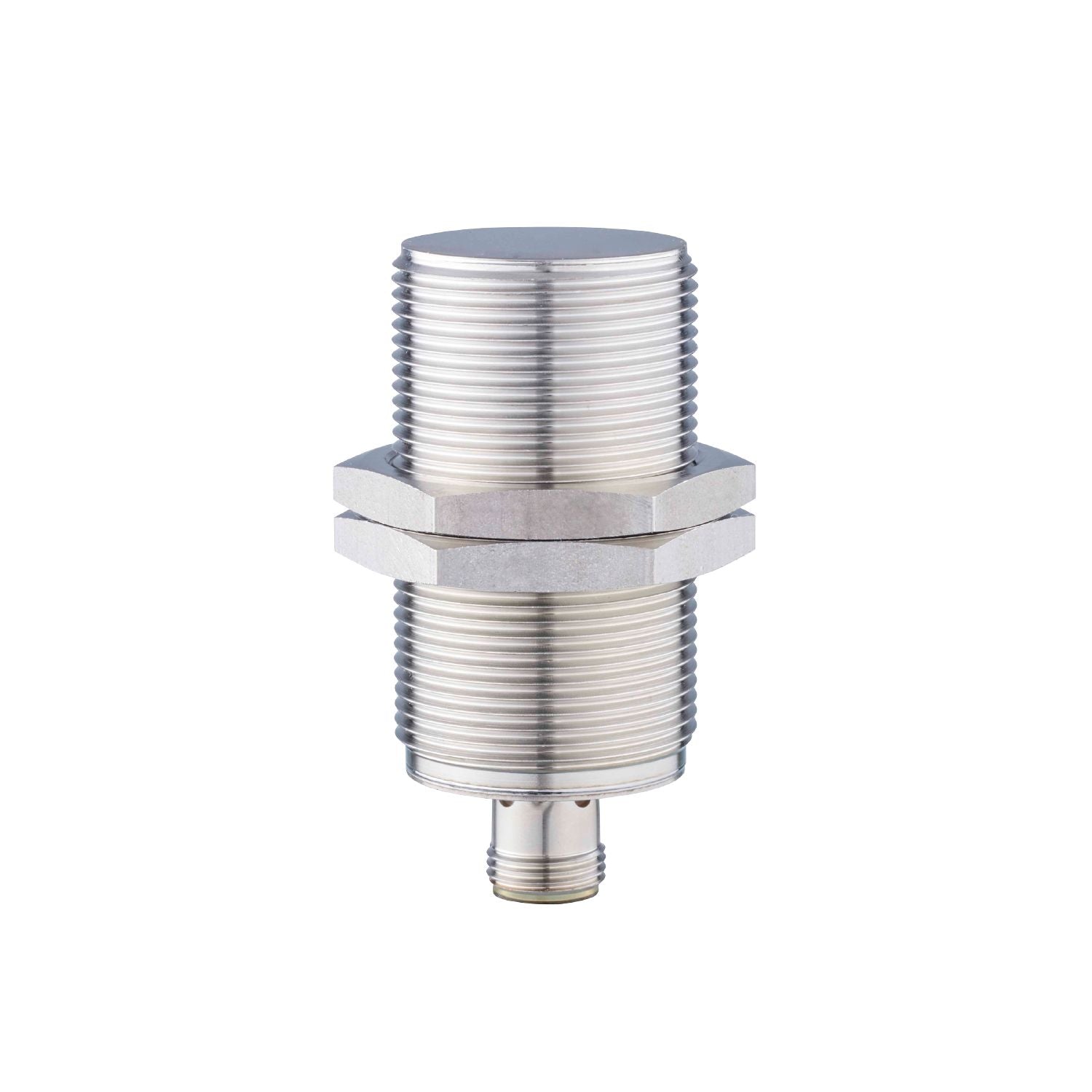

GI761S - ifm threaded type Proximity Sensor

GI761S - ifm threaded type Proximity Sensor

SKUGI761SBrandifm
AED 724.00
AED 724.00
Sale Sold out
Shipping calculated at checkout.

The GI761S is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 0...6mm sensing range and a rugged threaded sleeve: stainless steel (316L/1.4404) housing, this sensor is built to withstand harsh environments with an IP65 protection rating. It operates on a 9...32 DC supply voltage, and a PNP output, making it an ideal proximity switch for your manufacturing and control systems.

View full details
ParameterValue
Brand
ifm
Thread Size
M30 x 1.5
Body Style
threaded type
Output Type
PNP
Detection Range
0...6
Digital Switching Output Type
Interface type C class 1
Connection Type
1 x M12; coding: A; Contacts: gold-plated
Supply Voltage
9...32 DC
IP Rating
IP65; IP66; IP67; IP68; IP69K
ParameterValue
Mounting Type
Flush
Housing Material
threaded sleeve: stainless steel (316L/1.4404); sensing face: stainless steel (316L/1.4404); LED window: PEI; LED Sealing: PU; lock nuts: stainless steel (316L/1.4404)
Maximum DC Voltage
2.5
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
85°C
Standards Met
industrial environments | ; EN 60947-5-3 | ; EN 61000-4-2 ESD | 6 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 20 V/m 80...1000 MHz; EN 61000-4-3 HF radiated | 10 V/m 1,4...2,0 GHz / 3 V/m 2,0...6,0 GHz; EN 61000-4-4 Burst | 2 kV; EN 61000-4-5 Surge | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 61000-4-8 | 30 A/m 50/60 Hz / 1000 A/m 0 Hz; EN 55011 | class B; mobile applications | only for operation with central load-dump suppression (58 V) / not for active operation during motor start phase in 12 V systems; ISO 10605 ESD | 8 kV CD / 15 kV AD; ISO 11452-2, ISO 11452-5 radiated immunity | 100 V/m 400...3000 MHz; ISO 7637-2, ISO 16750-2 conducted immunity | 12 V / 24 V; pulse | 1 2a 2b 3a 3b 4 5b; severity level | III III III III III III 58V; failure criterion | B A B A A C/B A/C; EN 55025 | class 3
Series
GI761S
Short Circuit Overload Protection
yes
