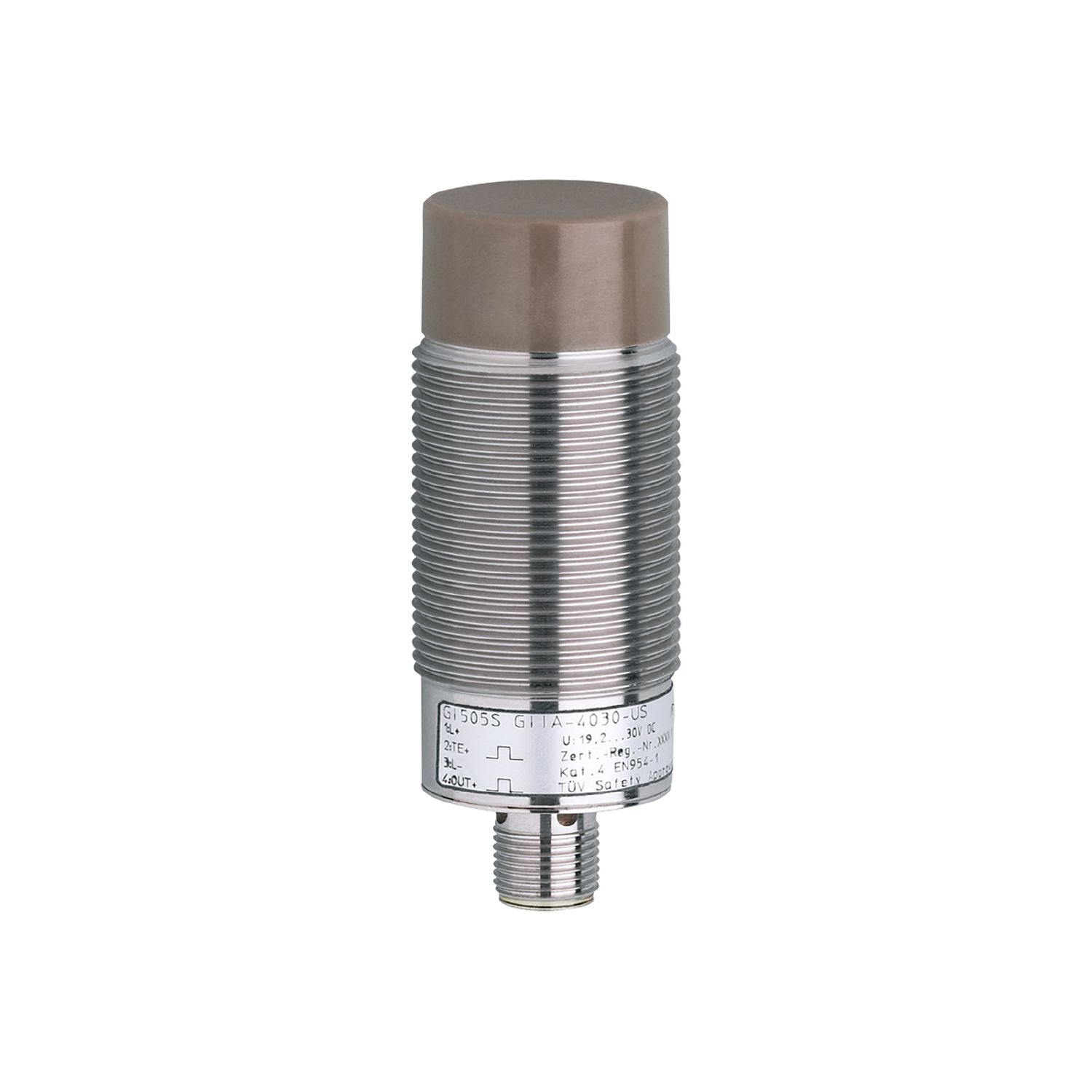

GI505S - ifm threaded type Proximity Sensor

Name: GI505S - ifm threaded type Proximity Sensor
Brand: ifm
SKU: GI505S
Price: 792.00 AED
Availability: InStock

SKUGI505SBrandifm

AED 792.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The GI505S is a highly reliable threaded type proximity sensor engineered by ifm for precision industrial automation. Featuring a 6...12mm sensing range and a rugged PEEK housing, this sensor is built to withstand harsh environments with an IP68 protection rating. It operates on a 19.2...30 DC supply voltage, and a Interface type B output with clock signal switching, making it an ideal proximity switch for your manufacturing and control systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Thread Size: M30 x 1.5
Body Style: threaded type
Output Type: Interface Type B
Detection Range: 6...12
Output Function: clock signal
Digital Switching Output Type: Interface type B
Connection Type: 1 x M12; coding: A; Contacts: gold-plated
Supply Voltage: 19.2...30 DC

IP Rating: IP68; IP69K; (to EN 60529)
Mounting Type: Non-Flush
Housing Material: PEEK; stainless steel; O-ring: EPDM
Minimum Operating Temperature: 10°C
Maximum Operating Temperature: 40°C
Standards Met: IEC 60947-5-2 | ; IEC 60947-5-3 | ; EN 61000-4-2 ESD | 6 kV CD / 8 kV AD; EN 61000-4-3 HF radiated | 20 V/m; EN 61000-4-4 Burst | 2 kV; EN 61000-4-6 HF conducted | 10 V; EN 61000-4-8 | 30 A/m; EN 55011 | class B
Series: GI505S
Short Circuit Overload Protection: yes
