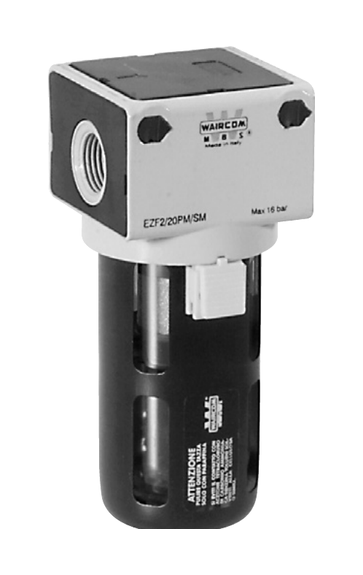

Waircom EZF3/20PM/SM - EZF G 3/8 Air Filter (20 µm Fine Filtration)

Waircom EZF3/20PM/SM - EZF G 3/8 Air Filter (20 µm Fine Filtration)

SKUEZF3/20PM/SMBrandWaircom
AED 152.00
AED 152.00
Sale Sold out
Shipping calculated at checkout.

The Waircom EZF3/20PM/SM is a high-performance inline pneumatic moisture and particulate filter from the clean air EZF range. Built inside a robust, corrosion-resistant cast aluminium alloy body with standard G 3/8 fluid line connections, it is engineered to house a fine 20 µm filtration element that separates water droplets and micro-contaminants. The unit comes standard with a clear, pm (metallic protection) inspection bowl for simple visual monitoring and features an accessible manual drainage valve.

View full details
ParameterValue
Brand
Waircom
Series
EZF
Port Size
G 3/8
Filtration
20 µm
Bowl Type
PM (Metallic protection)
Bowl Material
Glass stiffened polyamide (transparent bowl protection, on request)
ParameterValue
Condensate Drainage
Manual
Body Material
Aluminium alloy
Filtering Element
Sintered polyethylene
Max Pressure
16 bar
Working Temperature
0 ÷ +50 (–10 with dry air)
Max Condensate
23 cm³
