IFM E1D100 - Mounting Fixture, For O1D laser sensors, Anodised aluminium

IFM E1D100 - Mounting Fixture, For O1D laser sensors, Anodised aluminium

SKUE1D100BrandIFM
AED 691.00
AED 691.00
Sale Sold out
Shipping calculated at checkout.

Only 1 left

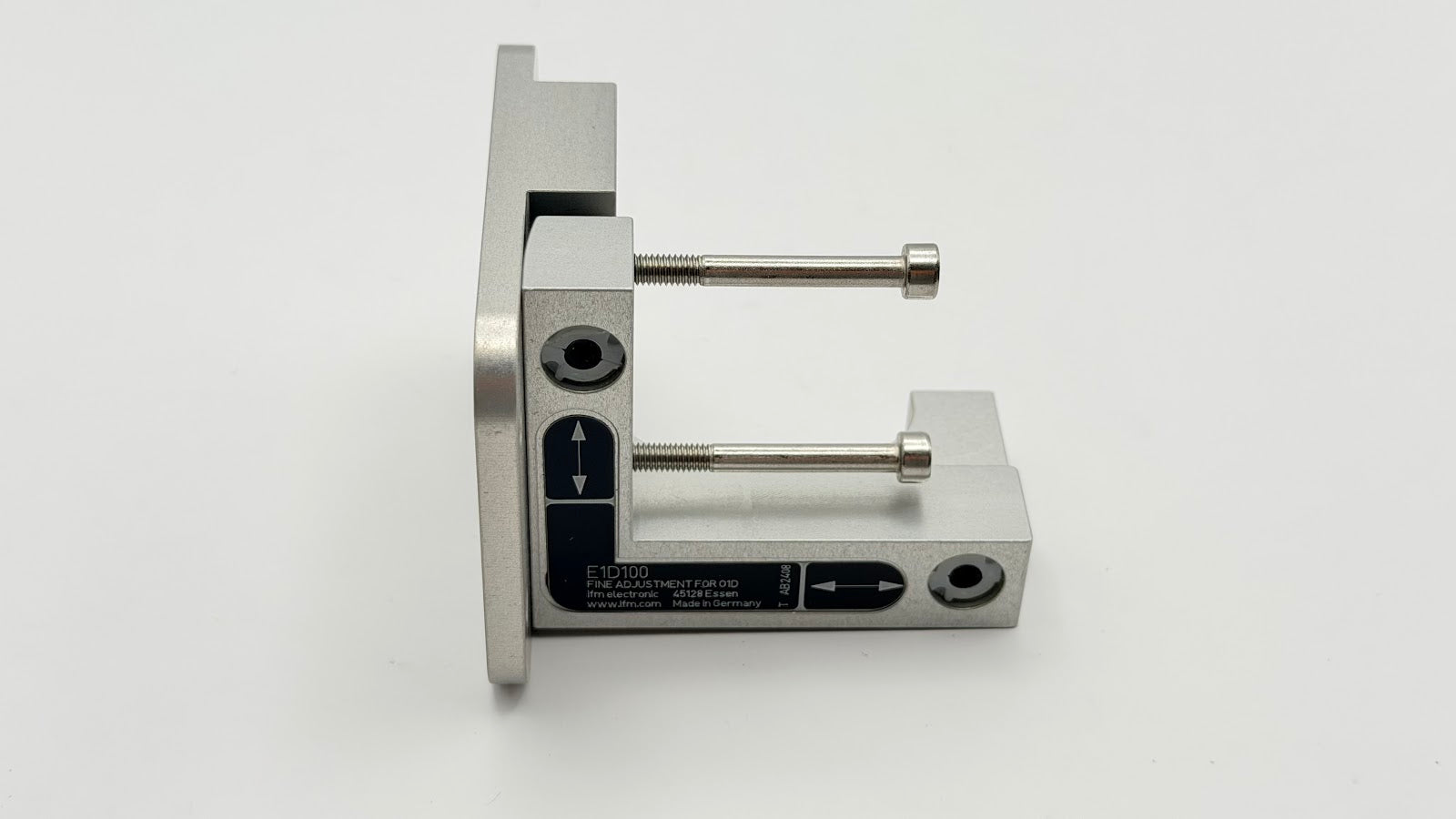

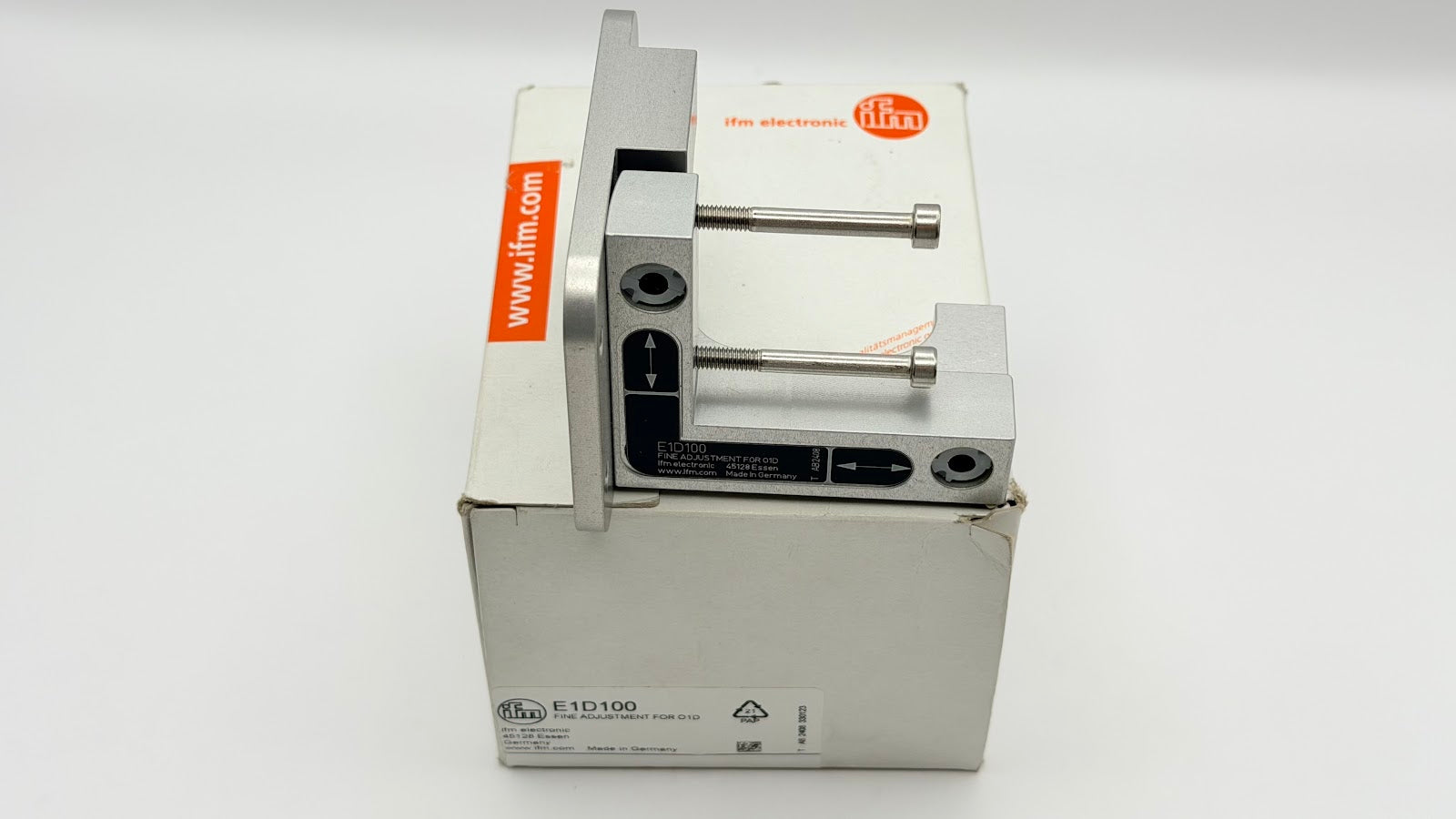

IFM E1D100 Mounting Fixture — Mounting and fine-adjustment fixture for O1D laser distance sensors. Fixture for O1D laser sensors, anodised aluminium, 58 x 75 x 70 mm, rod or free-standing, 190.5 g.

Shipping & Returns

Same-day dispatch across UAE

Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.

7-day return window

Sealed, unused items can be returned within 7 days for full refund or replacement.

Compatibility-checked

Our specialists review every bulk quote to ensure the part fits your application before you commit.

MPN / SKU: E1D100

Also known as: IFM E1D100 mounting bracket / sensor fixture / mounting fixture.

E1D100 Applications

The E1D100 is a fixture for mounting and fine adjustment of laser sensors, designed for the ifm O1D laser distance sensor range. It allows precise alignment of the sensor towards the target and can be fitted on a rod or used free-standing depending on the clamp. The fixture is made of uncoloured anodised aluminium with POM plastic components and stainless steel screws, providing a durable and corrosion-resistant mounting solution for industrial distance-measurement installations. Supplied as a single piece.

E1D100 Specifications

Brand IFM Product Type Fixture for mounting and fine adjustment of laser sensors.
IFM Type Code E1D100 Function Mounting and fine adjustment of laser sensors
Suitable for O1D laser sensors Fixture material Aluminium, uncoloured anodised
Plastic components POM Fasteners Stainless steel screws
Mounting type Rod or free-standing depending on the clamp Dimensions 58 x 75 x 70 mm
Weight 190.5 g Quantity per pack 1 piece

E1D100 Datasheet & Manual

Download Datasheet & ManualIFM E1D100 · PDF · Official IFM document

E1D100 – Frequently Asked Questions (FAQ)

What is the IFM E1D100?

The IFM E1D100 is a fixture for mounting and fine adjustment of laser sensors.

Which sensors is the IFM E1D100 used with?

The IFM E1D100 is designed for mounting ifm O1D laser distance sensors.

What material is the IFM E1D100 made of?

The IFM E1D100 fixture is made of uncoloured anodised aluminium with POM plastic components and stainless steel screws.

How is the IFM E1D100 mounted?

The IFM E1D100 can be fitted on a rod or used free-standing depending on the clamp.

What are the dimensions and weight of the IFM E1D100?

The IFM E1D100 measures 58 x 75 x 70 mm and weighs 190.5 g.
