• ifm - DI605A
1 1

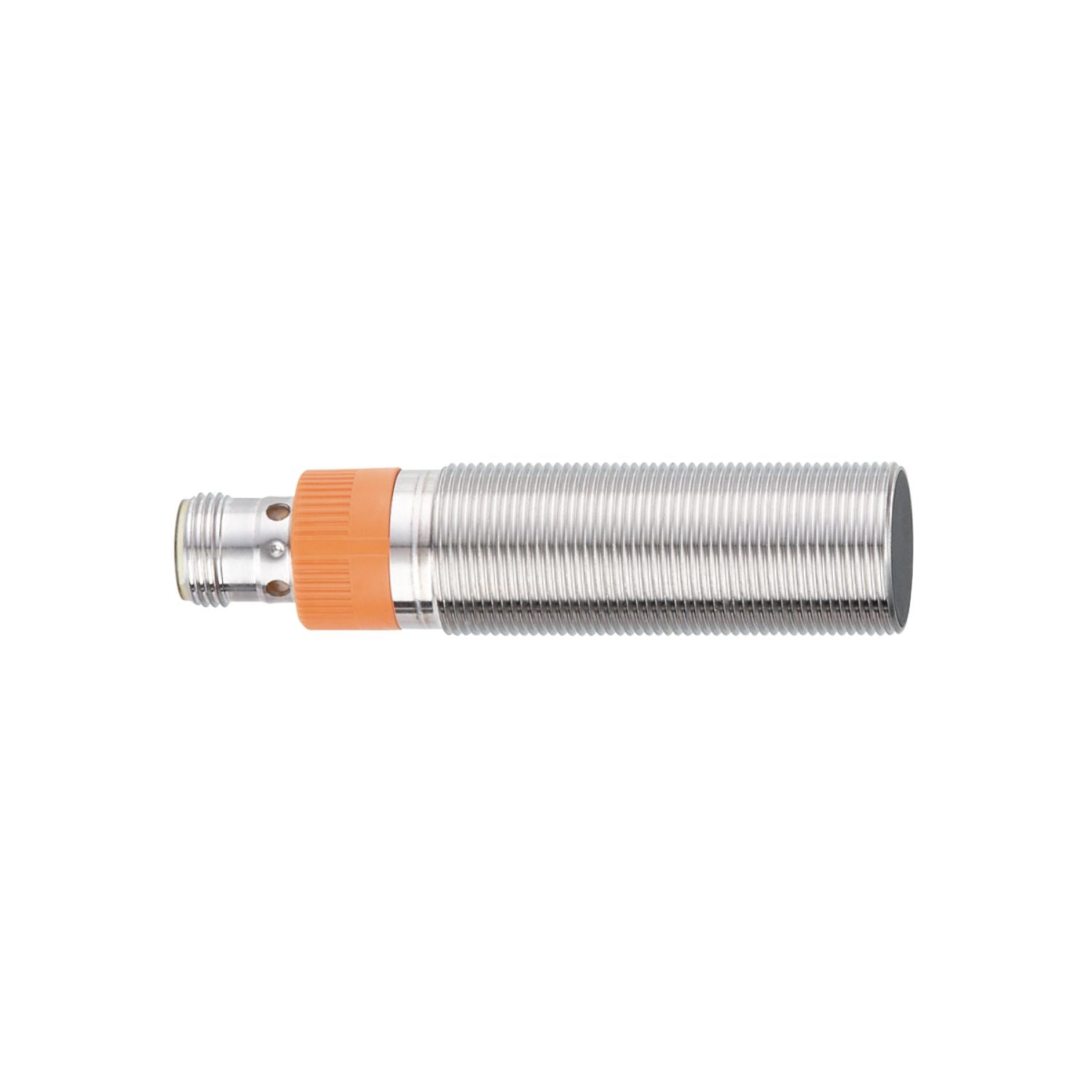

DI605A - Inductive Motion Control Sensor, flush mountable (60000 Imp/min)

DI605A - Inductive Motion Control Sensor, flush mountable (60000 Imp/min)

SKUDI605ABrandifm
AED 946.00
AED 946.00
Sale Sold out
Shipping calculated at checkout.

The DI605A is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced inductive encoder technology, this sensor delivers an exact 60000 imp/min resolution and provides a reliable pnp/npn output signal type. Designed for secure and straightforward installation via a flush mountable and operating on a standard 10...30 dc supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: ifm
  • Encoder Technology: Inductive
  • Series: DI605A
  • Accessory Type: lock nuts: 2
  • Maximum Revolutions: 60000 Imp/min
  • Output Signal Type: PNP/NPN
  • Supply Voltage: 10...30 DC
  • IP Rating: IP67
  • Interface: IO-Link
  • Minimum Operating Temperature: -20°C
  • Maximum Operating Temperature: 60°C
  • Mounting Type: Flush Mountable
  • Connection Type: 1 x M12; coding: A; Contacts: gold-plated
  • Current Rating: 250
  • Switching Frequency: < 500 Hz
