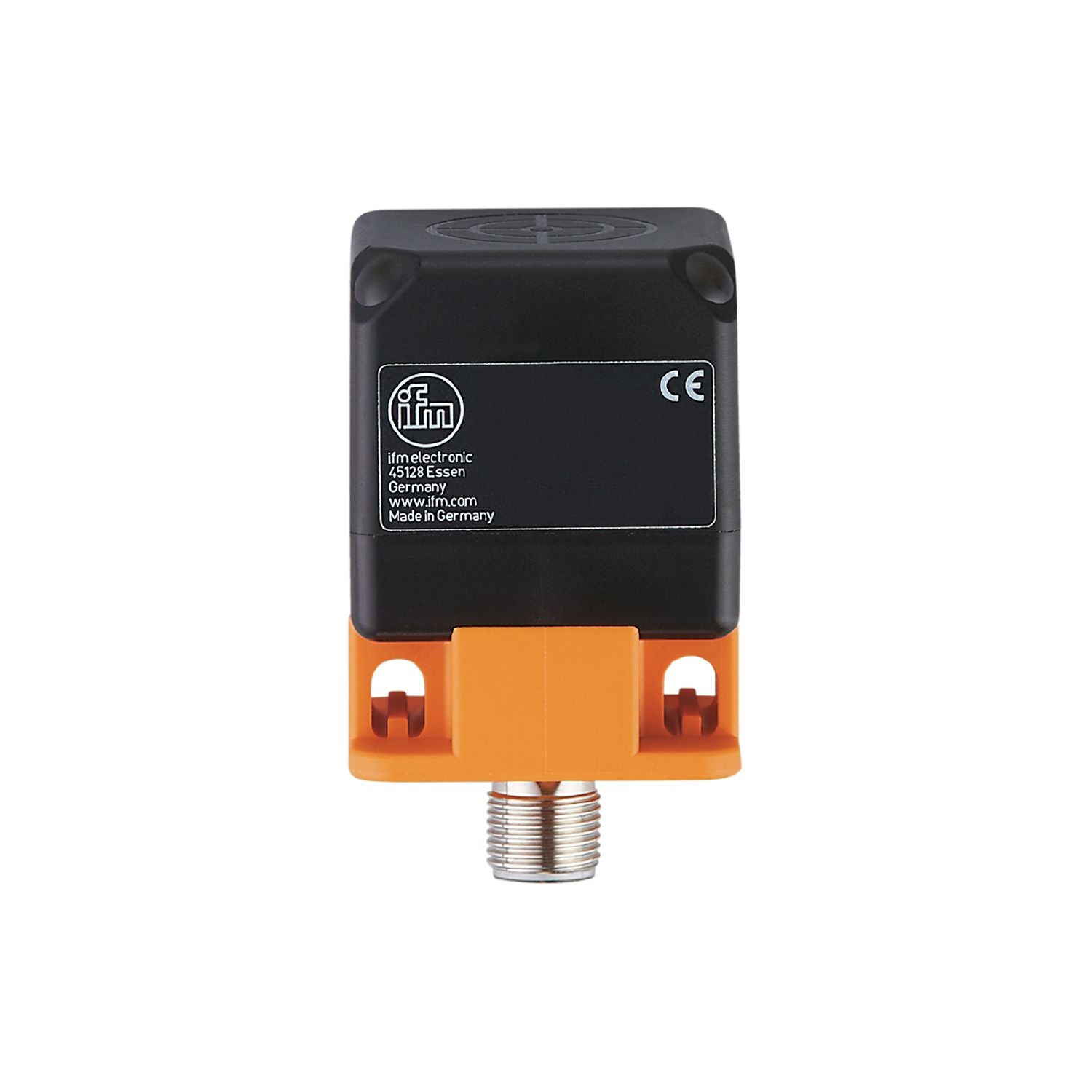

DI5034 - Inductive Motion Control Sensor, non-flush mountable (12000 Imp/min)

Name: DI5034 - Inductive Motion Control Sensor, non-flush mountable (12000 Imp/min)
Brand: ifm
SKU: DI5034
Price: 917.00 AED
Availability: InStock

SKUDI5034Brandifm

AED 917.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The DI5034 is a high-precision motion control sensor engineered for accurate positional tracking and speed monitoring in automated systems. Utilizing advanced inductive encoder technology, this sensor delivers an exact 12000 imp/min resolution and provides a reliable pnp/npn output signal type. Designed for secure and straightforward installation via a non-flush mountable and operating on a standard 10...30 supply voltage, it ensures continuous, fail-safe motion feedback for your industrial machinery.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: ifm
Encoder Technology: Inductive
Series: DI5034
Maximum Revolutions: 12000 Imp/min
Output Signal Type: PNP/NPN
Supply Voltage: 10...30
IP Rating: IP67

Interface: IO-Link
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: 85°C
Mounting Type: Non-Flush Mountable
Connection Type: 1 x M12; coding: A; Moulded body: brass, white bronze coated
Current Rating: 100
