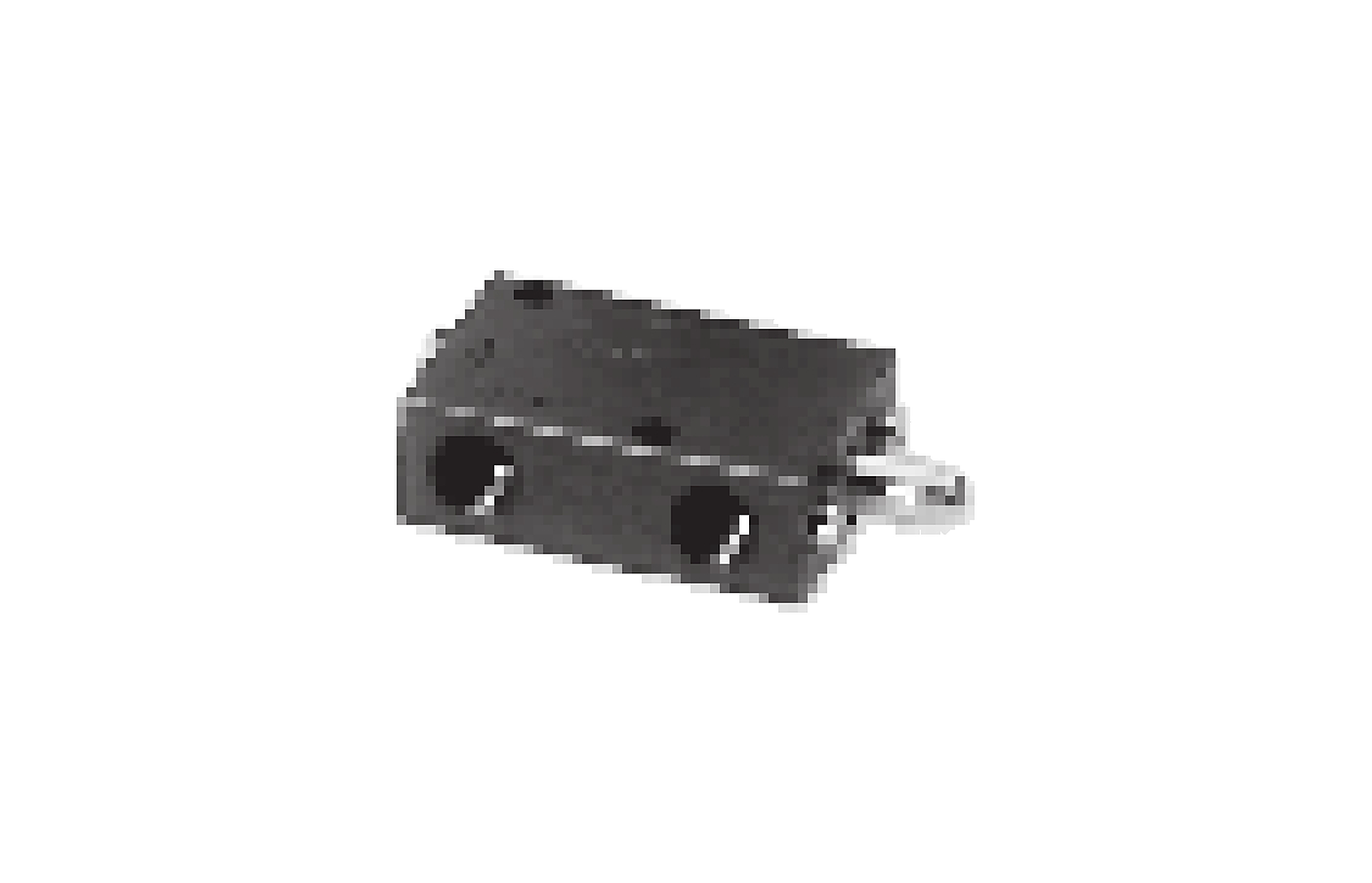

Waircom CASS8 - Series CA Mechanical Valve, 5/2 monostable (G 1/8)

The Waircom CASS8 is a 5/2 monostable mechanical valve from the Series CA range. Actuated by a robust stem plunger, this valve utilizes an anodized aluminium alloy housing paired with a hardened and nickel-plated steel control rod for heavy-duty cycle life. The internal components feature an acetal resin piston and standard NBR seals, allowing reliable operation across pressures from 0 – 12 bar and a temperature range of 0 – +70 (–20 with dry air) °C. Standard piping configurations are handled via a G 1/8 port connection, and ATEX certification is available: Yes.
