• SICK - 6054488
1 1

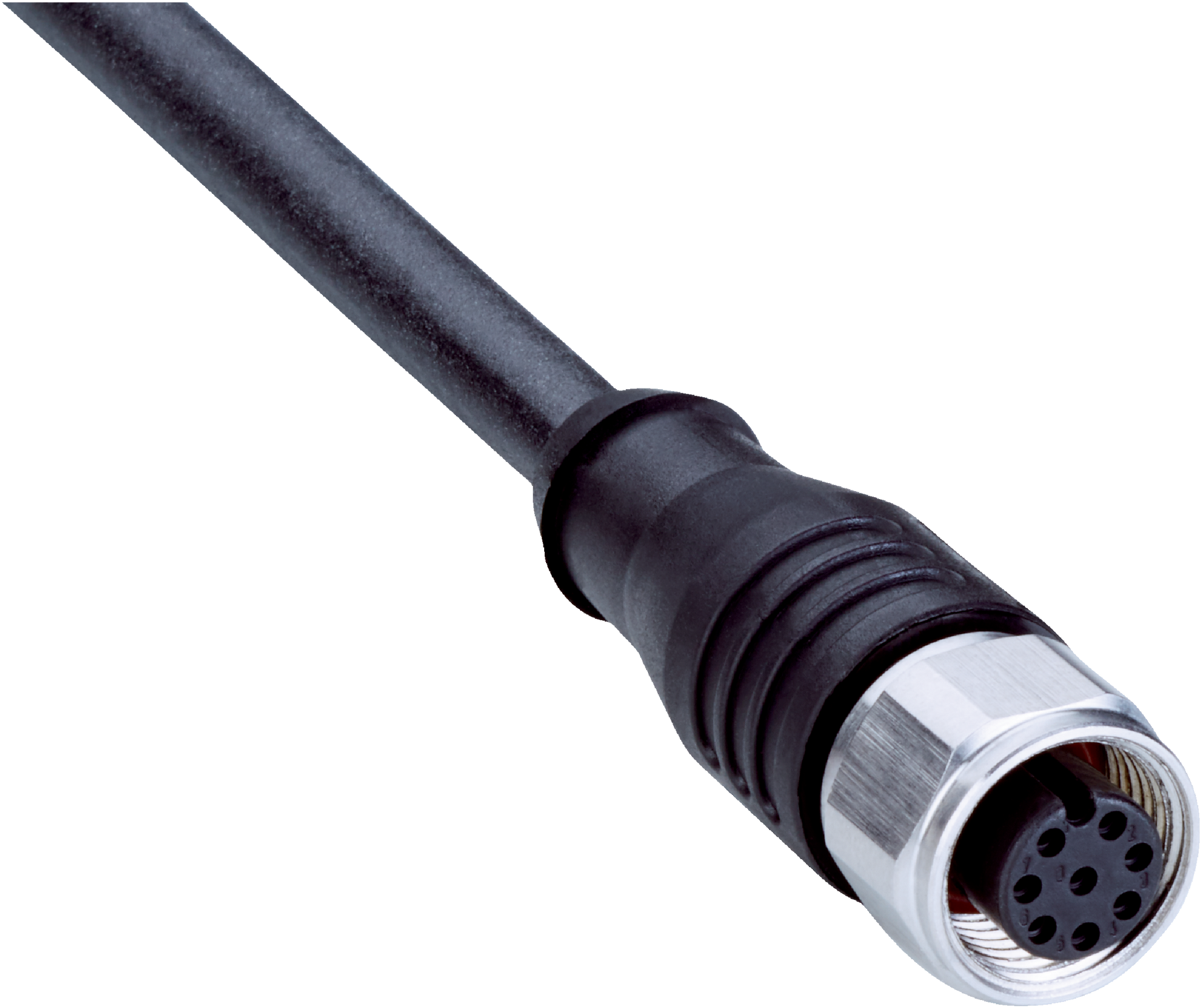

6054488 - SICK Sensor & Actuator Cable, 10 m

6054488 - SICK Sensor & Actuator Cable, 10 m

SKU6054488BrandSICK
AED 431.00
AED 431.00
Sale Sold out
Shipping calculated at checkout.

The 6054488 is a high-quality sensor and actuator connection cable manufactured by SICK (Series M12). Measuring 10 m in length, it is engineered for reliable signal transmission in harsh industrial environments. It carries a rugged IP67/ IP69K protection rating and is capable of withstanding extreme temperatures ranging from -40°C to +90°C. The cable features specialized connectors (Female connector, M12, 8-pin, straight) for secure, vibration-resistant integration.

View full details
ParameterValue
Brand
Sick
Product Type
Sensor/Actuator Cable
Series
M12
Number of Cores
8
Cross Sectional Area
0.25 mm²
Jacket Material
PUR, halogen-free
Jacket Colour
Black
Cable Length
10 m
Connector Gender A
Female
Number of Contacts A
8
Connector Type A
M12
ParameterValue
Connector 1
Female connector, M12, 8-pin, straight
Connector 1 Gender
Female
Connector 1 Orientation
Straight
Connector 1 Number of Contacts
8
Connector 2
Flying leads
Screened/Unscreened
Screened
Outside Diameter
6.3 mm
Minimum Operating Temperature
-40°C
Voltage
≤ 30 V
Maximum Operating Temperature
+90°C
IP Rating
IP67/ IP69K
