2076543 - SICK Sensor & Actuator Cable, 10 m

Name: 2076543 - SICK Sensor & Actuator Cable, 10 m
Brand: SICK
SKU: 2076543
Price: 155.00 AED
Availability: InStock

SKU2076543BrandSICK

AED 155.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The 2076543 is a high-quality sensor and actuator connection cable manufactured by SICK (Series M12). Measuring 10 m in length, it is engineered for reliable signal transmission in harsh industrial environments. It carries a rugged IP65/ IP67 (EN 60529) protection rating and is capable of withstanding extreme temperatures ranging from -50°C to +80°C. The cable features specialized connectors (Female connector, M12, 8-pin, straight, A-coded) for secure, vibration-resistant integration.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Brand: Sick
Product Type: Sensor/Actuator Cable
Series: M12
Number of Cores: 7
Cross Sectional Area: 0.25 mm²
Jacket Material: PUR, halogen-free
Jacket Colour: Black
Cable Length: 10 m
Connector Gender A: Female
Number of Contacts A: 8
Connector Type A: M12

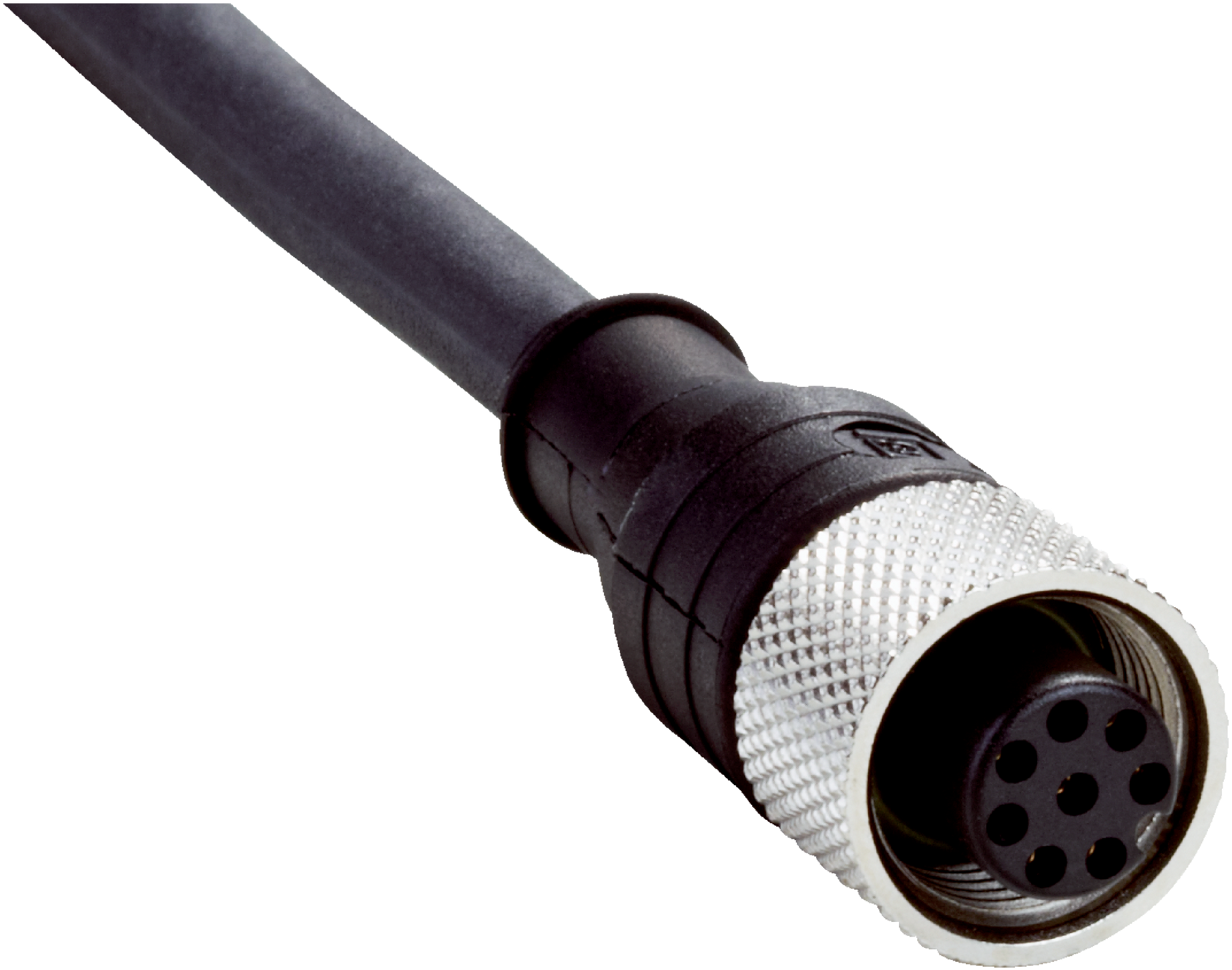

Connector 1: Female connector, M12, 8-pin, straight, A-coded

Connector 1 Gender: Female
Connector 1 Orientation: Straight
Connector 1 Number of Contacts: 8
Connector 2: Flying leads
Screened/Unscreened: Screened
Outside Diameter: 6 mm
Minimum Operating Temperature: -50°C
Voltage: ≤ 30 V
Maximum Operating Temperature: +80°C
Standards/Approvals: UL recognized in accordance with AWM Style 20549 (80 °C / 300 V), jacket; UL recognized in accordance with AWM Style 10493 (80 °C / 300 V), conductor
IP Rating: IP65/ IP67 (EN 60529)
