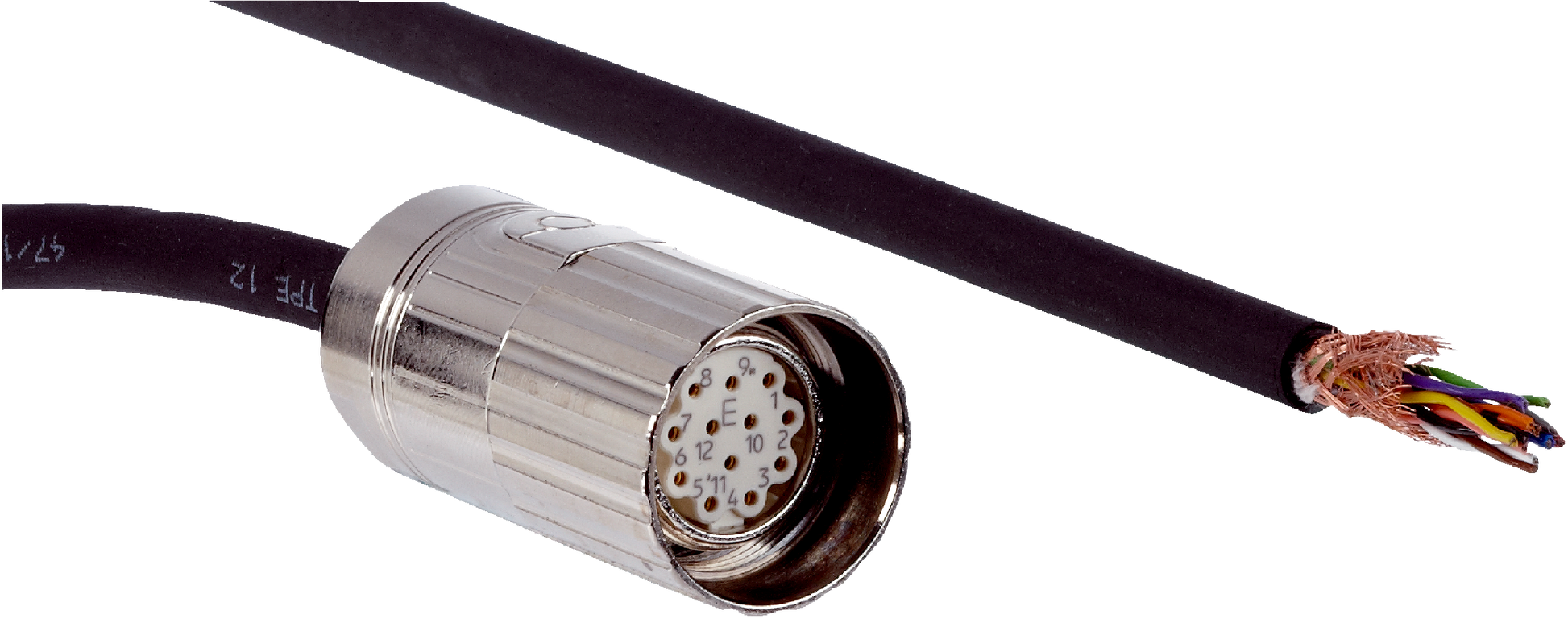

2029202 - SICK Sensor & Actuator Cable, 5 m

2029202 - SICK Sensor & Actuator Cable, 5 m

SKU2029202BrandSICK
AED 473.00
AED 473.00
Sale Sold out
Shipping calculated at checkout.

The 2029202 is a high-quality sensor and actuator connection cable manufactured by SICK (Series M23). Measuring 5 m in length, it is engineered for reliable signal transmission in harsh industrial environments. It carries a rugged IP66/ IP67 protection rating and is capable of withstanding extreme temperatures ranging from -30°C to +130°C. The cable features specialized connectors (Female connector, M23, 12-pin, straight) for secure, vibration-resistant integration.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Sick
  • Product Type: SSI, RS-422, TTL, HTL
  • Series: M23
  • Number of Cores: 12
  • Cross Sectional Area: 8 x 0.25 mm² + 2 x 0.5mm² + 2 x 0.14mm²
  • Jacket Material: PUR, halogen-free
  • Jacket Colour: Black
  • Cable Length: 5 m
  • Connector Gender A: Female
  • Number of Contacts A: 12
  • Connector Type A: M23
  • Connector 1: Female connector, M23, 12-pin, straight
  • Connector 1 Gender: Female
  • Connector 1 Orientation: Straight
  • Connector 1 Number of Contacts: 12
  • Connector 2: Flying leads
  • Screened/Unscreened: Screened
  • Outside Diameter: 7.8 mm
  • Minimum Operating Temperature: -30°C
  • Voltage: ≤ 160 V
  • Maximum Operating Temperature: +130°C
  • IP Rating: IP66/ IP67
