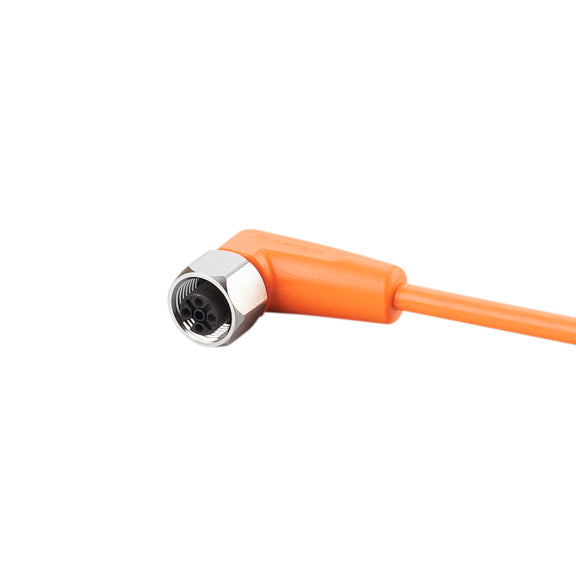

IFM EVT006 Connection Cable with Socket — 2.5 m M12 4-pole angled socket, PVC food-grade cable, 316L nut, IP69K, medium to 100 °C. M12 4-pole angled socket, 2.5 m PVC cable (4 x 0.34 mm²), stainless 316L nut, drag-chain suitable, gold-plated, IP69K, -25...100 °C.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: EVT006
Also known as: IFM EVT006 cable / cordset / connecting cable.
EVT006 Applications
The IFM EVT006 is a connection cable with M12 socket designed for hygienic and wet areas in the food industry. It is suited for wiring sensors on washdown lines, filling and packaging machinery where frequent cleaning and moisture are present. The 2.5 m 4-pole angled socket has a stainless steel 316L coupling nut, EPDM sealing and a mechanical end stop that protects the O-ring, giving a permanent tool-free seal to IP69K. The drag-chain-rated PVC jacket withstands movement and a wide -25...100 °C temperature range.
The EVT006 has one M12 angled socket, A-coded, with 4 gold-plated contacts.
What voltage and current is the IFM EVT006 rated for?
The EVT006 is rated for less than 250 V AC / less than 300 V DC, with a maximum current of 4 A.
What is the jacket material and cable diameter of the IFM EVT006?
The EVT006 cable jacket is PVC (orange) with a cable diameter of 4.9 mm. It is free from silicone, making it suitable for food industry applications.
What is the conductor cross section of the IFM EVT006?
The EVT006 has 4 cores of 0.34 mm2 each (4 x 0.34 mm2).
What is the IP rating of the IFM EVT006?
The EVT006 is rated to IP 65, IP 67, IP 68 and IP 69K.
What is the operating temperature range of the IFM EVT006?
The EVT006 has an operating temperature range of -25...100 degrees C, or 5...100 degrees C in moving applications.
Is the IFM EVT006 suitable for drag chains?
Yes, the EVT006 offers drag chain suitability with more than 1 million bending cycles and a torsional strain of +/-180 degrees/m, at a minimum bending radius of 10 x the cable diameter for flexible use.
What are the core colours of the IFM EVT006?
The EVT006 core colours are BK (black), BN (brown), BU (blue) and WH (white).
