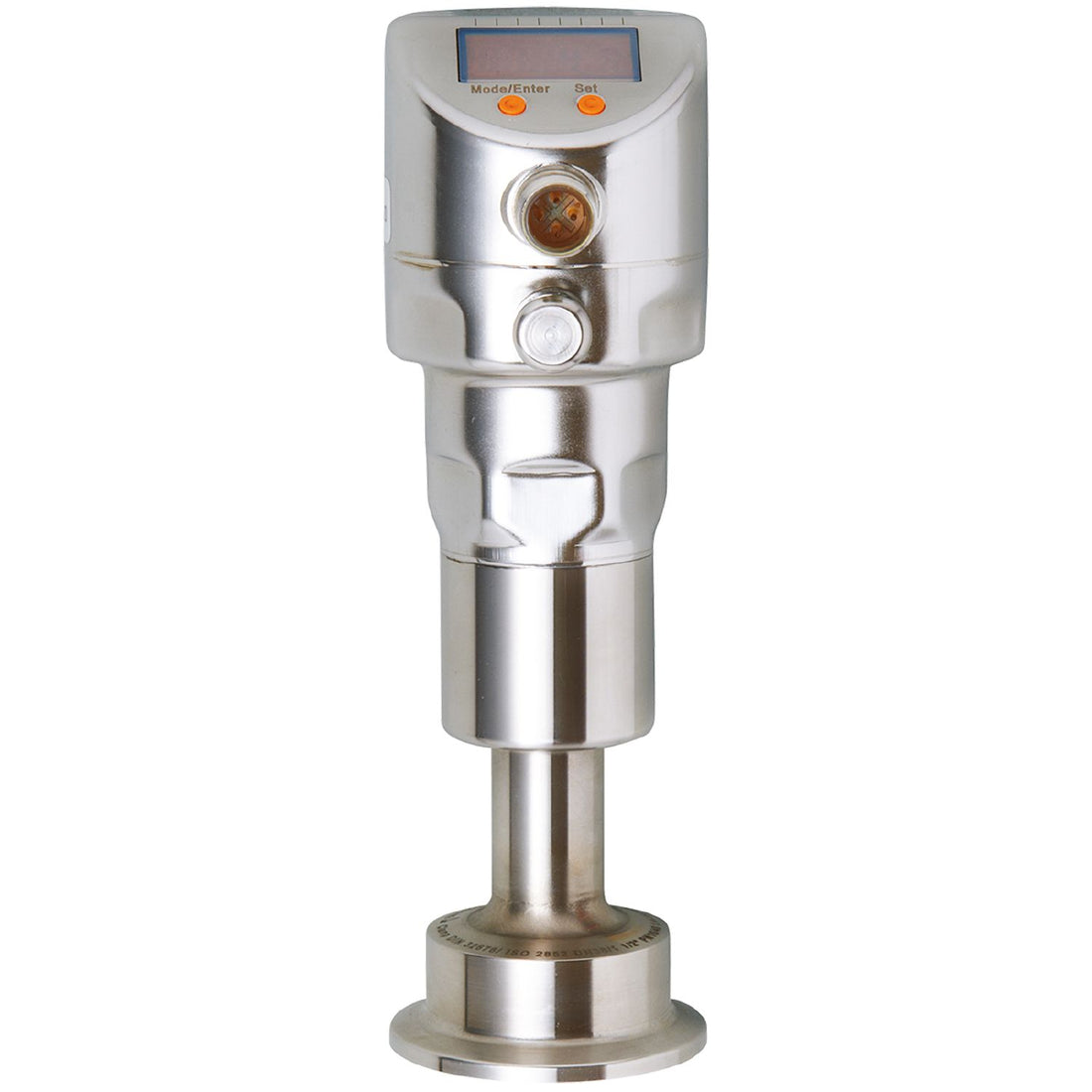

PI2204 - Stainless Steel (316L/1.4404) Relative; Vacuum Pressure Sensor, IP67; IP68; IP69K (-1 bar to 50 bar)
Shipping calculated at checkout.
In stock
Delivery information
- Dubai & Ajman
- Elsewhere in UAE
Same day when ordered before 2 PM UAE time. No delivery on Sundays.
The PI2204 is a high-precision pressure sensor engineered for reliable relative; vacuum pressure measurement in demanding industrial applications. Encased in a durable stainless steel (316L/1.4404) housing and featuring IP67; IP68; IP69K protection, this sensor accurately reads pressures ranging from -1 bar to 50 bar. Operating... Read more
Specification
| Parameter | Value |
|---|---|
| Brand | ifm |
| Housing Material | Stainless Steel (316L/1.4404) |
| IP Rating | IP67; IP68; IP69K |
| Interface | IO-Link |
| Maximum Operating Temperature | 65°C |
| Minimum Operating Temperature | -25°C |
| Output Type | PNP/NPN |
| Series | PI |
| Standards/Approvals | EMC DIN EN 61000-6-2 | ; DIN EN 61000-6-3 | ; Shock resistance: DIN EN 60068-2-27 | 50 g (11 ms); Vibration resistance: DIN EN 60068-2-6 | 20 g (10...2000 Hz); Note on approval: Including free 6-point calibration certificate. |
| Supply Voltage | 18...32 DC |
| Electrical Connection | 1 x M12; coding A; Contacts: gold-plated |
| Parameter | Value |
|---|---|
| Accuracy | < ± 0.1 |
| Response Time | 7 ms |
| Communication Protocol | 1.0 |
| Process Connection | Clamp DN40 (1.5") DIN 32676 (ISO 2852) |
| Maximum Current | 250.0 |
| Analogue Output | 4...20, invertible |
| Media Measured | viscous media and liquids with suspended particles; liquids and gases |
| Maximum Pressure Reading | 50 bar |
| Minimum Pressure Reading | -1 bar |
| Pressure Reading Type | Relative; Vacuum |
