Vishay MOSFETs SQM40020E_GE3

SKU SQM40020E_GE3Brand Vishay

AED 8.90 excl. VAT

Shipping calculated at checkout.

In stock

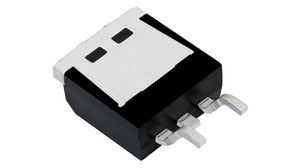

Vishay, Automotive MOSFET, Single - N-Channel, 40V, 100A, TO-263

Pickup available
at Creative Ajman Showroom

Usually ready in 24 hours

View store
information

Specification

Parameter	Value
Brand	Vishay
Channel Type	N
Maximum Continuous Drain Current	100 A
Maximum Drain Source Voltage	40 V
Package Type	D2PAK (TO-263)
Mounting Type	Surface Mount
Pin Count	3
Maximum Drain Source Resistance	4 m?
Channel Mode	Enhancement
Maximum Gate Threshold Voltage	3.5V
Minimum Gate Threshold Voltage	2.5V
Maximum Power Dissipation	150 W

Parameter	Value
Transistor Configuration	Single
Maximum Gate Source Voltage	±20 V
Number of Elements per Chip	1
Width	9.65mm
Length	10.41mm
Typical Gate Charge @ Vgs	84 nC @ 10 V
Maximum Operating Temperature	+175 °C
Minimum Operating Temperature	-55 °C
Forward Diode Voltage	1.5V
Height	4.57mm
Automotive Standard	AEC-Q101
