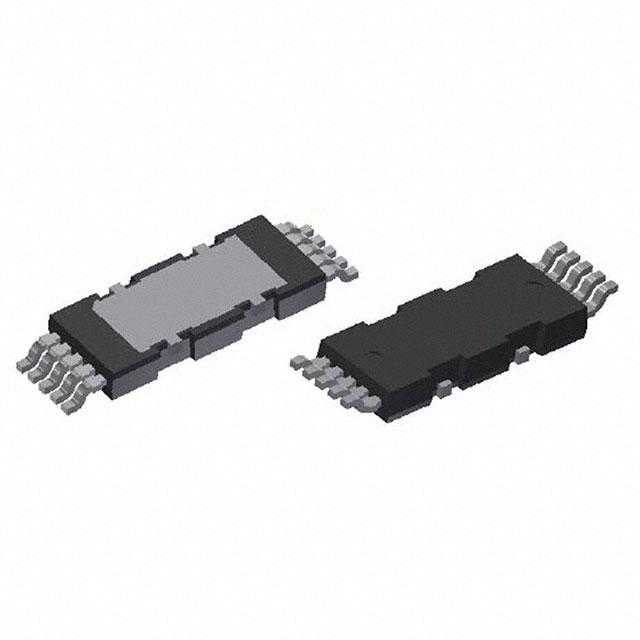

Infineon MOSFETs IPDD60R050G7XTMA1

Infineon, This is manufactured by Infineon Technologies. The manufacturer part number is IPDD60R050G7XTMA1. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4v @ 800 µa. The product has -55 °c ~ 150 °c (tj) operating temperature range. Moreover, the product comes in 10-powersop module. It has a maximum Rds On and voltage of 50mohm @ 15.9a, 10v. The maximum gate charge and given voltages include 68 nc @ 10 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. It is shipped in tape & reel (tr) package . The product has a 600 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 278w (tc). The products input capacitance at maximum includes 2670 pf @ 400 v. It has a long 39 weeks standard lead time. The product is available in surface mount configuration. The product coolmos g7, is a highly preferred choice for users. pg-hdsop-10-1 is the supplier device package value. The continuous current drain at 25 °C is 47a (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to ipdd60, a base product number of the product. The product is designated with the ear99 code number.
