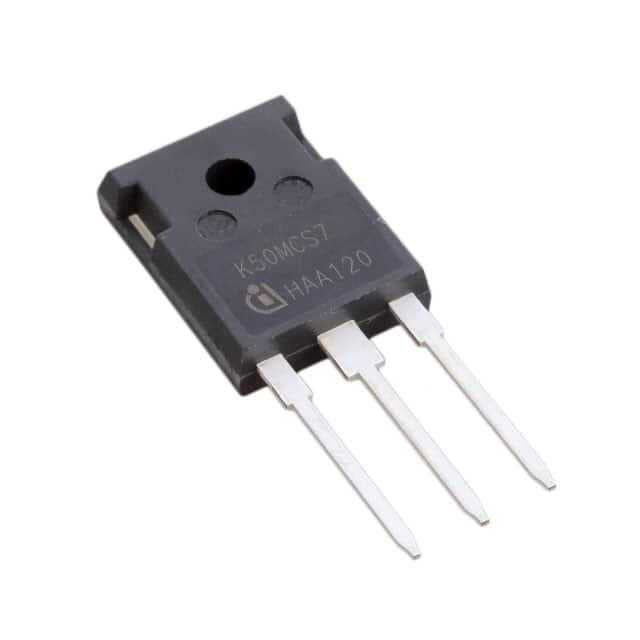

Infineon IGBTs IKW50N120CS7XKSA1
Shipping calculated at checkout.
In stock
Infineon, This is manufactured by Infineon Technologies. The manufacturer part number is IKW50N120CS7XKSA1. The maximum collector current includes 82 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 2.8mj (on), 2.2mj (off). Features 2v... Read more
Description
Infineon, This is manufactured by Infineon Technologies. The manufacturer part number is IKW50N120CS7XKSA1. The maximum collector current includes 82 a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. Provide switching energy up to 2.8mj (on), 2.2mj (off). Features 2v @ 15v, 50a. The maximum collector emitter breakdown voltage of the product is 1200 v. Td (onoff) value of 29ns170ns. The product has -40 °c ~ 175 °c (tj) operating temperature range. It carries standard input type. Moreover, the product comes in to-247-3. Features 290 nc gate charge. It has a trr (reverse recovery time) of 165 ns. In addition, it is reach unaffected. Test condition included 600v, 50a, 2.3ohm, 15v. It is shipped in tube package . Its typical moisture sensitivity level is not applicable. It has a long 99 weeks standard lead time. Features an IGBT trench field stop type. With a current - collector pulsed of [Current - Collector Pulsed (lcm)] . The product is available in through hole configuration. The product trenchstop, is a highly preferred choice for users. pg-to247-3 is the supplier device package value. The maximum power of the product is 428 w. Moreover, it corresponds to ikw50n, a base product number of the product. The product is designated with the ear99 code number.
Specification
| Parameter | Value |
|---|---|
| Brand | Infineon |
| Maximum Continuous Collector Current | 50 A |
| Maximum Collector Emitter Voltage | 1200 V |
| Maximum Gate Emitter Voltage | ±20V |
| Maximum Power Dissipation | 428 W |
| Number of Transistors | 1 |
| Parameter | Value |
|---|---|
| Package Type | TO-247-3 |
| Configuration | Single |
| Mounting Type | Through Hole |
| Channel Type | N |
| Pin Count | 3 |
| Transistor Configuration | Single |
