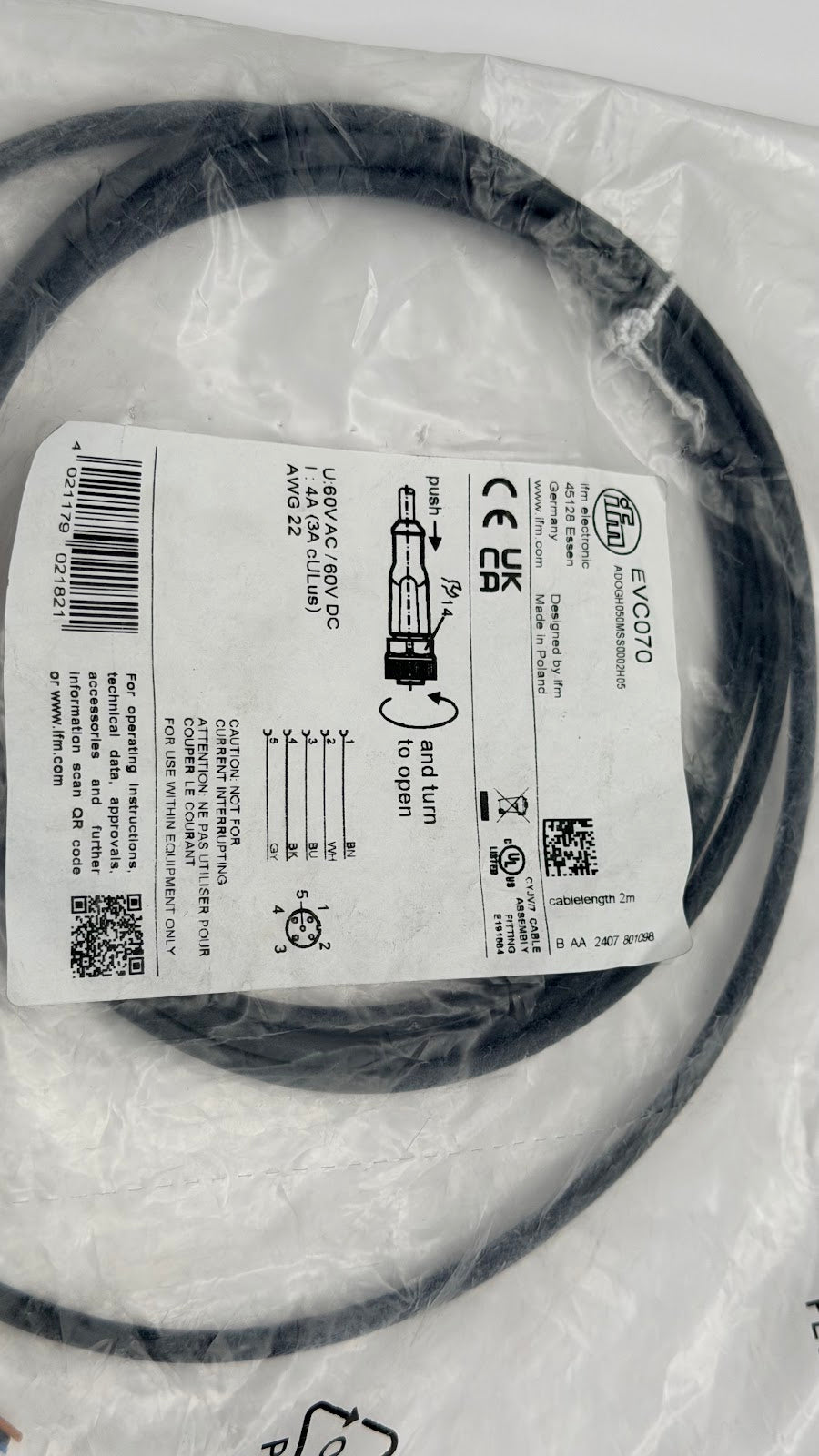

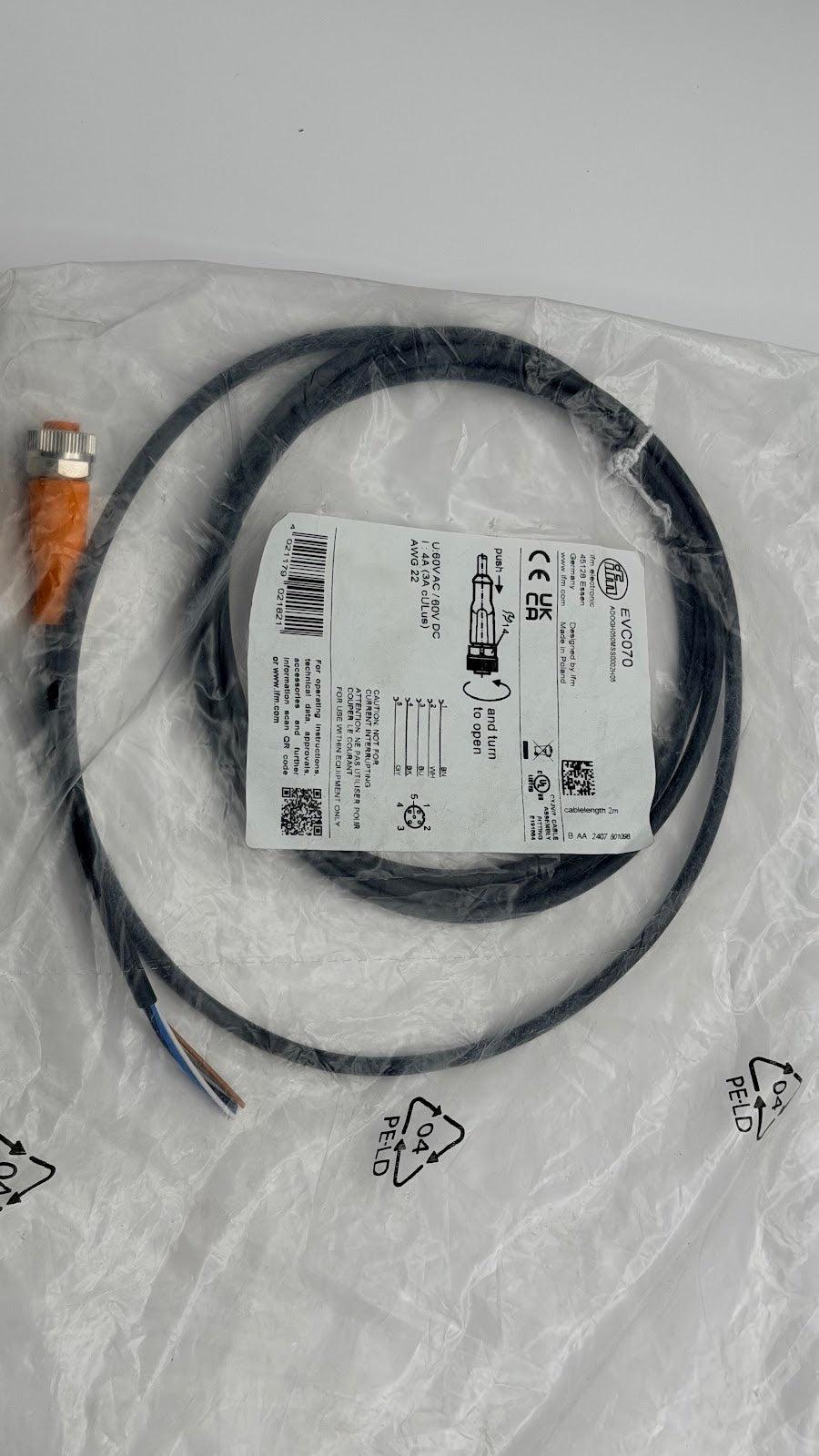

IFM EVC070 Connection Cable with Socket — 2 m straight M12 5-pole PUR socket. M12 5-pole straight female socket, 2 m PUR halogen-free cable, drag-chain suitable, < 60 V AC/DC, IP 69K.
Shipping & Returns
Same-day dispatch across UAE
Order before 2 PM (Sun–Thu). Next-day delivery to Dubai, Sharjah, Abu Dhabi. 2–4 days to other emirates.
7-day return window
Sealed, unused items can be returned within 7 days for full refund or replacement.
Compatibility-checked
Our specialists review every bulk quote to ensure the part fits your application before you commit.
MPN / SKU: EVC070
Also known as: IFM EVC070 cable / cordset / connecting cable.
EVC070 Applications
The IFM EVC070 is an M12 5-pole female cordset used to connect sensors and actuators to controllers in factory automation. Its 2 m PUR halogen-free jacket is drag-chain suitable and resistant to oils and coolants, making it well suited to machine tools and moving cable carriers. The straight M12 socket with gold-plated contacts and a locking coupling ring provides a reliable, vibration-resistant connection, while IP 65/67/68/69K protection allows use in washdown and harsh industrial environments.
The EVC070 has one M12 straight female (socket) connector, 5-pole, with a nickel-plated brass coupling nut and gold-plated contacts.
What is the operating voltage of the EVC070?
The IFM EVC070 is rated for an operating voltage of < 60 V AC/DC and is protection class II.
What current can the EVC070 carry?
The EVC070 supports a maximum current load of 4 A (3 A per the cULus rating).
What cable length and material does the IFM EVC070 use?
The EVC070 has a 2 m PUR halogen-free black cable, Ø 4.6 mm, with a 5 x 0.34 mm² cross section.
What is the IP protection rating of the EVC070?
The IFM EVC070 is rated IP 65, IP 67, IP 68 and IP 69K.
What ambient temperature range can the EVC070 handle?
The EVC070 operates from -25 to 90 °C (-25 to 75 °C under the cULus rating).
Is the IFM EVC070 suitable for drag chains?
Yes, the EVC070 is drag-chain suitable, rated for over 5 million bending cycles at a minimum bending radius of 10 x the cable diameter and travel speeds up to 3.3 m/s.
