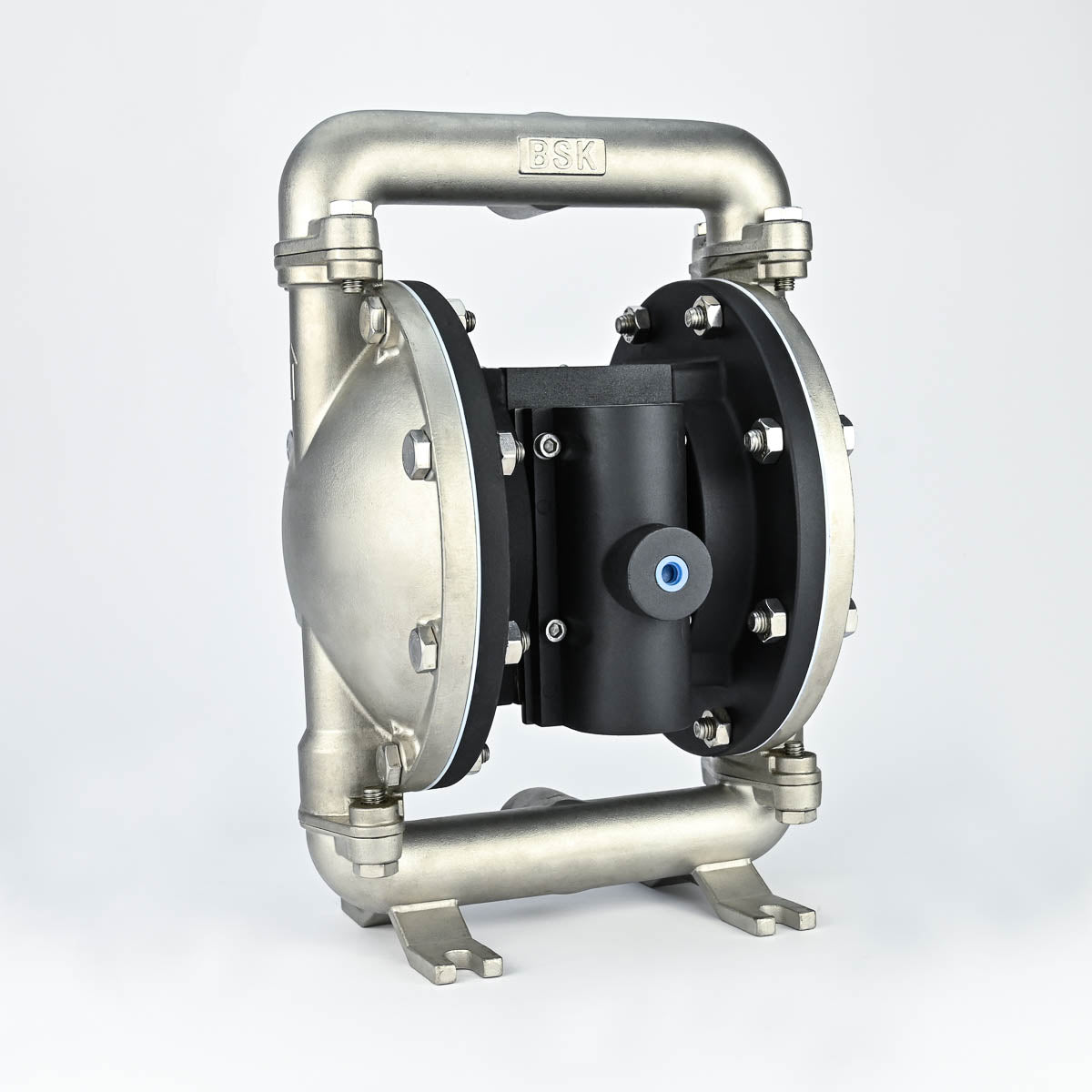

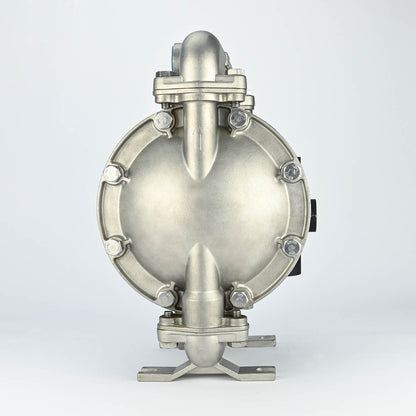

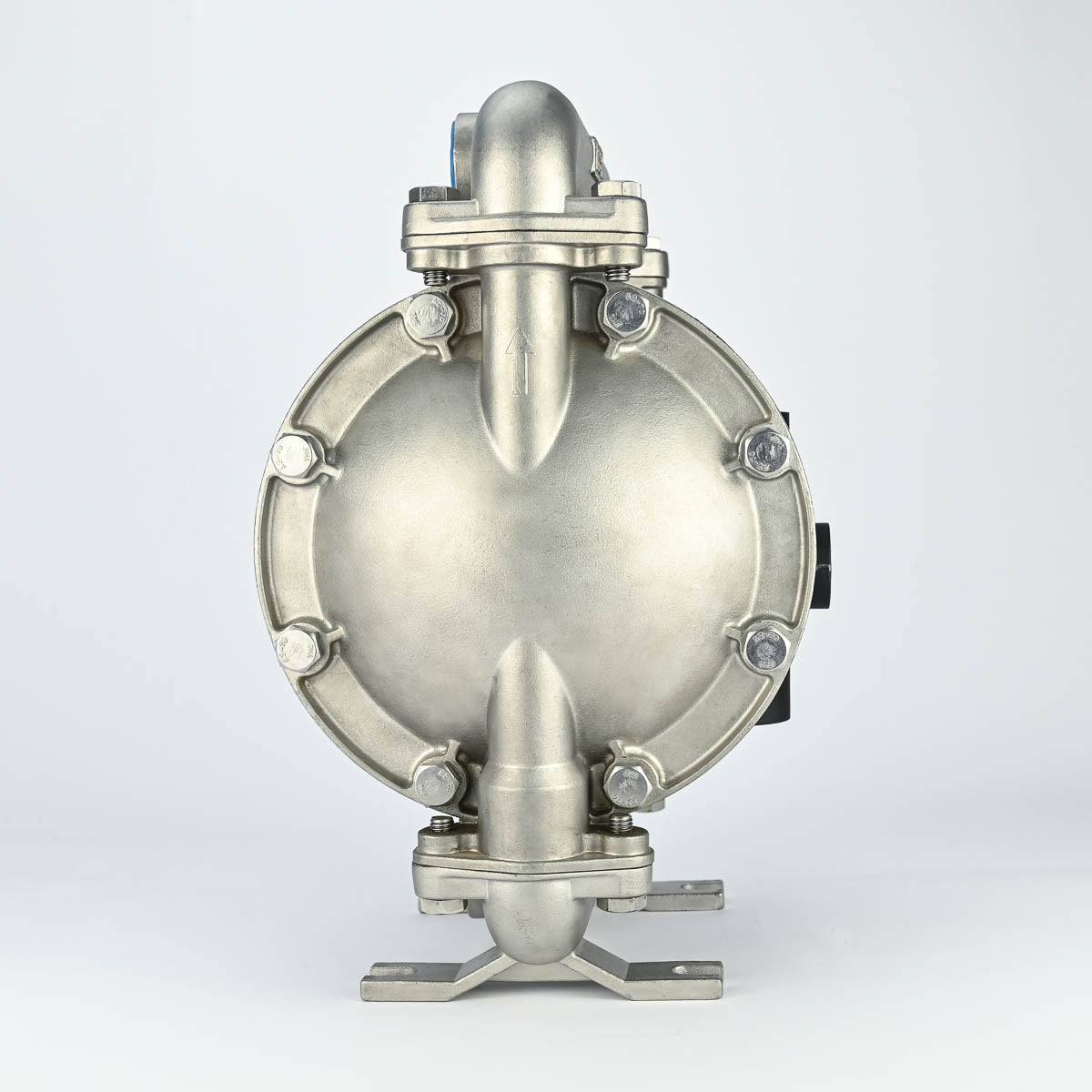

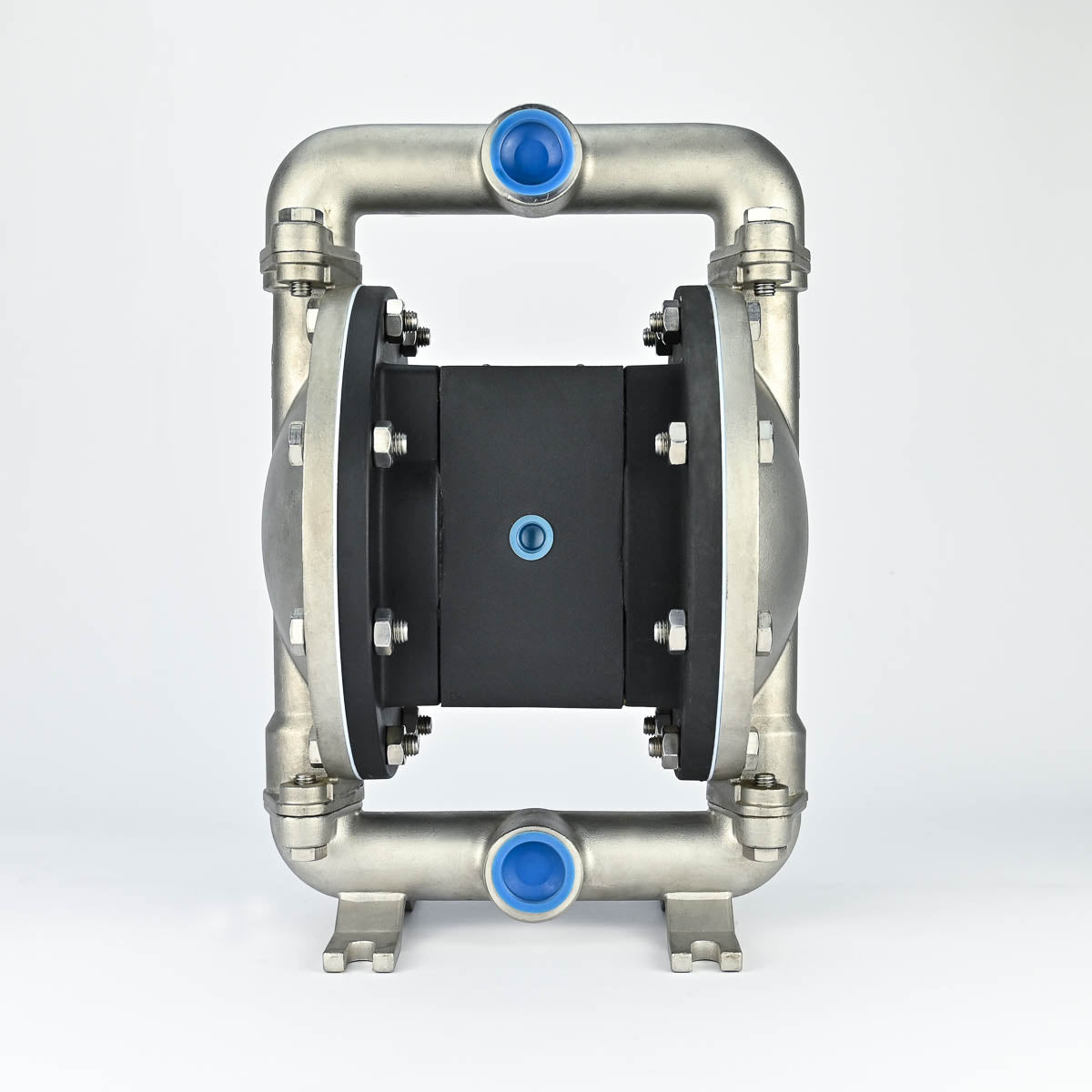

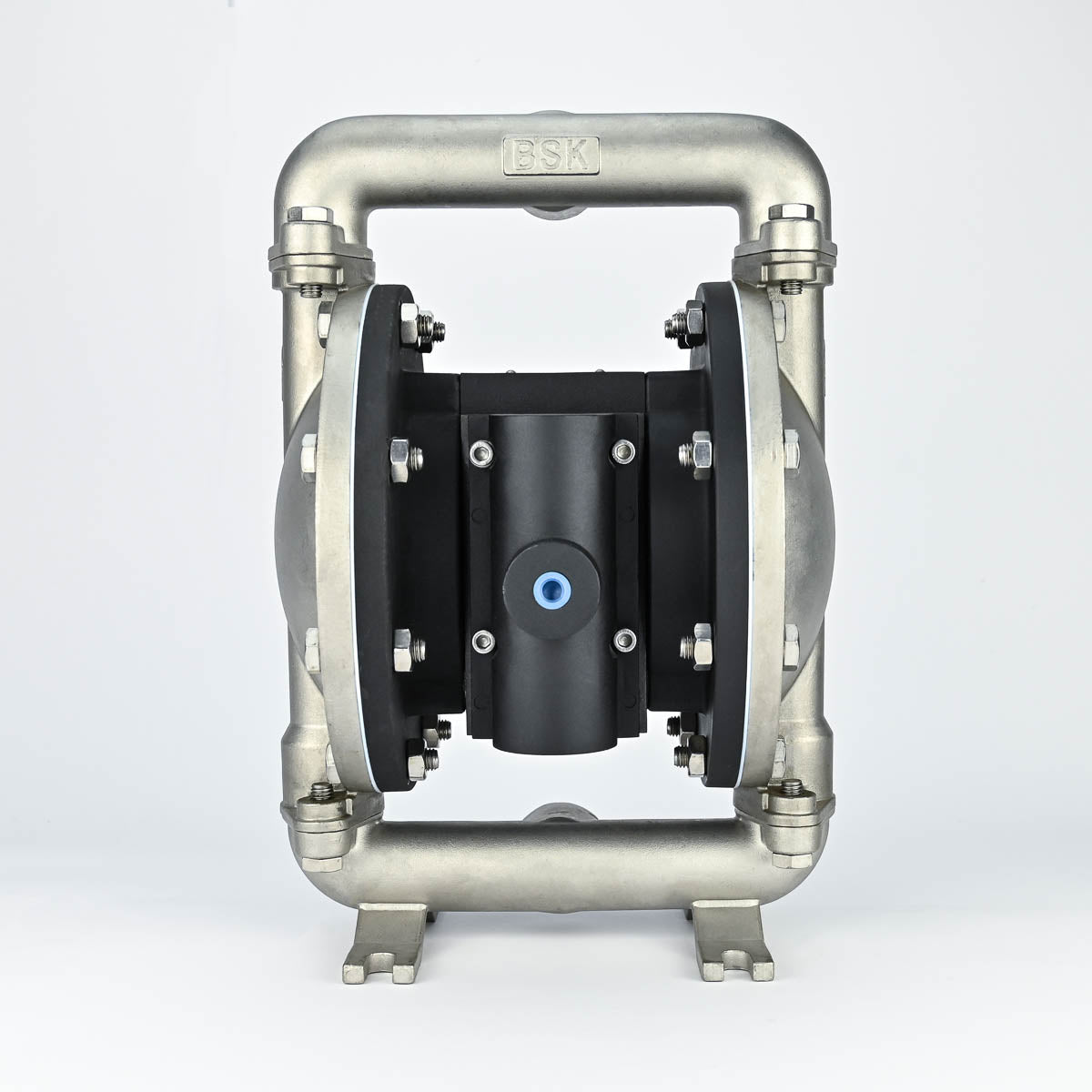

2 Inch Flange AODD Pumps BA50SS-STT3-C - Stainless Steel Body PTFE Diaphragm -BSK

SKUBA50SS-STT3-CBrandBSK

AED 13,470.00

Sale Sold out

Shipping calculated at checkout.

Quantity

The BA50SS-STT3-C is a high-performance, air-operated double diaphragm (AODD) pump constructed with a durable stainless steel body and a chemically resistant PTFE diaphragm. Designed for large volume high purity sanitary applications, this pump is engineered to reliably transfer high-purity fluids and food products in demanding pharmaceutical and food processing environments. With a maximum flow rate of 667 L/Min and a maximum suction lift of 6.2 m, it provides efficient and safe operation for a wide range of applications

View full details

Wetted Material: Stainless Steel 316
Seat Material: Stainless Steel
Ball Material: PTFE
Diaphragm Material: PTFE
O-ring Materials: PTFE
Discharge Port: Flanged
Fluid Outlet: 2"
Fluid Inlet: 2"
Max Flow: 667 L/Min

Max Suction Lift-Dry: 7.6 m
Max Air Pressure: 8.3 bar
Weight: 35.8kg
Noise: <78dB
Temperature Range: 4.4Â°C to 104Â°C
Dimensions/Size: 380Ã—520Ã—365mm
Color/Finish: Stainless Steel 316
Applications/Industry: Large-Volume High Purity Pharmaceutical & Biotechnology

Product Features

Stainless Steel 316 Body Material: Provides excellent resistance to corrosion, chemicals, and contamination, ensuring longevity and reliability in large-volume high purity sanitary processing environments.
PTFE Diaphragm Material: Offers superior compatibility and lasting performance with fluids like high-purity food products, pharmaceutical solutions, sterile beverages, ultra-clean fluids, and pure processing liquids.
667 L/Min Max Flow: Enables efficient and rapid large-volume high-purity fluid transfer, pharmaceutical processing, and sterile applications requiring high-capacity operations.
Self-Priming & Can Run Dry: Reduces downtime and prevents damage, simplifying operation in large-scale high-purity sanitary systems where continuous operation is essential.
Large Volume High Purity Stainless Steel with Full PTFE Sealing: Provides pharmaceutical-grade construction with stainless steel seats and full PTFE wetted parts, delivering maximum purity and contamination prevention for large-volume critical applications.
Seal-Less, Leak-Proof Design: Eliminates the risk of costly leaks and protects products from contamination in sterile environments.
Air-Operated (Intrinsically Safe): Can be used in hazardous environments where electrical sparks are a concern, making it ideal for explosive atmospheres in pharmaceutical facilities.
Large Volume High Purity 2" Flanged Port Design: Optimized for large-volume high purity sanitary applications with 2" flanged connections for secure integration into pharmaceutical and sterile processing systems requiring high flow capacity.
Chemical Processing Temperature Range (4.4Â°C to 104Â°C): Optimized for pharmaceutical processing conditions, providing reliable operation across typical high-purity sanitary handling temperatures.
Large Volume High Purity Sanitary Configuration: Specifically engineered for large-volume high purity sanitary applications with full PTFE configuration, featuring materials selected for FDA compliance and maximum contamination prevention in pharmaceutical and food processing environments.

Applications & Industries

Pharmaceutical: Precise transfer in large-volume high-purity API synthesis, sterile fluid handling, and pharmaceutical manufacturing requiring FDA-compliant stainless steel construction with full PTFE sealing and flanged connections for maximum contamination prevention in pharmaceutical facilities requiring high-capacity operations and permanent installation.
Food & Beverage: FDA-compliant for moving high-purity food products, sterile beverages, ultra-clean concentrates, and pure food ingredients requiring stainless steel sanitary construction with PTFE purity and flanged connections for premium food processing with large flow capacity and secure installation.
Biotechnology: Handling sterile processing fluids, high-purity pharmaceutical solutions, and specialty chemicals requiring food-grade construction with stainless steel sanitary design, full PTFE sealing, and flanged connections for large-volume biotechnology production facilities requiring maximum purity.
Dairy Processing: Transferring ultra-pure dairy products, sterile milk processing, and high-purity food-grade fluids requiring FDA-compliant stainless steel construction with PTFE contamination prevention and flanged connections for premium dairy operations requiring large flow rates and permanent installation.
Semiconductor: Transferring ultra-pure chemicals and high-purity processing fluids requiring maximum contamination prevention with stainless steel construction, full PTFE sealing, and flanged connections for large-volume chip manufacturing requiring food-grade standards and secure installation.
Note: The BA50SS-STT3-C's large volume high purity stainless steel construction with full PTFE sealing system and 2" flanged connections delivering 667 L/Min provides FDA-compliant performance with maximum contamination prevention for large-volume high-purity applications requiring permanent installation. The stainless steel body offers excellent resistance to corrosion and contamination while the full PTFE wetted parts provide superior chemical compatibility and purity protection with secure flanged connections. This model represents the ultimate option for large-volume high purity sanitary applications where FDA compliance, maximum contamination prevention, secure permanent installation, and the highest sanitary standards are essential for pharmaceutical, food processing, and biotechnology industries requiring ultra-pure fluid handling with maximum flow capacity and permanent integration.

Why Choose This Pump?

The BA50SS-STT3-C from BSK Fluid Technology combines robust construction with proven AODD pump technology to deliver unmatched performance and durability for your specific fluid handling challenges. Its focus on ultimate chemical resistance with Stainless Steel body and Teflon wetted parts design makes it a cost-effective and reliable choice for ensuring operational efficiency and safety.

Key Product Highlights:

Stainless Steel 316L Body Construction: Premium stainless steel design providing exceptional corrosion resistance and hygiene standards for maximum-duty industrial applications
Teflon (PTFE) Wetted Parts: Ultimate chemical resistance material offering unmatched compatibility with virtually all chemicals, solvents, and aggressive fluids with temperature resistance from -20Â°C to 220Â°F
Proven AODD Technology: Self-priming, seal-less operation that can run dry without damage while maintaining 4.5m self-priming lift capability
Maximum-Duty 2" Port Design: Large bore installation with 2"-11-1/2NPTF connections while delivering reliable 600 L/Min flow capacity with 70M maximum head
Maximum Operating Range: Functions reliably with PTFE's exceptional chemical and temperature resistance up to 8.3 bar maximum air pressure across extreme conditions
Intrinsically Safe Operation: Air-powered design eliminates electrical spark risks in hazardous environments while handling the most aggressive chemicals and particles up to 7mm diameter

The BA50SS-STT3-C is specifically engineered for maximum-volume applications requiring the absolute highest level of chemical resistance and sanitary standards, making it the ideal solution for large-scale pharmaceutical manufacturing, aggressive chemical processing, and high-capacity ultra-pure fluid handling where maximum chemical compatibility and throughput are paramount.
