1780860000 - Weidmuller Single-Level Bolt DIN Rail Terminal-Block, 50 mm² (150000mA / 1kV)

1780860000 - Weidmuller Single-Level Bolt DIN Rail Terminal-Block, 50 mm² (150000mA / 1kV)

SKU1780860000BrandWeidmuller
AED 51.00
AED 51.00
Sale Sold out
Shipping calculated at checkout.

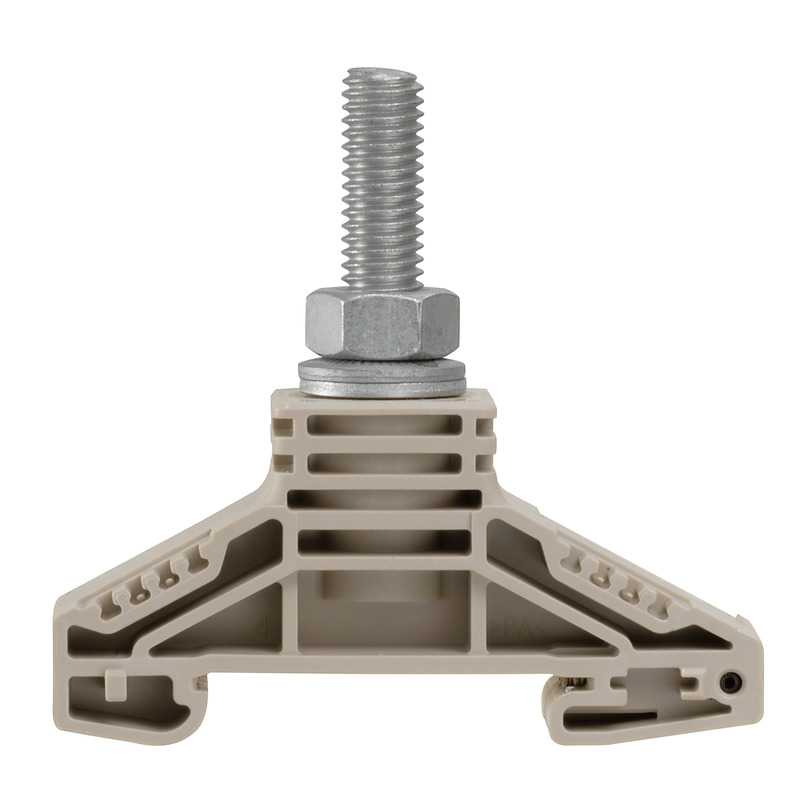

The 1780860000 is a reliable Single-level DIN rail terminal block manufactured by Weidmuller, part of the WF8 series. Featuring a Bolt connection method, this terminal block accepts cables up to 50 mm² (14 – 0 AWG) and is rated for 150000mA at 1kV. Its Dark-Beige colour-coded housing enables quick circuit identification during installation and maintenance. Designed for snap-on DIN rail mounting, it provides a secure, vibration-resistant wiring point for power distribution, signal routing, and grounding applications in industrial control panels and switchgear assemblies.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Weidmuller
  • Series: WF8
  • Colour: Dark-Beige
  • Termination Method: Bolt
  • Voltage Rating: 1kV
  • Cable CSA: 50 mm²
  • Number of Levels: Single
  • American Wire Gauge: 14 – 0 AWG
  • Current Rating: 150000mA
  • Maximum Operating Temperature: 120 °C
  • Minimum Operating Temperature: -50 °C
  • Standards Met: CE, CSA, UKCA, UR
  • Model Number: WF 8
