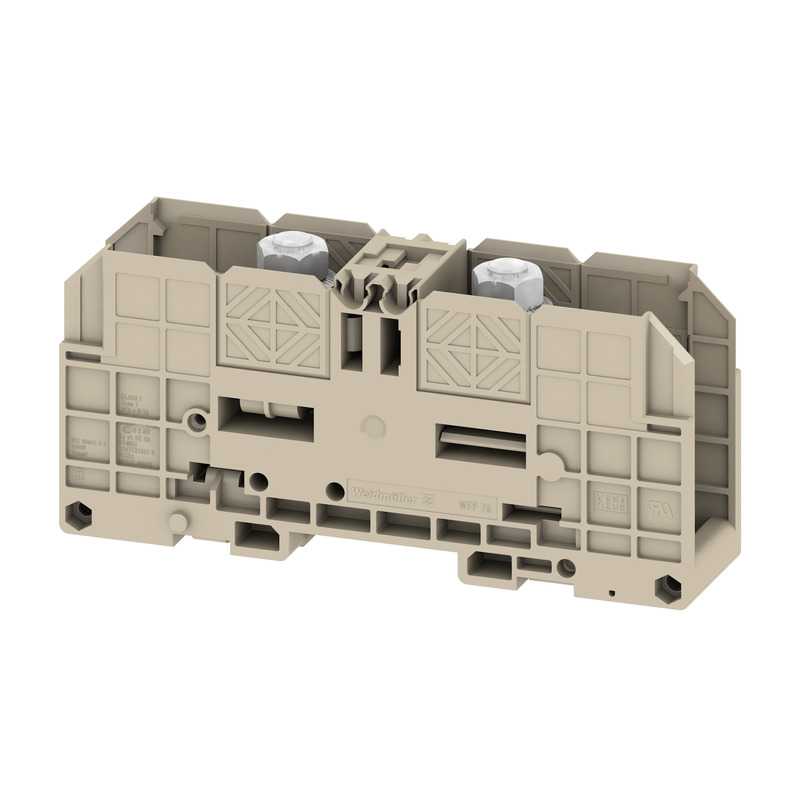

1028400000 - Weidmuller Single-Level Bolt DIN Rail Terminal-Block, 70 mm² (232000mA / 1kV)

1028400000 - Weidmuller Single-Level Bolt DIN Rail Terminal-Block, 70 mm² (232000mA / 1kV)

SKU1028400000BrandWeidmuller
AED 71.00
AED 71.00
Sale Sold out
Shipping calculated at checkout.

The 1028400000 is a reliable Single-level DIN rail terminal block manufactured by Weidmuller, part of the WFF series. Featuring a Bolt connection method, this terminal block accepts cables up to 70 mm² (14 – 00 AWG) and is rated for 232000mA at 1kV. Its Brown colour-coded housing enables quick circuit identification during installation and maintenance. Designed for snap-on DIN rail mounting, it provides a secure, vibration-resistant wiring point for power distribution, signal routing, and grounding applications in industrial control panels and switchgear assemblies.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Weidmuller
  • Series: WFF
  • Colour: Brown
  • Termination Method: Bolt
  • Voltage Rating: 1kV
  • Cable CSA: 70 mm²
  • Number of Levels: Single
  • American Wire Gauge: 14 – 00 AWG
  • Current Rating: 232000mA
  • Maximum Operating Temperature: 120 °C
  • Minimum Operating Temperature: -50 °C
  • Fused: No
  • Hazardous Area Certification: ATEX
  • Standards Met: CSA
