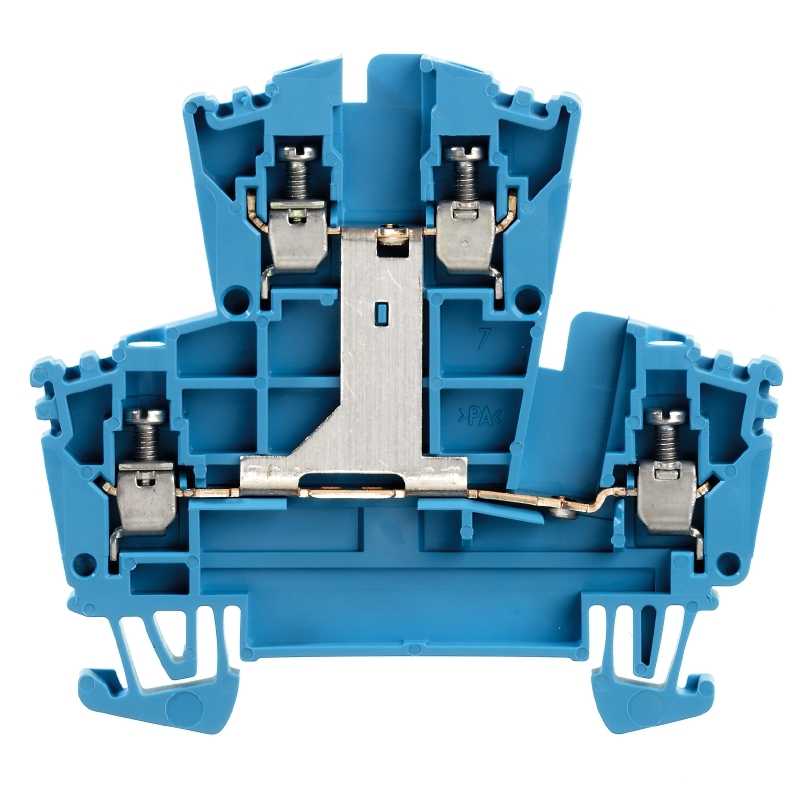

1022380000 - Weidmuller Double-Level Screw DIN Rail Terminal-Block, 4 mm² (32000mA / 400V)

1022380000 - Weidmuller Double-Level Screw DIN Rail Terminal-Block, 4 mm² (32000mA / 400V)

SKU1022380000BrandWeidmuller
AED 101.00
AED 101.00
Sale Sold out
Shipping calculated at checkout.

The 1022380000 is a reliable Double-level DIN rail terminal block manufactured by Weidmuller in Czech-Republic, part of the W series. Featuring a Screw connection method, this terminal block accepts cables up to 4 mm² (30 – 12 AWG) and is rated for 32000mA at 400V. Its Blue colour-coded housing enables quick circuit identification during installation and maintenance. Designed for snap-on DIN rail mounting, it provides a secure, vibration-resistant wiring point for power distribution, signal routing, and grounding applications in industrial control panels and switchgear assemblies.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Weidmuller
  • Series: W
  • Colour: Blue
  • Termination Method: Screw
  • Voltage Rating: 400V
  • Cable CSA: 4 mm²
  • Number of Levels: Double
  • American Wire Gauge: 30 – 12 AWG
  • Current Rating: 32000mA
  • Maximum Operating Temperature: 130 °C
  • Minimum Operating Temperature: -60 °C
  • Fused: No
  • Hazardous Area Certification: ATEX / IECEx
  • Pitch: 5.1 mm
  • Standards Met: CE, RoHS Compliant
