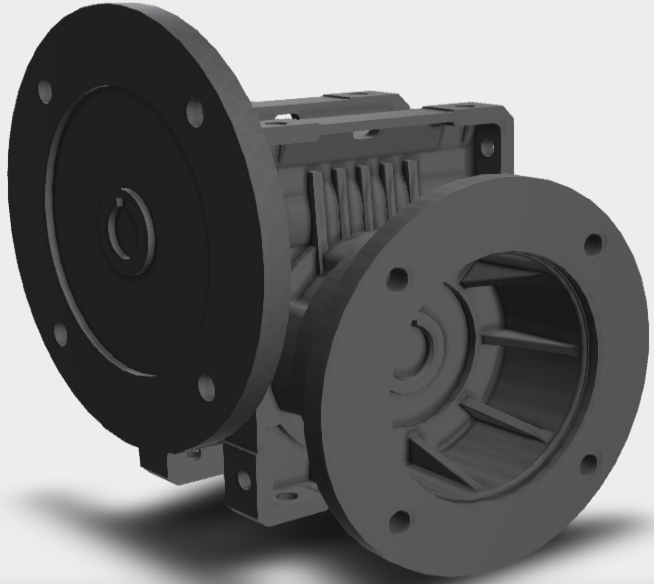

Bonfiglioli W 86 UFC46 P90 B5 V6 - Worm Gearboxes, 46 Ratio (35 Mm Shaft)

Bonfiglioli W 86 UFC46 P90 B5 V6 - Worm Gearboxes, 46 Ratio (35 Mm Shaft)

SKUW 86 UFC46 P90 B5 V6BrandBonfiglioli
AED 1,665.00
AED 1,665.00
Sale Sold out
Shipping calculated at checkout.

The W 86 UFC46 P90 B5 V6 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 46 gear ratio and a maximum output torque of 440 Nm, this Worm Reduction Gearbox configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 35 Mm shaft diameter, supports a maximum speed of 30 RPM, and is optimized for a 2.00 Hp / 1.50 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
46
Gearbox Type
Worm Reduction Gearbox
Maximum Output Torque
440 Nm
Shaft Diameter
35 Mm
Power Rating
2.00 Hp / 1.50 Kw
Maximum Speed
30 RPM
Input Speed
1400
ParameterValue
Housing Type
Aluminium
Motor Coupling
With Motor Mounting Flange Adapter
Lubrication
Oil Filled
Mounting Version
Universal Mounting + Short Flange
Input Shaft Diameter
24 Mm
Service Factor
1
Warranty
12 Months
