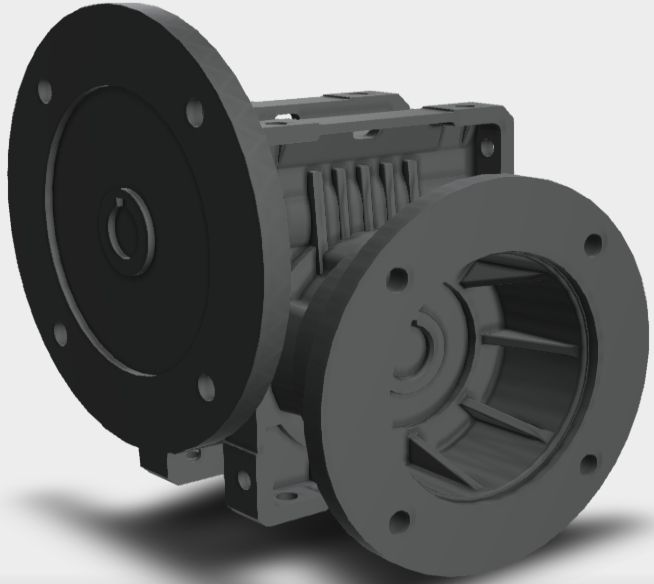

Bonfiglioli W 86 UF23 P90 B5 B7 - Worm Gearboxes, 23 Ratio (35 Mm Shaft)

Bonfiglioli W 86 UF23 P90 B5 B7 - Worm Gearboxes, 23 Ratio (35 Mm Shaft)

SKUW 86 UF23 P90 B5 B7BrandBonfiglioli
AED 1,665.00
AED 1,665.00
Sale Sold out
Shipping calculated at checkout.

The W 86 UF23 P90 B5 B7 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 23 gear ratio and a maximum output torque of 440 Nm, this Worm Reduction Gearbox configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 35 Mm shaft diameter, supports a maximum speed of 60.87 RPM, and is optimized for a 2.00 Hp / 1.50 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
23
Gearbox Type
Worm Reduction Gearbox
Maximum Output Torque
440 Nm
Shaft Diameter
35 Mm
Power Rating
2.00 Hp / 1.50 Kw
Maximum Speed
60.87 RPM
Input Speed
1400
Housing Type
Aluminium
ParameterValue
Motor Frame Type
Iec Standard Frame 90 B5
Motor Coupling
With Motor Mounting Flange Adapter
Lubrication
Oil Filled
Mounting Version
Universal Mounting + Flange
Input Shaft Diameter
24 Mm
Output Shaft Type (Alt)
Hollow Output With Keyway
Efficiency
0.82
Service Factor
1
Warranty
12 Months
