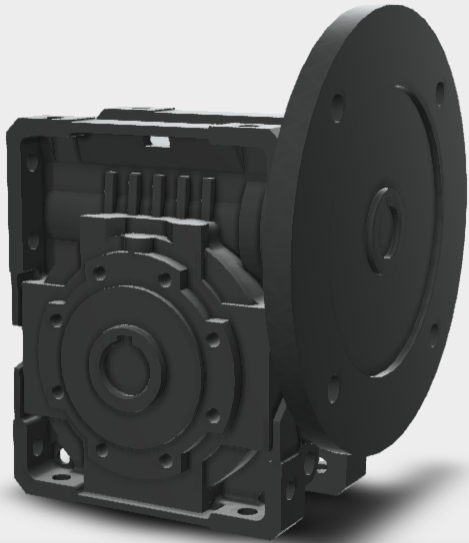

Bonfiglioli W 86 U15 P100 B14 B6 - Worm Gearboxes, 15 Ratio (35 Mm Shaft)

Bonfiglioli W 86 U15 P100 B14 B6 - Worm Gearboxes, 15 Ratio (35 Mm Shaft)

SKUW 86 U15 P100 B14 B6BrandBonfiglioli
AED 1,574.00
AED 1,574.00
Sale Sold out
Shipping calculated at checkout.

The W 86 U15 P100 B14 B6 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 15 gear ratio and a maximum output torque of 440 Nm, this Worm Reduction Gearbox configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 35 Mm shaft diameter, supports a maximum speed of 93.33 RPM, and is optimized for a 3.00 Hp / 2.20 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
15
Gearbox Type
Worm Reduction Gearbox
Maximum Output Torque
440 Nm
Shaft Diameter
35 Mm
Power Rating
3.00 Hp / 2.20 Kw
Maximum Speed
93.33 RPM
Input Speed
1400
Housing Type
Aluminium
ParameterValue
Motor Frame Type
Iec Standard Frame 100 B14
Motor Coupling
With Motor Mounting Flange Adapter
Lubrication
Oil Filled
Mounting Version
Universal Mounting
Input Shaft Diameter
28 Mm
Output Shaft Type (Alt)
Hollow Output With Keyway
Efficiency
0.85
Service Factor
1
Warranty
12 Months
