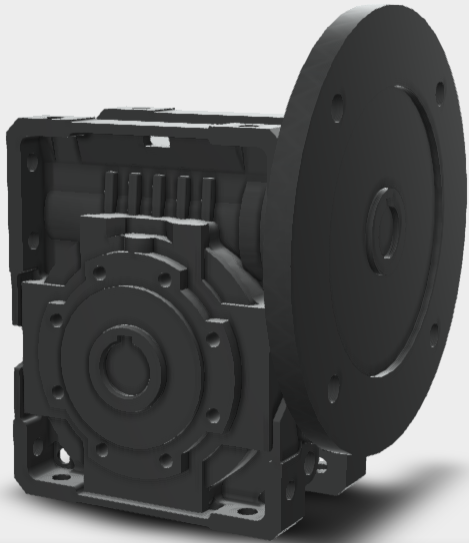

Bonfiglioli W 86 U100 P80 B5 V5 - Worm Gearboxes, 100 Ratio (35 Mm Shaft)

Bonfiglioli W 86 U100 P80 B5 V5 - Worm Gearboxes, 100 Ratio (35 Mm Shaft)

SKUW 86 U100 P80 B5 V5BrandBonfiglioli
AED 1,574.00
AED 1,574.00
Sale Sold out
Shipping calculated at checkout.

The W 86 U100 P80 B5 V5 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 100 gear ratio and a maximum output torque of 440 Nm, this Worm Reduction Gearbox configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 35 Mm shaft diameter, supports a maximum speed of 14 RPM, and is optimized for a 1.00 Hp/ 0.75 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
100
Gearbox Type
Worm Reduction Gearbox
Maximum Output Torque
440 Nm
Shaft Diameter
35 Mm
Power Rating
1.00 Hp/ 0.75 Kw
Maximum Speed
14 RPM
Input Speed
1400
ParameterValue
Housing Type
Aluminium
Motor Coupling
With Motor Mounting Flange Adapter
Lubrication
Oil Filled
Mounting Version
Universal Mounting
Input Shaft Diameter
19 Mm
Service Factor
1
Warranty
12 Months
