• Bonfiglioli - W 75 UFD2830 HS B8 RB
1 1

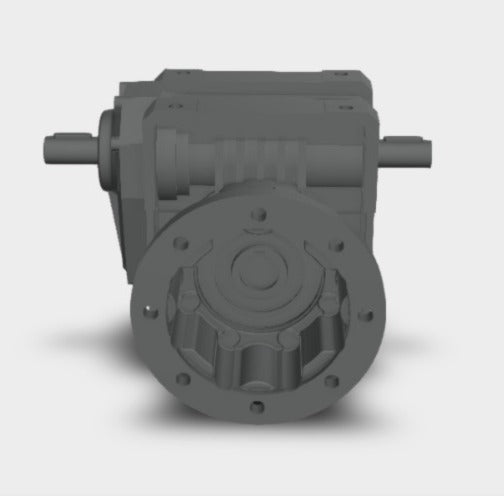

Bonfiglioli W 75 UFD2830 HS B8 RB - Worm Gearboxes, 30 Ratio (28 Mm Shaft)

Bonfiglioli W 75 UFD2830 HS B8 RB - Worm Gearboxes, 30 Ratio (28 Mm Shaft)

SKUW 75 UFD2830 HS B8 RBBrandBonfiglioli
AED 1,550.00
AED 1,550.00
Sale Sold out
Shipping calculated at checkout.

The W 75 UFD2830 HS B8 RB is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 30 gear ratio and a maximum output torque of 320 Nm, this Worm Reduction Gearbox configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 28 Mm shaft diameter, supports a maximum speed of 47 RPM, and is optimized for a 2.00 Hp / 1.50 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
30
Gearbox Type
Worm Reduction Gearbox
Maximum Output Torque
320 Nm
Shaft Diameter
28 Mm
Power Rating
2.00 Hp / 1.50 Kw
Maximum Speed
47 RPM
Input Speed
1400
ParameterValue
Housing Type
Aluminium
Motor Coupling
Via Chain Sprocket/Coupling/Belt Pulley
Lubrication
Oil Filled
Mounting Version
Universal Mounting + Flange
Input Shaft Diameter
19 Mm
Service Factor
1
Warranty
12 Months
