• Bonfiglioli - W 75 UFC80 P80 B5 B3
1 1

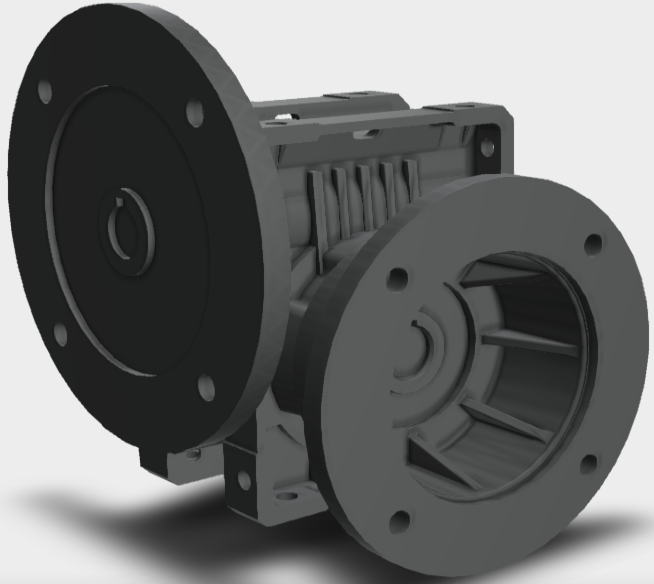

Bonfiglioli W 75 UFC80 P80 B5 B3 - Worm Gearboxes, 80 Ratio (30 Mm Shaft)

Bonfiglioli W 75 UFC80 P80 B5 B3 - Worm Gearboxes, 80 Ratio (30 Mm Shaft)

SKUW 75 UFC80 P80 B5 B3BrandBonfiglioli
AED 1,320.00
AED 1,320.00
Sale Sold out
Shipping calculated at checkout.

The W 75 UFC80 P80 B5 B3 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 80 gear ratio and a maximum output torque of 320 Nm, this Worm Reduction Gearbox configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 30 Mm shaft diameter, supports a maximum speed of 17.5 RPM, and is optimized for a 1.00 Hp/ 0.75 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
80
Gearbox Type
Worm Reduction Gearbox
Maximum Output Torque
320 Nm
Shaft Diameter
30 Mm
Power Rating
1.00 Hp/ 0.75 Kw
Maximum Speed
17.5 RPM
Input Speed
1400
Housing Type
Aluminium
ParameterValue
Motor Frame Type
Iec Standard Frame 80 B5
Motor Coupling
With Motor Mounting Flange Adapter
Lubrication
Oil Filled
Mounting Version
Universal Mounting + Short Flange
Input Shaft Diameter
19 Mm
Output Shaft Type (Alt)
Hollow Output With Keyway
Efficiency
0.59
Service Factor
1
Warranty
12 Months
