• Bonfiglioli - W 63 UF64 HS B3
1 1

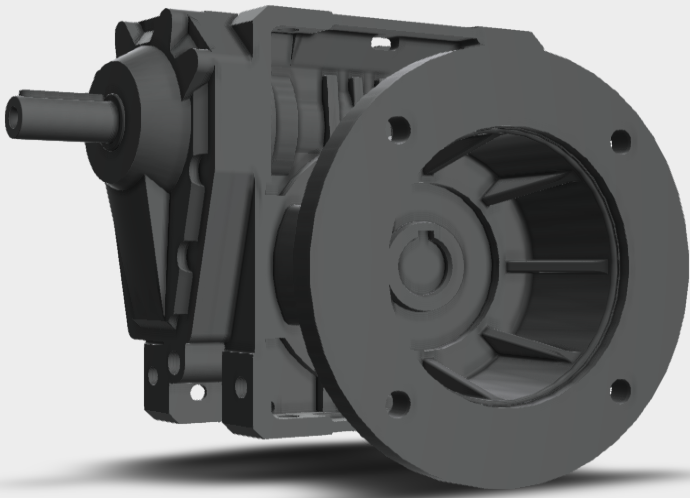

Bonfiglioli W 63 UF64 HS B3 - Worm Gearboxes, 64 Ratio (25 Mm Shaft)

Bonfiglioli W 63 UF64 HS B3 - Worm Gearboxes, 64 Ratio (25 Mm Shaft)

SKUW 63 UF64 HS B3BrandBonfiglioli
AED 1,007.00
AED 1,007.00
Sale Sold out
Shipping calculated at checkout.

The W 63 UF64 HS B3 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 64 gear ratio and a maximum output torque of 190 Nm, this Worm Reduction Gearbox configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 25 Mm shaft diameter, supports a maximum speed of 21.88 RPM, and is optimized for a 0.50 Hp / 0.37 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
64
Gearbox Type
Worm Reduction Gearbox
Maximum Output Torque
190 Nm
Shaft Diameter
25 Mm
Power Rating
0.50 Hp / 0.37 Kw
Maximum Speed
21.88 RPM
Input Speed
1400
Housing Type
Aluminium
ParameterValue
Motor Frame Type
Hs Solid Input Shaft
Motor Coupling
Via Chain Sprocket/Coupling/Belt Pulley
Lubrication
Oil Filled
Mounting Version
Universal Mounting + Flange
Input Shaft Diameter
14 Mm
Output Shaft Type (Alt)
Hollow Output With Keyway
Efficiency
0.61
Service Factor
1
Warranty
12 Months
