• Bonfiglioli - W 63 U64 P71 B14 V5
1 1

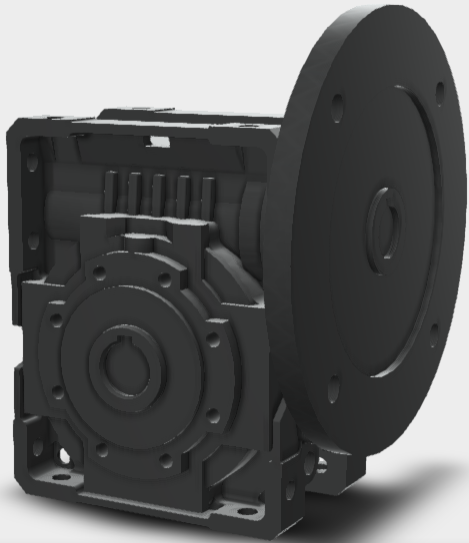

Bonfiglioli W 63 U64 P71 B14 V5 - Worm Gearboxes, 64 Ratio (25 Mm Shaft)

Bonfiglioli W 63 U64 P71 B14 V5 - Worm Gearboxes, 64 Ratio (25 Mm Shaft)

SKUW 63 U64 P71 B14 V5BrandBonfiglioli
AED 988.00
AED 988.00
Sale Sold out
Shipping calculated at checkout.

The W 63 U64 P71 B14 V5 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 64 gear ratio and a maximum output torque of 190 Nm, this Worm Reduction Gearbox configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 25 Mm shaft diameter, supports a maximum speed of 22 RPM, and is optimized for a 0.50Hp/0.37Kw power rating, providing continuous, reliable performance for your automated systems.

View full details
ParameterValue
Brand
Bonfiglioli
Gear Ratio
64
Gearbox Type
Worm Reduction Gearbox
Maximum Output Torque
190 Nm
Shaft Diameter
25 Mm
Power Rating
0.50Hp/0.37Kw
Maximum Speed
22 RPM
Input Speed
1400
ParameterValue
Housing Type
Aluminium
Motor Coupling
With Motor Mounting Flange Adapter
Lubrication
Oil Filled
Mounting Version
Universal Mounting
Input Shaft Diameter
14 Mm
Service Factor
1
Warranty
12 Months
