• Bonfiglioli - W 110 UFC64 P100 B5 B3
1 1

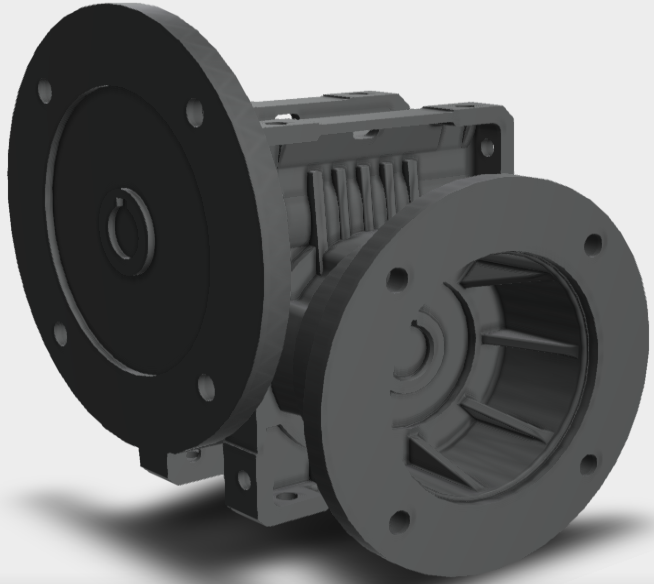

Bonfiglioli W 110 UFC64 P100 B5 B3 - Worm Gearboxes, 64 Ratio (42 Mm Shaft)

Bonfiglioli W 110 UFC64 P100 B5 B3 - Worm Gearboxes, 64 Ratio (42 Mm Shaft)

SKUW 110 UFC64 P100 B5 B3BrandBonfiglioli
AED 2,694.00
AED 2,694.00
Sale Sold out
Shipping calculated at checkout.

The W 110 UFC64 P100 B5 B3 is a high-performance Worm Gearboxes manufactured by Bonfiglioli, engineered for robust power transmission in demanding industrial applications. Delivering a precise 64 gear ratio and a maximum output torque of 830 Nm, this Worm Reduction Gearbox configuration ensures efficient mechanical operation and superior load management. Designed for seamless integration, it features a 42 Mm shaft diameter, supports a maximum speed of 21.88 RPM, and is optimized for a 3.00 Hp / 2.20 Kw power rating, providing continuous, reliable performance for your automated systems.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

  • Brand: Bonfiglioli
  • Gear Ratio: 64
  • Gearbox Type: Worm Reduction Gearbox
  • Maximum Output Torque: 830 Nm
  • Shaft Diameter: 42 Mm
  • Power Rating: 3.00 Hp / 2.20 Kw
  • Maximum Speed: 21.88 RPM
  • Input Speed: 1400
  • Housing Type: Aluminium
  • Motor Frame Type: Iec Standard Frame 100 B5
  • Motor Coupling: With Motor Mounting Flange Adapter
  • Lubrication: Without Oil
  • Mounting Version: Universal Mounting + Short Flange
  • Input Shaft Diameter: 28 Mm
  • Output Shaft Type (Alt): Hollow Output With Keyway
  • Efficiency: 0.7
  • Service Factor: 1
  • Warranty: 12 Months
