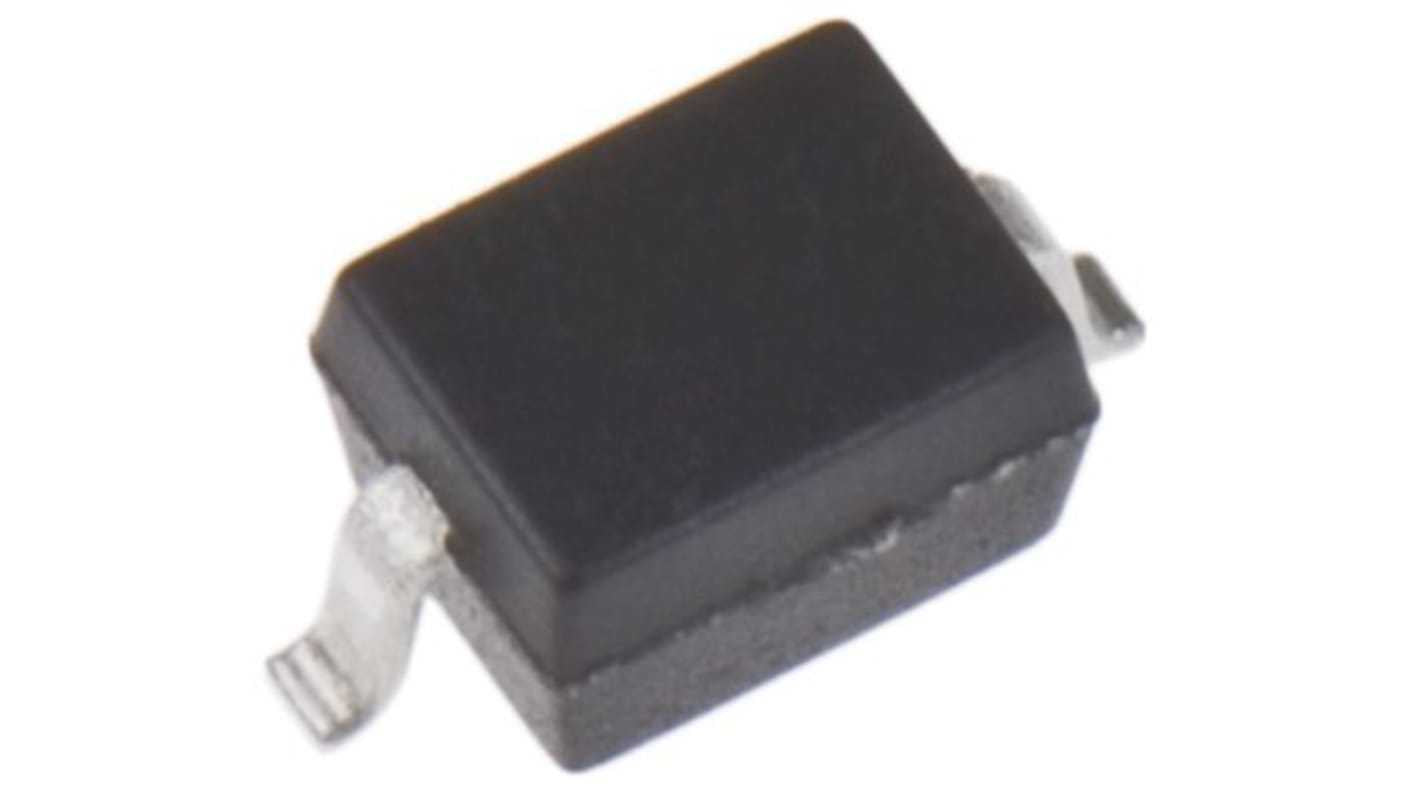

SD103AWS-HE3-08 - Vishay Schottky Single, 40 V 350 mA (SOD-323)

SD103AWS-HE3-08 - Vishay Schottky Single, 40 V 350 mA (SOD-323)

SKUSD103AWS-HE3-08BrandVishay
AED 0.37
AED 0.37
Sale Sold out
Shipping calculated at checkout.

The SD103AWS-HE3-08 is a precision-engineered Schottky from Vishay, utilising Schottky technology in a Single configuration. Rated at 40 V peak reverse repetitive voltage and 350 mA continuous forward current, this Small-Signal provides efficient rectification with a 600 mV forward voltage drop in a compact SOD-323 Surface-Mount package with 2 pins. Featuring 1 element(s) per chip, it is designed for power supply rectification, reverse polarity protection, freewheeling, and OR-ing applications in industrial, automotive, and telecommunications circuit designs.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Vishay
  • Automotive Standard: AEC-Q101
  • Dimensions: 1.95 x 1.5 x 0.95 mm
  • Diode Configuration: Single
  • Diode Technology: Schottky
  • Diode Type: Schottky
  • Height: 0.95 mm
  • Length: 1.95 mm
  • Maximum Continuous Forward Current: 350 mA
  • Maximum Forward Voltage Drop: 600 mV
  • Maximum Operating Temperature: 125 °C
  • Minimum Operating Temperature: -55 °C
  • Mounting Type: Surface-Mount
  • Number of Elements per Chip: 1
  • Package Type: SOD-323
  • Peak Non-Repetitive Forward Surge Current: 2000 mA
  • Peak Reverse Recovery Time: 10 ns
  • Peak Reverse Repetitive Voltage: 40 V
  • Pin Count: 2
  • Power Dissipation: 200 mW
  • Rectifier Type: Small-Signal
  • Width: 1.5 mm
