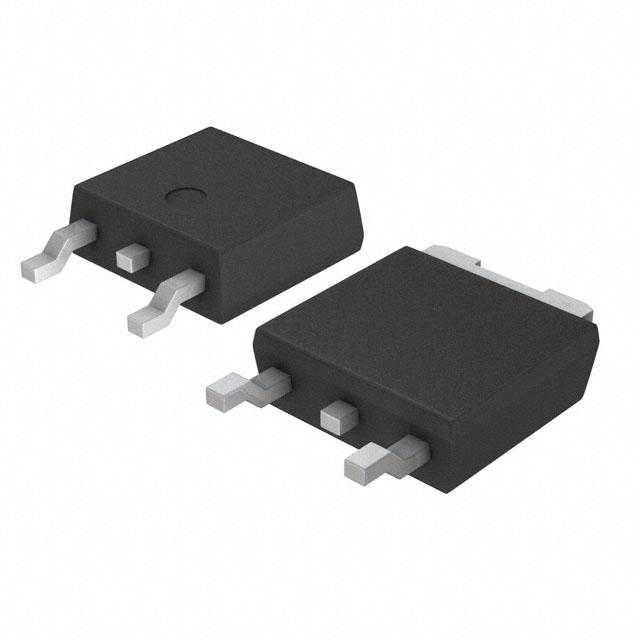

Vishay MOSFETs IRFR9020TRPBF

Vishay MOSFETs IRFR9020TRPBF

SKUIRFR9020TRPBFBrandVishay
Regular price AED 7.58
Regular price Sale price AED 7.58
Sale Sold out
Shipping calculated at checkout.

Vishay, IRFR9020TRPBF, Vishay Siliconix

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Vishay
  • Channel Type: P
  • Maximum Continuous Drain Current: 9.9 A
  • Maximum Drain Source Voltage: 50 V
  • Package Type: DPAK (TO-252)
  • Mounting Type: Surface Mount
  • Pin Count: 3
  • Maximum Drain Source Resistance: 280 m?
  • Channel Mode: Enhancement
  • Minimum Gate Threshold Voltage: 2V
  • Maximum Power Dissipation: 42 W
  • Transistor Configuration: Single
  • Maximum Gate Source Voltage: -20 V, +20 V
  • Width: 6.22mm
  • Transistor Material: Si
  • Number of Elements per Chip: 1
  • Length: 6.73mm
  • Typical Gate Charge @ Vgs: 9.4 nC @ 10 V
  • Maximum Operating Temperature: +150 °C
  • Height: 2.38mm
  • Minimum Operating Temperature: -55 °C
  • Country of Origin: Malaysia
