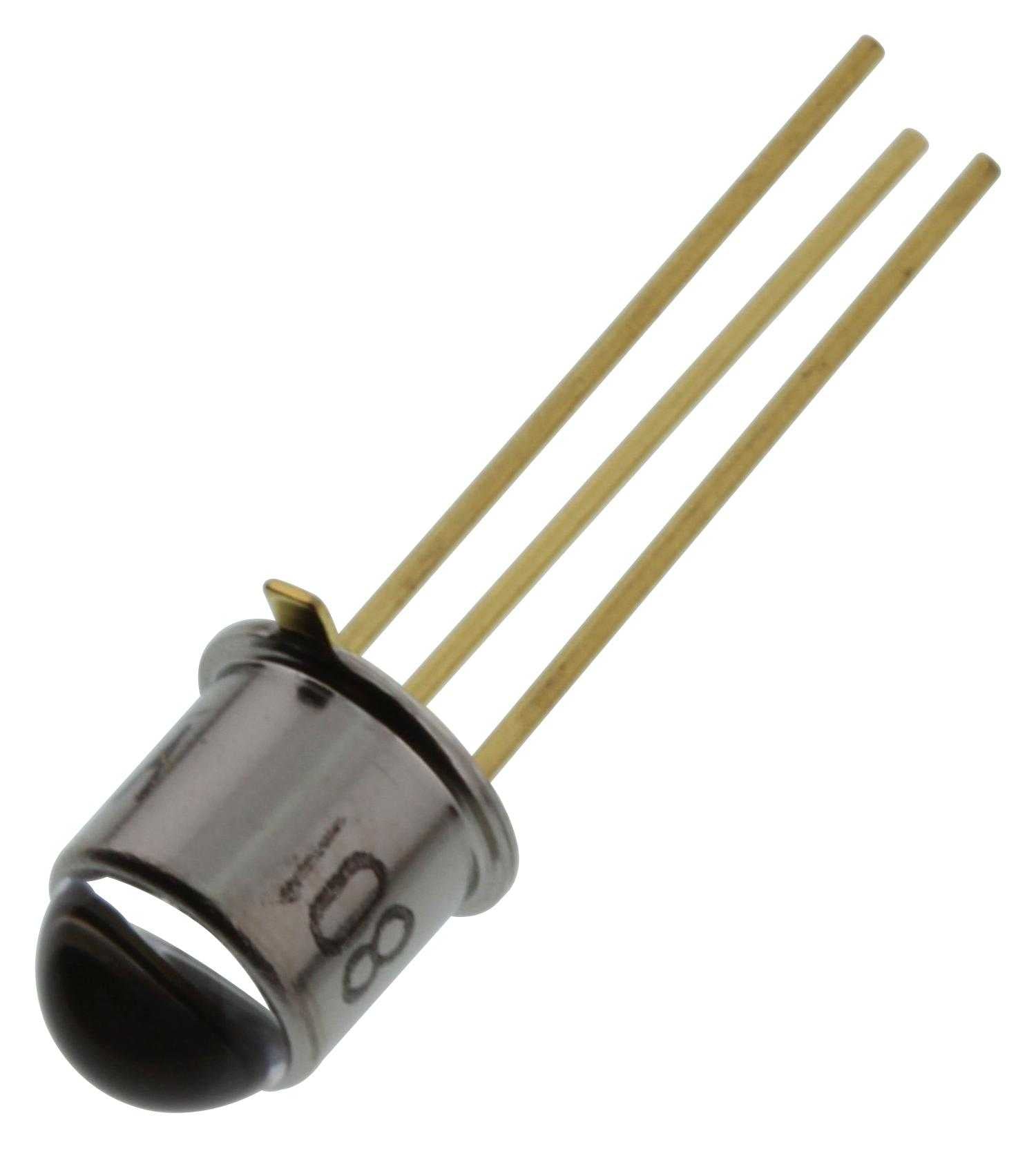

Vishay Phototransistors BPW77NB

Vishay Phototransistors BPW77NB

SKUBPW77NBBrandVishay
Regular price AED 12.94
Regular price Sale price AED 12.94
Sale Sold out
Shipping calculated at checkout.

Vishay, BPW77NB Vishay, 20 IR Visible Light Phototransistor, Through Hole 3-Pin TO-18 package

View full details
  • Brand: Vishay
  • Spectrums Detected: Infrared, Visible Light
  • Typical Fall Time: 5µs
  • Typical Rise Time: 6µs
  • Number of Channels: 1
  • Maximum Light Current: 20000µA
  • Maximum Dark Current: 100nA
  • Angle of Half Sensitivity: 20 °
  • Polarity: NPN
  • Number of Pins: 3
  • Mounting Type: Through Hole
  • Package Type: TO-18
  • Dimensions: 5.5 x 5.5 x 6.15mm
  • Collector Current: 50mA
  • Maximum Wavelength Detected: 1080nm
  • Spectral Range of Sensitivity: 450 ? 1080 nm
  • Minimum Wavelength Detected: 450nm
  • Length: 5.5mm
  • Width: 5.5mm
  • Height: 6.15mm
