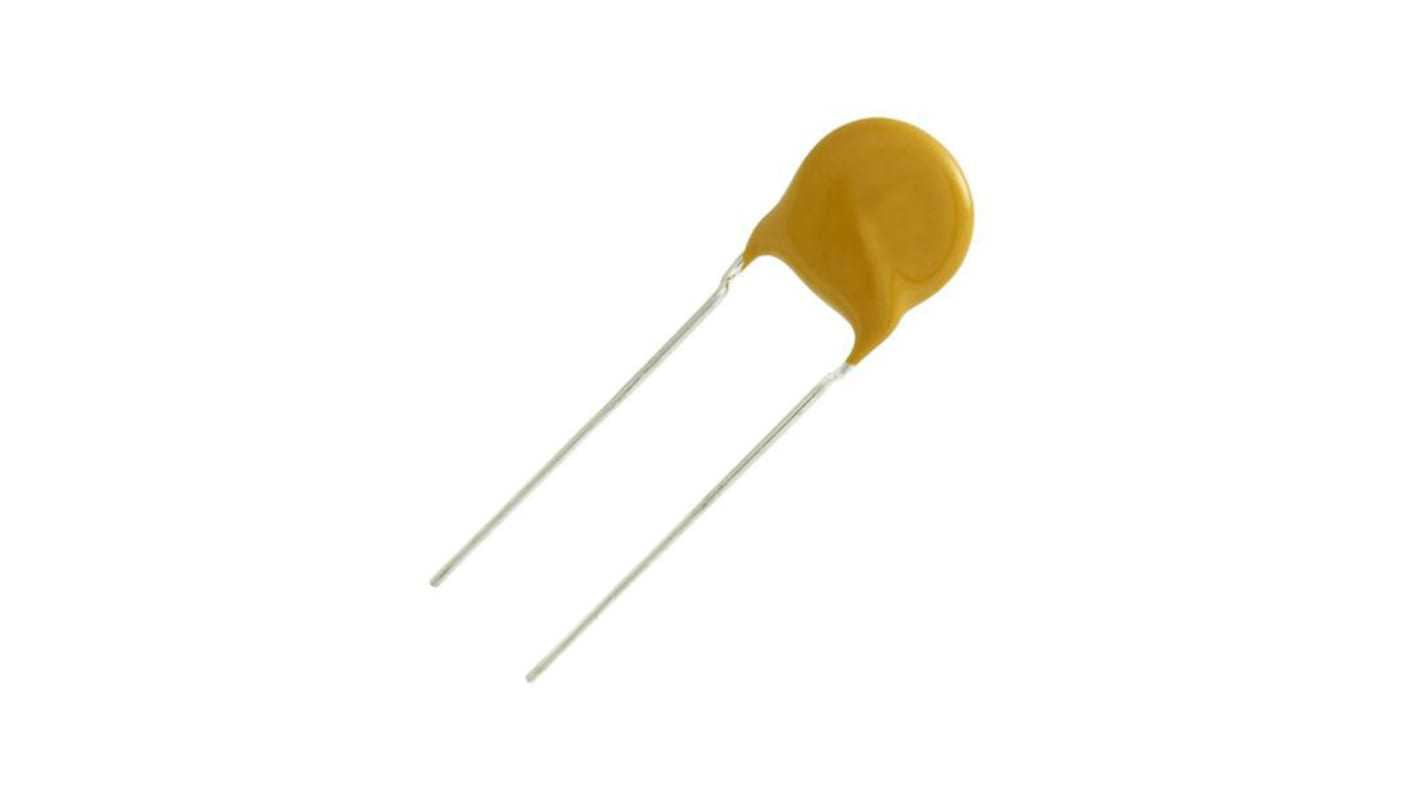

Vishay Single Layer Ceramic Capacitors 561R10TCCV56

Vishay Single Layer Ceramic Capacitors 561R10TCCV56

SKU561R10TCCV56BrandVishay
Regular price AED 4.16
Regular price Sale price AED 4.16
Sale Sold out
Shipping calculated at checkout.

Vishay, Single Layer Ceramic Capacitor SLCC 5.6pF 1kV dc 5 C0G, NP0 Dielectric, 561R, Through Hole 105C Max Op.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Vishay
  • Capacitance: 5.6pF
  • Voltage: 1kV dc
  • Mounting Type: Through Hole
  • Series: 561R
  • Tolerance: ±5%
  • Dielectric: C0G, NP0
  • Diameter: 6.4mm
  • Depth: 4mm
  • Dimensions: 6.4 (Dia.) x 38.4mm
  • Dielectric Material Family: Ceramic
  • Maximum Operating Temperature: +105°C
  • Minimum Operating Temperature: -55°C
  • Terminal Type: Radial
  • Capacitor Family: Single Layer
