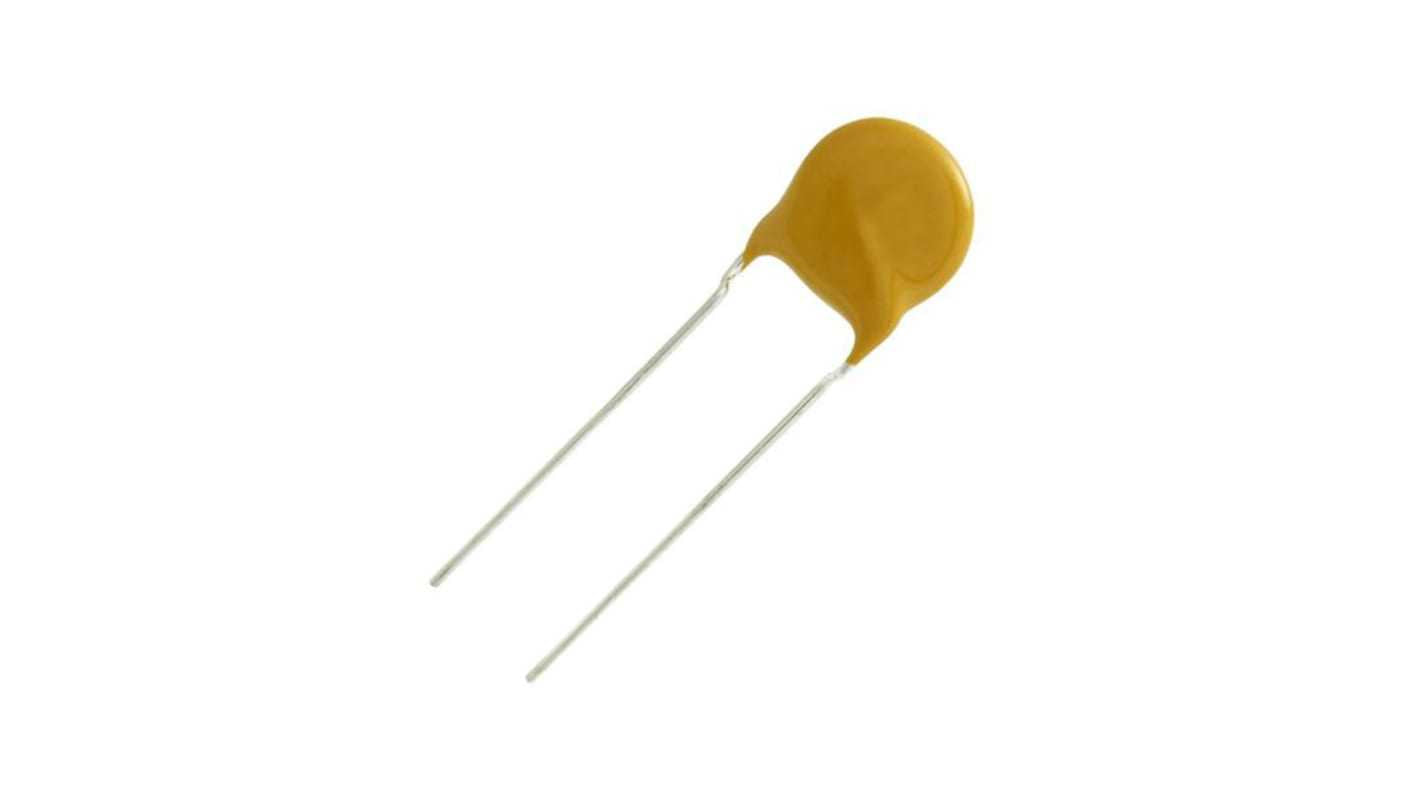

Vishay Single Layer Ceramic Capacitors 561R10TCCQ15

Vishay Single Layer Ceramic Capacitors 561R10TCCQ15

SKU561R10TCCQ15BrandVishay
Regular price AED 4.82
Regular price Sale price AED 4.82
Sale Sold out
Shipping calculated at checkout.

Vishay, Single Layer Ceramic Capacitor SLCC 15pF 1kV dc 5 C0G, NP0 Dielectric, 561R, Through Hole 105C Max Op.

View full details

Buying for a project?

Custom pricing on bulk orders & project quotes

Our specialists confirm compatibility, check stock across our brand network, and respond with a formal quote within one business day.

Talk to a Specialist
  • Brand: Vishay
  • Capacitance: 15pF
  • Voltage: 1kV dc
  • Mounting Type: Through Hole
  • Series: 561R
  • Tolerance: ±5%
  • Dielectric: C0G, NP0
  • Diameter: 6.4mm
  • Depth: 4mm
  • Dimensions: 6.4 (Dia.) x 38.4mm
  • Maximum Operating Temperature: +105°C
  • Minimum Operating Temperature: -55°C
  • Terminal Type: Radial
  • Capacitor Family: Single Layer
  • Dielectric Material Family: Ceramic
